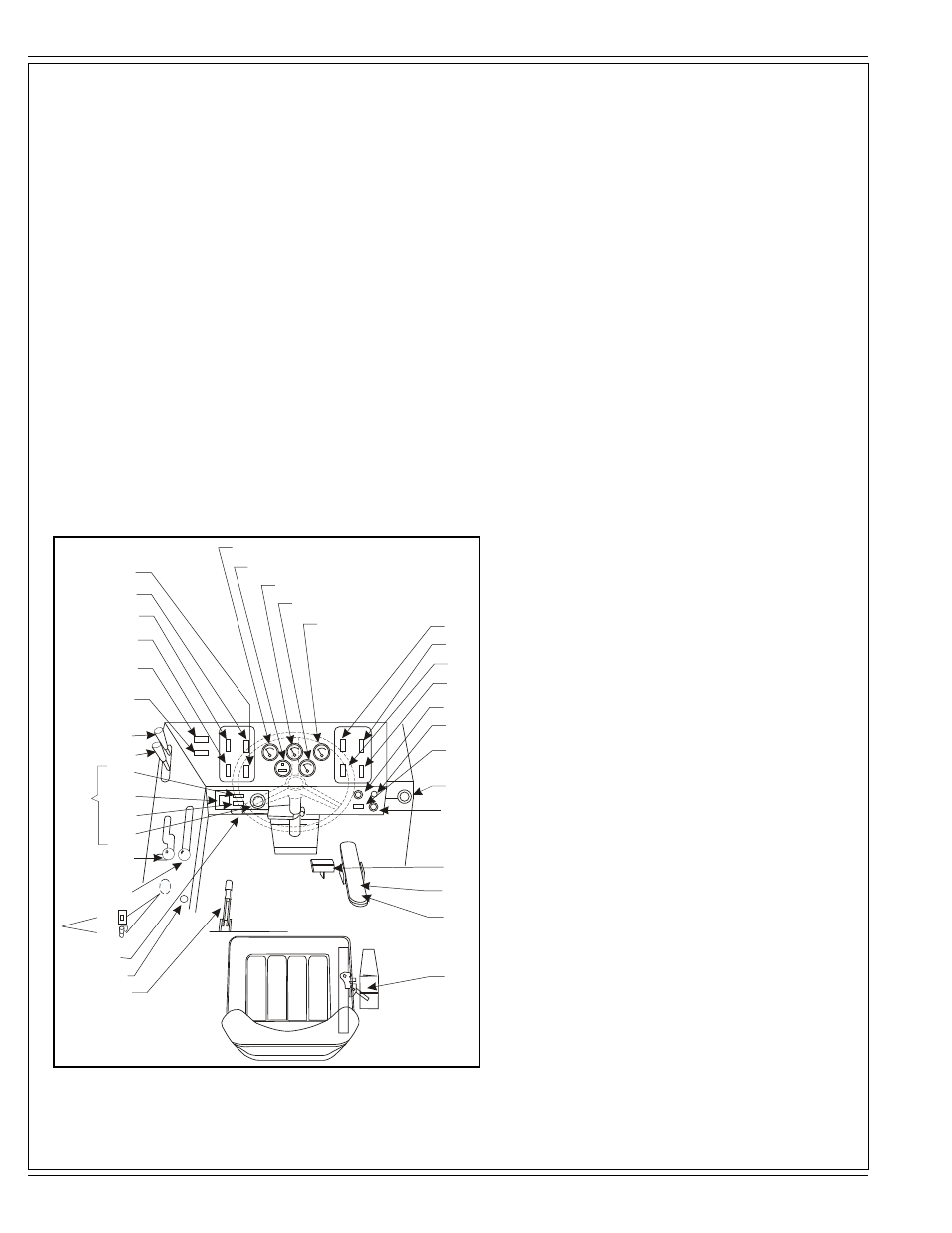

OPERATIONS OF CONTROLS AND GAUGES
A Water Temperature Gauge
B Hour
Meter
C Fuel Gauge
D Oil Pressure Gauge
E Volt
Meter
F Main Broom Switch
G Side Broom Switch
H Dust Control Switch
I
Filter Shaker Switch
J Ignition Switch
K Light Switch
L Glow Plug Switch (Diesel Only)
M Side Broom Lift
N Horn Push Button
O Foot
Brake
P Backup Alarm Switch
Q Accelerator & Directional Control Pedal
R Seat
Adjustment
S Parking Brake
T Check Engine Light (Gasoline/LP)
U Turn
Signal
V Throttle Diesel
W Throttle Gasoline/LP
X Solution Control
Y Sweeping Broom Lift Control
Z ESP
Option
AA Detergent Flow Knob
AB Detergent Low Light
AC Recycling System Switch
AD Solution High Light
AE Hopper Dump door
AF Hopper Lift
AG Low Solution Warning Light
AH High Recovery Warning Light
AJ Brush Pressure Switch
AK Scrub Brush Lift Switch
AL Squeegee Switch
AM Brush Rotation Switch
AM
AL
AK
AJ
AH
AG
AF
AE
AD
AC
AB
AA
Y
X
U
T
S
F
G
H
I
J
K
L
M
N
O
P
Q
R
A
B
C
D
E
W
V
Z
IGNITION SWITCH
The keyed Ignition Switch (J) is located to the right of the steering
column on the front face of the instrument console. It has four
positions.
1. The key turned to the center “OFF” position will shut off
the engine. The following items can be activated in the “OFF”
position.
(a.)
Horn
(b.) Light Options
2. The key turned to the right “IGN/ON” position will allow
all the following items to be activated (but will NOT start the
engine):
(c.)
Horn
(d.) Light Options
(e.) Turn Signals
(f.) Instrument Panel Gauges
3. The key turned to the far right “START” position will start
the engine. This position is a momentary position. The key will
revert to the “IGN/ON” position when it is released.
LIGHT SWITCH
The Light Switch (K) is located above the horn button to the right
of the steering wheel. It will work various light options that are
available for this machine, such as:
* HEAD LIGHTS
* TAIL LIGHTS
* INSTRUMENT LIGHTS
All gauges, with the exception of the hour meter, can have an
optional internal instrument light.
