OPERATIONS OF CONTROLS AND GAUGES
ACCELERATOR & DIRECTIONAL CONTROL PEDAL
See Figure 2. The Accelerator and Directional Control Pedal (Q) is located on the fl oor of the driver compartment, to the right of the brake pedal.
The accelerator and directional control pedal controls machine direction and travel speed.
1. Put foot pressure on the upper portion of the pedal (b). The machine will move forward.
2. Increase the foot pressure on the upper portion of the pedal to increase the forward speed.
3. Put foot pressure on the lower portion of the pedal (c). The machine will move in reverse.
4. Increase the foot pressure on the lower portion of the pedal to increase the reverse speed.
5. To stop the machine, put light foot pressure on the opposite end of the accelerator and directional control pedal. If the machine is moving
forward put light foot pressure on the lower portion of the pedal. If the machine is moving in reverse put light foot pressure on the upper
portion of the pedal.
BACKUP ALARM SWITCH
See Figure 2. The Backup Alarm Switch (P) is located under the lower section of the accelerator and directional control pedal and operates the
backup alarm. The alarm makes a loud audible noise when the machine is being driven in reverse.
SEAT ADJUSTMENT
See Figure 2. The Seat Adjustment Lever (R) is located on the right of the seat. This lever allows the seat to be adjusted forward or back when the
lever is moved.
b
c

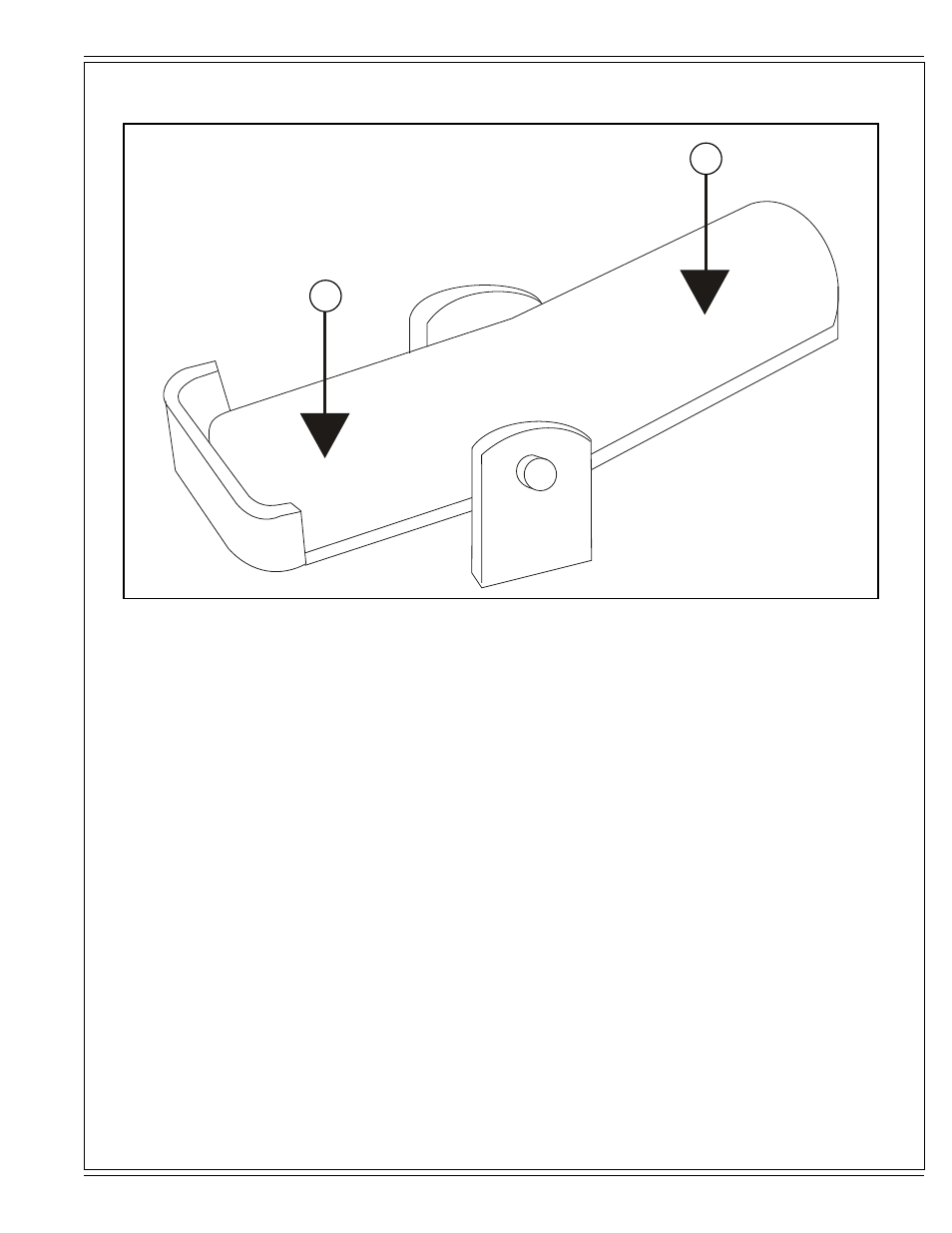

FIGURE 10
ENGLISH / A-15
