OPERATIONS OF CONTROLS AND GAUGES
WATER TEMPERATURE GAUGE
The Water Temperature Gauge (A) is located on the console panel above the steering wheel in the gauge cluster. The gauge is mechanical and
activated by a sender in the engine. It displays the engine coolant temperature in Fahrenheit.
HOUR METER
The Hour Meter (B) is located on the console panel above the steering wheel in the gauge cluster. This meter is activated when the engine begins
running. The meter indicates actual “run” time of the machine. The meter can used to determine machine maintenance intervals.
FUEL GAUGE
The Fuel Gauge (C) is located on the console panel above the steering wheel in the gauge cluster. This gauge indicates the level of fuel contained
in the fuel tank.
OIL PRESSURE GAUGE
The Oil Pressure Gauge (D) is located on the console panel above the steering wheel in the gauge cluster. The gauge is mechanical and activated
by a sender in the engine. It displays the engine oil pressure in PSI.
VOLT METER
The Volt Meter (E) is located on the console panel above the steering wheel in the gauge cluster. The gauge indicates the charge level of the
battery.
B D
C E A
WATER
TEMP
100
170
°F
195
220
280 77 91 104
138 °C
0
1/4
1/2
FUEL BATTERY
10
12 14
16
- +
HOURS
0 0 0 0 1
1/10
PSI
0
20
40
60
80
278
553 kPa
OIL
PRESS

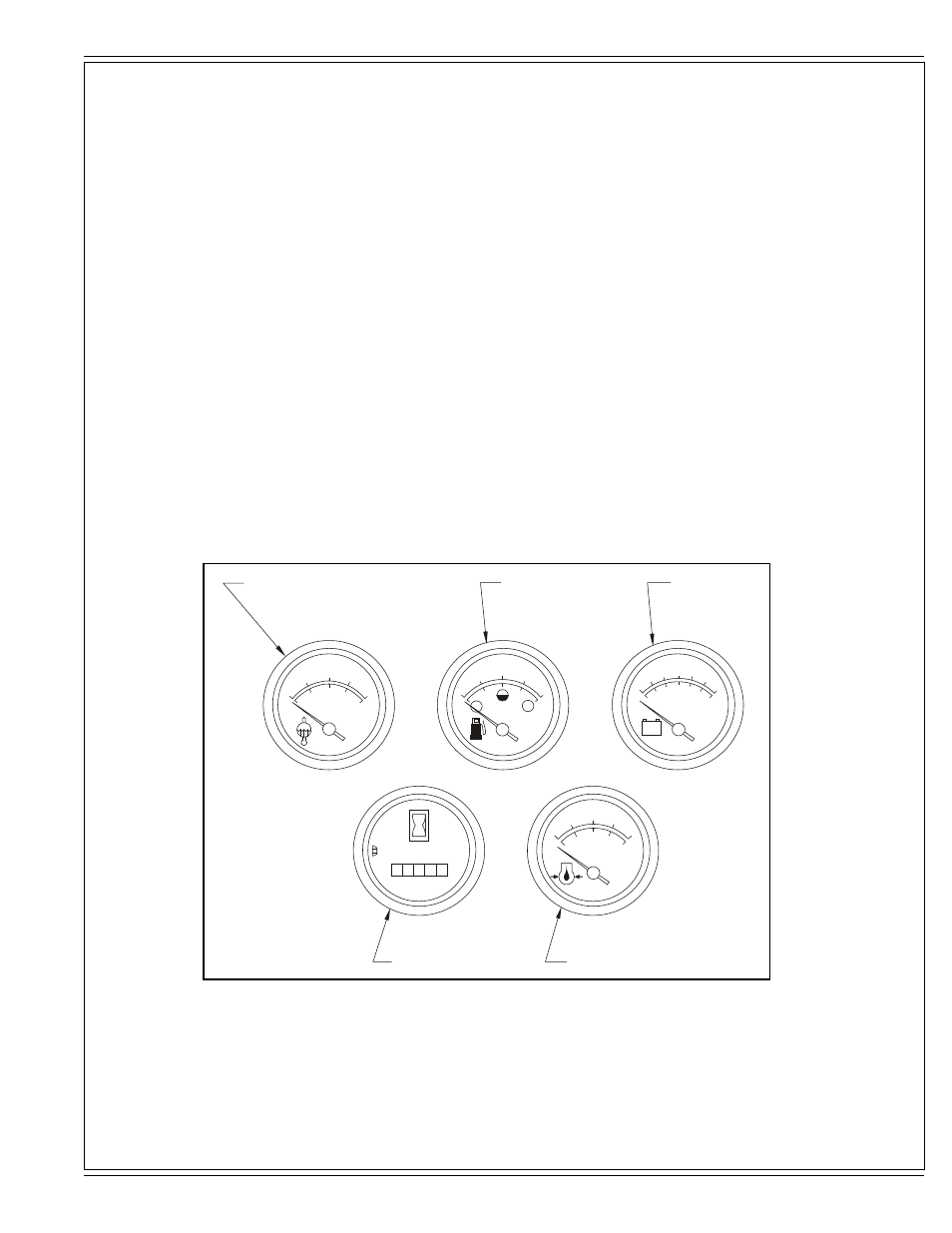

FIGURE 5
ENGLISH / A-11
