122
-EN

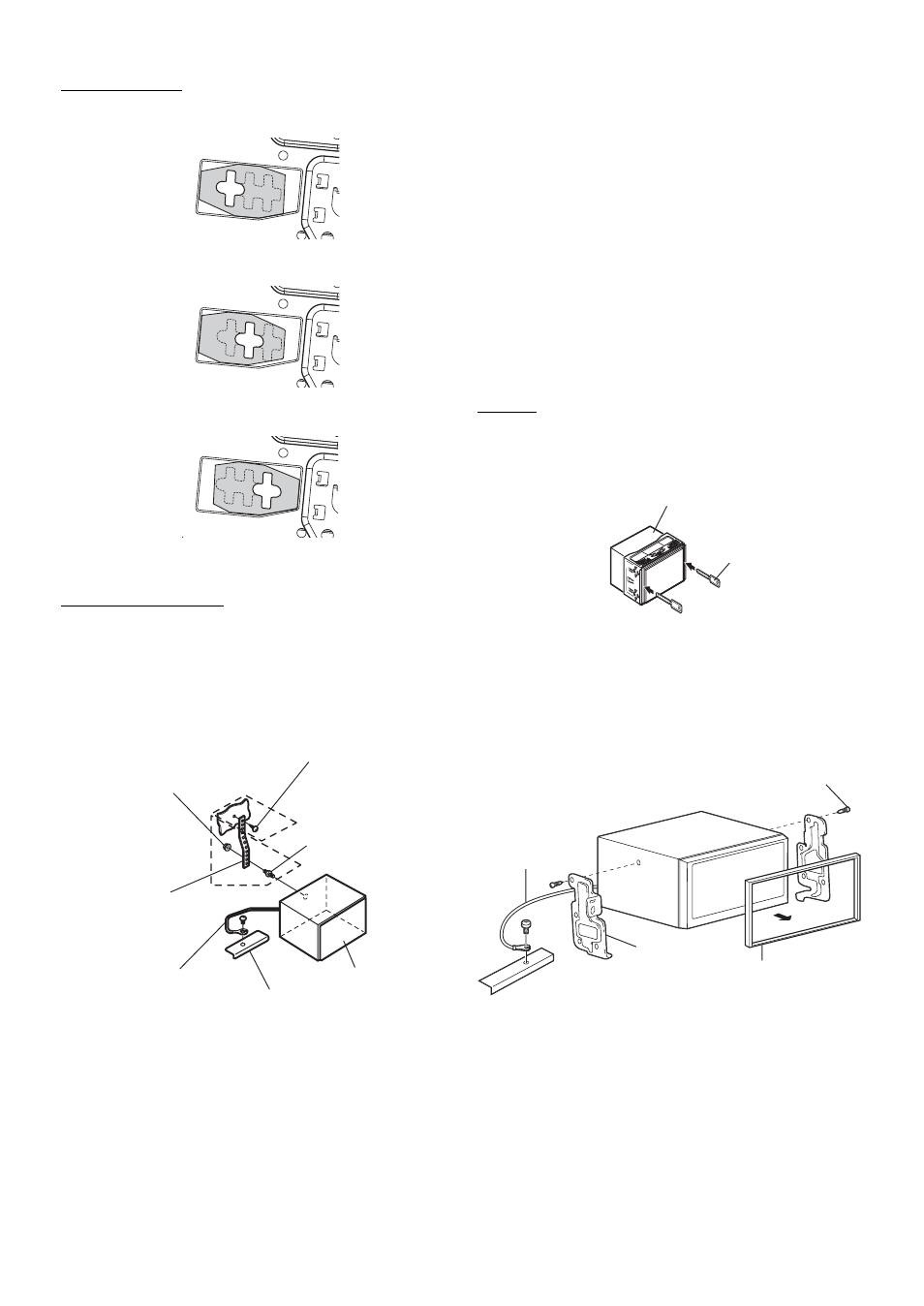

How to use a Seal
If A is used for installation:
Affix the seal so that mounting holes B and C are covered.
If B is used for installation:
Affix the seal so that mounting holes A and C are covered.
If C is used for installation:
Affix the seal so that the mounting holes A and B are covered.
• If the mounting sleeve is not used while installing the unit, please
stick the seal on A position to prevent the dust from entering the unit.
Installing the Face Plate
*
2
If B is used, the supplied face plate may be mounted.
If A or C is used, the face plate cannot be mounted.
Removal
1. Insert the bracket keys into the unit, along the guides
on either side. The unit can now be removed from the
mounting sleeve.
2. Pull the unit out, keeping it unlocked as you do so.
Take the face plate off, and secure the ground lead of the unit to
a clean metal spot using a screw (*) already attached to the
car’s chassis.
Attach the Original Mounting Bracket to each side of the
INA-W910, using the screws supplied with INA-W910.
4
Hex Nut (M5)
Screw
Bolt Stud
This unit
Chassis
Ground Lead
Metal
Mounting
Strap
* 2
* 1
Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (*
1
) already
attached to the vehicle’s chassis.
• For the screw marked “*
2
”, use an appropriate screw for the chosen
mounting location.
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming
from the left rear of the INA-W910. Connect all other
leads of the INA-W910 according to details
described in the CONNECTlONS section.
5
Slide the INA-W910 into the dashboard until it clicks.
This ensures that the unit is properly locked and will
not accidentally come out from the dashboard.
This unit
Bracket keys
(Included)
Ground Lead
Chassis
Screws (M5 × 8) (Included)
Face Plate (Included)
Mounting
Bracket
*
