LOCK NUT
STEEL WASHER
M 9 6 8 4 8 7

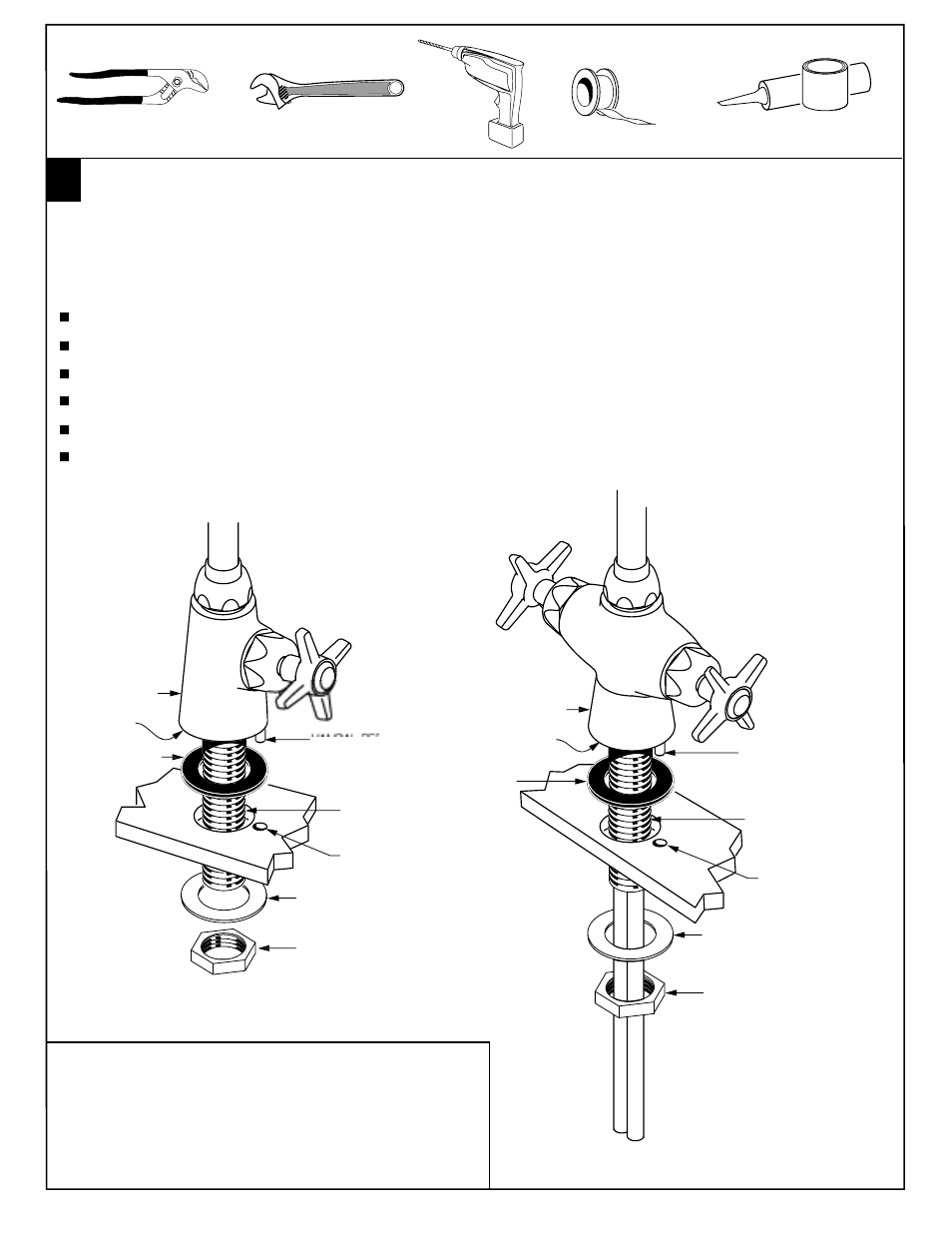

SINGLE AND DUAL CONTROL
LABORATORY FITTINGS
SINGLE CONTROL
LABORATORY FITTINGS
DUAL CONTROL
LABORATORY FITTINGS
1
For vandal resistant fitting only, a pin hole will be need to be drilled into the deck offset from the mounting shank hole.
Note: For vandal resistant models it is important to obtain the rough-in drawing for the particular model. The
drawing illustrates exact size and positioning of the offset hole. Drill a 1/4" (6mm) dia. hole 3/8" (10mm) deep
in mounting surface, per roughing-in dimensions for vandal resistant pin.
For vandal resistant fitting apply putty to underside of fitting base to assure a good seal and level fit.
When installing a vandal resistant fitting, align pin with pin hole in mounting surface.
For standard fitting, assemble rubber washer onto body shank.
Place body shank through hole in deck and assemble steel washer and lock nut. Tighten securely.
Pipe to correct service to complete installation.
After installation is complete turn service on and check all connections for leaks.
TOOLS AND SUPPLIES REQUIRED
Adjustable Wrench
Teflon Tape
Drill
Plumbers' Putty or
Caulking
FITTING
BASE
PUTTY
BODY
SHANK
BODY
SHANK
FITTING
BASE
LOCK NUT
STEEL WASHER
Channel Locks
7272.220
7272.201
7272.221
7272.221VR
7272.120
7272.121
7272.121VR
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR
WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH,
ABRASIVES, HARSH CLEANERS, OR A CLOTH WITH A
COARSE SURFACE.
RUBBER WASHER
(NOT USED ON
VR FITTINGS)
RUBBER WASHER
(NOT USED ON
VR FITTINGS)
VANDAL RESISTANT PIN
ON VANDAL RESISTANT
FITTINGS ONLY
OFFSET HOLE FOR
VANDAL RESISTANT PIN
VANDAL RESISTANT PIN
ON VANDAL RESISTANT
FITTINGS ONLY
OFFSET HOLE FOR
VANDAL RESISTANT PIN
PUTTY
IMPORTANT: FLUSH ALL SUPPLY LINES PRIOR TO FITTING INSTALLATION.
