ASUS A7N266-E User’s Manual 39
3. HARDWARE SETUP
Connectors
3. H/W SETUP
14) Power Supply Connectors (20-pin block ATXPWR)
This connector supplies to an ATX 12V power supply. The plug from the power
supply fits in only one orientation because of the different hole sizes. Find the
proper orientation and push down firmly making sure that the pins are aligned.
IMPORTANT: Make sure that the ATX 12V power supply (minimum
recommended wattage: 230W) can supply at least 10mA on the +5-volt standby
lead (+5VSB). The system may become unstable and may experience difficulty
powering up if the power supply is inadequate. For Wake-On-LAN support, the
ATX power supply must supply at least 720mA +5VSB.
A7N266-E
0 1 0 1 0 1
®

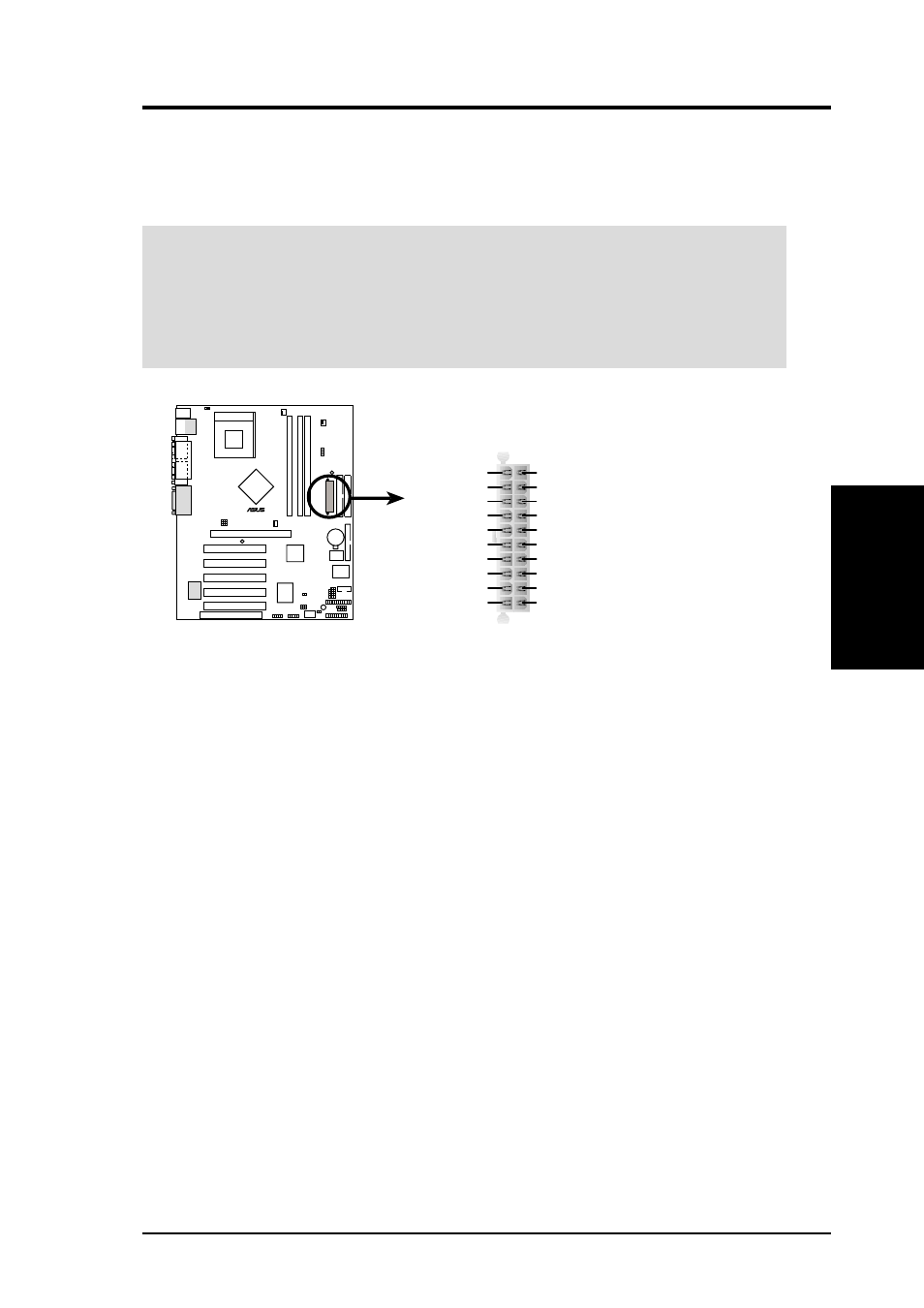

A7N266-E ATX Power Connector
+3.3VDC
-12.0VDC
COM
PS_ON#
COM
COM
COM
-5.0VDC
+5.0VDC
+5.0VDC
PWR_OK
+12.0VDC
+3.3VDC
+3.3VDC
COM
+5.0VDC
COM
+5.0VDC
COM
+5VSB
ATXPWR
