Spektrum VR6007 4
Installation
1. Mount the regulator(s) via the mounting tabs and grommets with self-
tapping screws to a flat surface in your aircraft appropriately located
between the battery and the receiver.

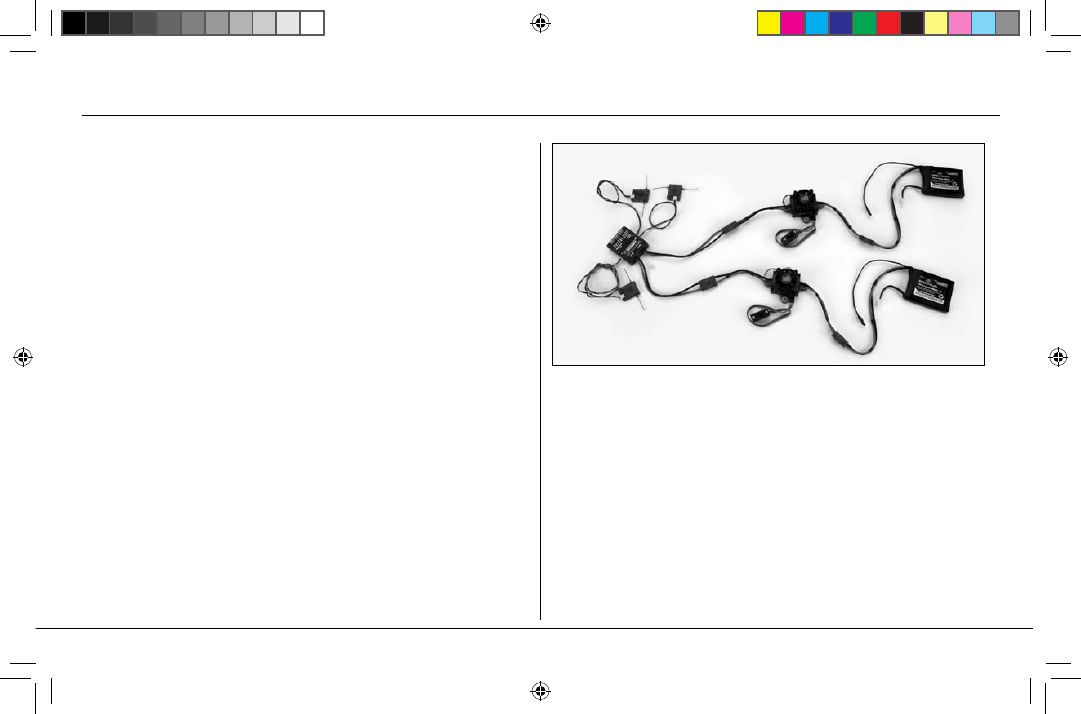

2. Plug the soft switch into the regulator as shown in the illustration and
mount the switch to the side of the fuselage. Note: If using an AR9100
remove the switch that is plugged into the receiver. The switch
plugged into the regulator will be used to turn the system on and off.
3. Plug the Battery into the regulator and plug the regulator into either of
the AR9100 power input ports.
Note: If using a receiver other than a Spektrum AR9100, an
optional EC3-to-dual servo lead output adapter is available
(SPMYHEC36). Plug the EC3 adapter into the regulator’s
output and then plug the two servo leads into the battery port
and any open auxiliary port in the receiver.
4. Turn on the system. The fan should operate and the
receiver should turn on.
