SPMA9590 AIRCRAFT TELEMETRY
HIGH-CURRENT SENSOR USER GUIDE
The Spektrum ™ SPMA9590 Aircraft Telemetry High-Current Sensor is for use
with the Spektrum TM1000 Telemetry Module X-BUS expansion port (sold
separately).
Specifications
Type: SPMA9590 Aircraft Telemetry High-Current Sensor
Measures: 10–150A (positive or negative). Capable of 150A with direct solder
to sensor (PCBA)
Resolution: 1A
Dimensions (LxWxH): 34mm x 24mm x 15mm (1.4 in x 0.9 in x 0.6 in)
Weight: 29 g (1.02 oz)
Wire Gauge: 13 AWG
Input Connector Types: EC3
Input Voltage: 4.2V to 60V
Continuous Maximum Current: 150A (20 second duration)
Calibration: No user calibration required

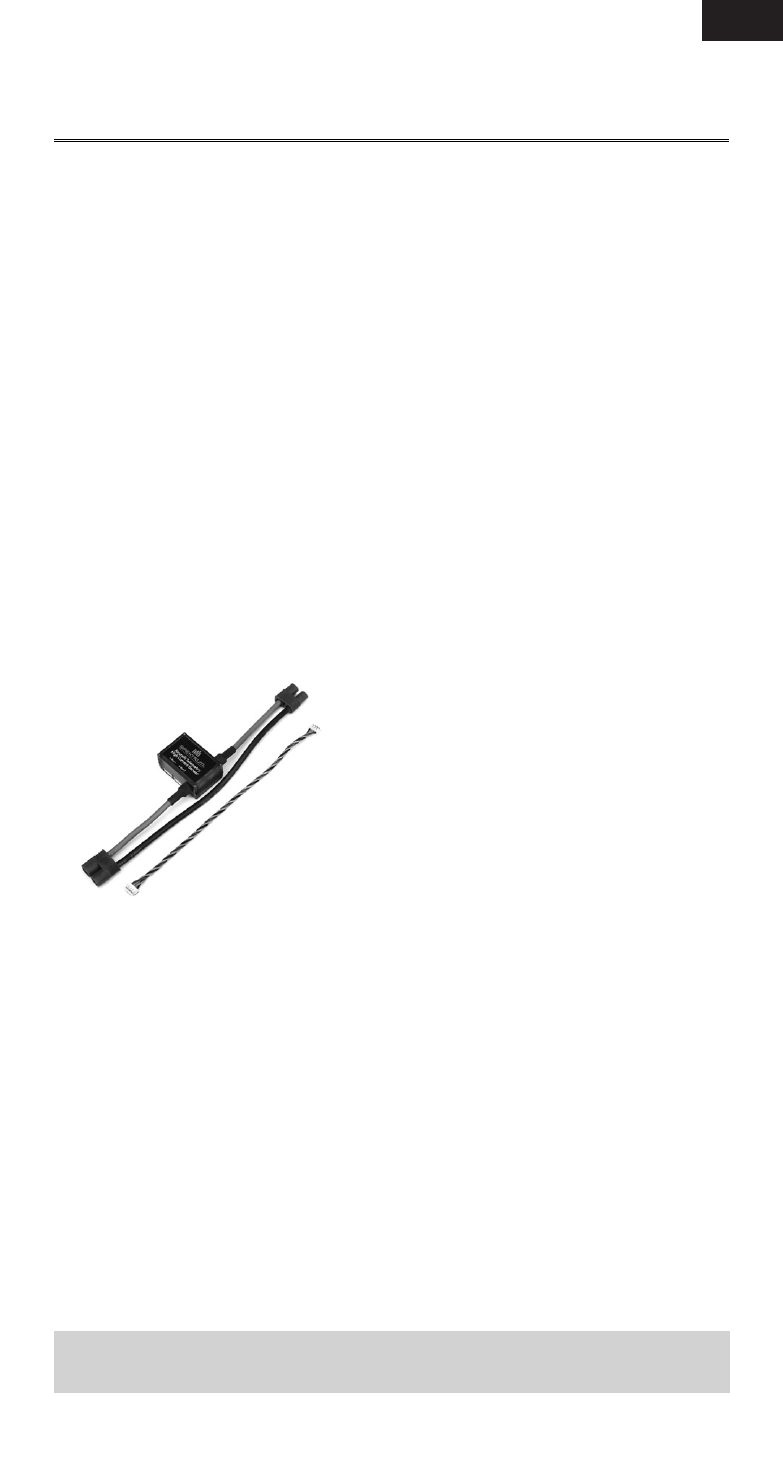

Items Included
• 6” X-BUS extension • Sensor
Insert the X-BUS extension into the High-Current Sensor and X-BUS port of
the TM1000 Telemetry Module. The sensor has two ports to which the X-BUS
extension connects. Either plug can be used on the sensor. When using multiple
sensing units, daisy chaining will be required.
IMPORTANT: Please make sure your device software is updated
to the most recent version.
Mount the TM1000 module near the receiver in a position that allows the 2.5-
inch data lead to extend from the receiver’s DATA port to the DATA port on the
telemetry module. You can use servo tape to secure the TM1000 module or wrap
it in foam with the receiver. Connect the DATA lead to the TM1000 port marked
DATA and connect the other end of the lead to the receiver’s DATA port.
NOTICE: Route and secure the antenna away from any metallic or
conductive materials.
