4 OM-KTT-DS

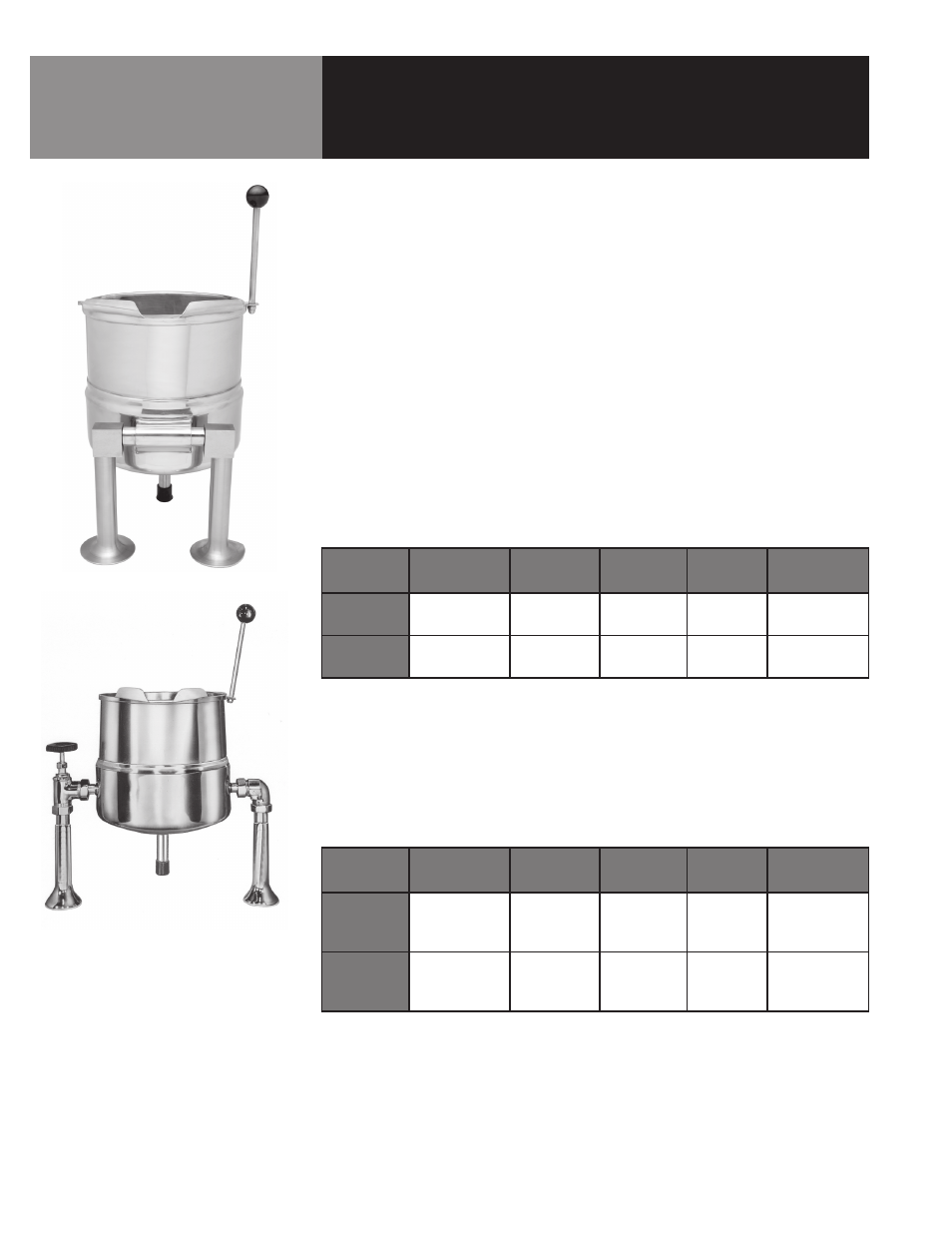

The KTT-DS are tilting, table-top kettles with direct steam-heated jackets. The one-
piece stainless steel body on each includes a butterfly shaped pouring lip. The kettles
have a 180 emery grit interior finish and a bright semi-deluxe exterior finish.
Every unit requires a remote steam source. The steam supply is controlled by an inlet
valve, and enters the jacket through one support and rotary joint. Condensate leaves
the jacket through the other rotary joint and support. Standard units are ASME shop
inspected, stamped, and registered with the National Board. These kettles operate
efficiently at pressures above five PSI. A safety valve, strainer, steam trap, and check
valve are all required for installation, and may be ordered as optional equipment.
Optional features and equipment include:
• Higher maximum pressure • Bracket inserts
• Lift-off covers • Kettle brush kit
• Open leg mounting table mounting • Steam trap assembly
The 5/6DS-KTT kettle has a jacket rated for working pressures up to 55 PSI. The
kettle body incorporates a triple reinforced rim. Two tubular steel supports support the
swivel on which the kettle tilts. A leg projects from the bottom of the kettle.
The design makes it easy for one person to tilt the kettle with the tilting handle, even
when the kettle is full.
The 10/12DS-KTT kettle incorporates a triple reinforced rim and a jacket rated for
working pressures up to 50 PSI. Two chrome-plated arms support the trunnions on
which the kettle tilts. The arm that also serves as the steam inlet has an integral
steam control valve.
Equipment Description
Model
Kettle
Capacity
Kettle Body
Diameter
Kettle Body
Depth
Base
Width
Base Depth
5DS-KTT
5 Gal. (20 Qt.)
19 liter
12 inches
305 mm
12 inches
305 mm
15 inches
381 mm
15-1/4 inches
387 mm
6DS-KTT
6-Gal. (24 Qt.)
23 liter
12 inches
305 mm
14 inches
356 mm
15 inches
381 mm
15-1/4 inches
387 mm
Model
Kettle
Capacity
Kettle Body
Diameter
Kettle Body
Depth
Base
Width
Base Depth
10DS-KTT
10 Gal.
(40 Qt.)
38 liter
16 inches
406 mm
14-1/2
inches
368 mm
26-3/4
inches
680 mm
19-3/4 inches
502 mm
12DS-KTT
12 Gal.
(48 Qt.)
45 liter
16 inches
406 mm
16 inches
406 mm
26-3/4
inches
680 mm
19-3/4 inches
502 mm
5/6DS-KTT
10/12DS-KTT
