Blodgett KTT-DS Series - Manual (Page 16)

14 OM-KTT-DS

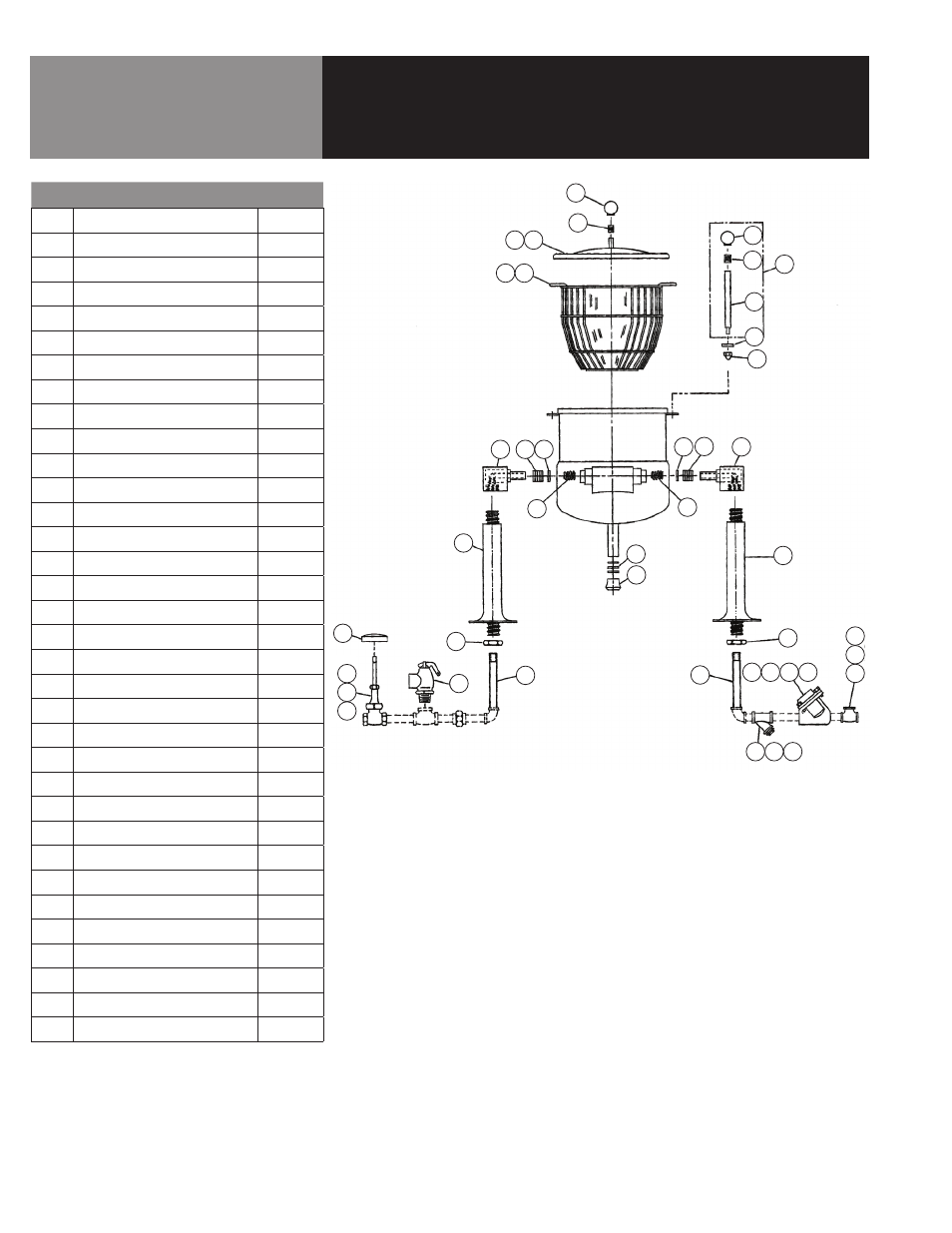

Parts List
5/6 Gallon Models
OM-TD
15
Parts List
Model TDC/3
Key Description Part No. Key Description Part No.
1 Pedestal Assembly 081572 24 Valve, Globe 3/8" PCP* 010146
2 Pedestal Cap 081574 25 Handwheel, Valve 01148
3 Nut, Hex Jam 1-3/4" OD 081707 26 Valve, Safety (not incl.) 011001
7 Packing Ring Set 002033 27 Strainer, 1/2" Y, Blk. 004181
8 Washer Packing 002019 28 Strainer, 1/2" Y, RCP 010165
9 Spring 002025 29 Strainer, 1/2" Y, PCP 010166
10 Washer 5/8" Neoprene 003242 30 Steam Trap Repair Kit 002886
11 Tip, Crutch 1" ID 002032 31 Steam Trap, 1/2" Blk 010250
12 Handle Assembly 012694 32 Steam Trap, 1/2" RCP 010251
13 Knob, Maroon Ball 012691 33 Steam Trap, 1/2" PCP 010252
14 Ring, Tolerance 012692 34 Valve, Check 1/2" Brass 004187
15 Handle Shaft 018963 35 Valve, Check 1/2" RCP 010124
16 Lockwasher 3/8" 005618 36 Valve, Check 1/2" PCP 010140
17 Nut Cap 3/8-24 003188 37 Nipple, 3/8" x 12-1/2" Lg 005485
18 Basket TDC/3-10 001110 — Pedestal Gasket (old style) 001968
19 Basket TDC/3-20 001120 — Bullet Foot 042505
20 Cover Assembly TDC/3-10 001107 — Stem Extension PCP 012722
21 Cover Assembly TDC/3-20 001108 — Kettle Body MS2043
22 Valve, Globe 3/8" Brass* 002051 — Control, DC Adjustable 013972
23 Valve, Globe 3/8" RCP* 010145 — Control, DC Adjustable 005125
15
OM-TD
15
37
3
26
1
25
22
23
24
9
11
10
2
9
7 8 7 8 2
1
3
37
27 29 28
30 32 31 33
36
35
34
17
16
15
12
14
13
13
14
21 20
19 18
Key Description Part No.
1 PEDESTAL ASSEMBLY 081572
2 PEDESTAL CAP 081574
3 NUT, HEX JAM 1-3/4” OD 081707
7 PACKING RING SET 002033
8 WASHER PACKING 002019
9 SPRING 002025
10 WASHER 5/8” NEOPRENE 003242
11 TIP, CRUTCH 1” ID 002032
12 HANDLE ASSEMBLY 012694
13 KNOB, BALL 156056
14 RING, TOLERANCE 012692
15 HANDLE SHAFT 018963
16 LOCKWASHER 3/8” 005618
17 NUT CAP 3/8-24 003188
18 BASKET, 2.5 GAL. KETTLE 001110
19 BASKET, 5 GAL. KETTLE 001120
20 COVER ASSEMBLY, 2.5 GAL. 001107
21 COVER ASSEMBLY, 5/6 GAL. 001108
22 VALVE, GLOBE 3/8” BRASS 002051
23 VALVE, GLOBE 3/8” RCP 010145
24 VALVE, GLOBE 3/8” PCP 010146
25 HANDWHEEL, VALVE 01148
26 VALVE, SAFETY (NOT INCL.) 011001
27 STRAINER, 1/2” BLK 004181
28 STRAINER, 1/2” RCP 010165
29 STRAINER, 1/2” PCP 010166
30 STEAM TRAP REPAIR KIT 002886
31 STEAM TRAP, 1/2” BLK 010250
32 STEAM TRAP, 1/2” RCP 010251
33 STEAM TRAP, 1/2” PCP 010252
34 VALVE, CHECK 1/2” BRASS 004187
35 VALVE, CHECK 1/2” RCP 010124
36 VALVE, CHECK 1/2” PCP 010140
37 NIPPLE, 3/8” X 12-1/2” LG 005485
