Trunnion Packings for
5/6 Gallon Models
OM-TD
Diagram
Trunnion Packings
21
OM-TD
21

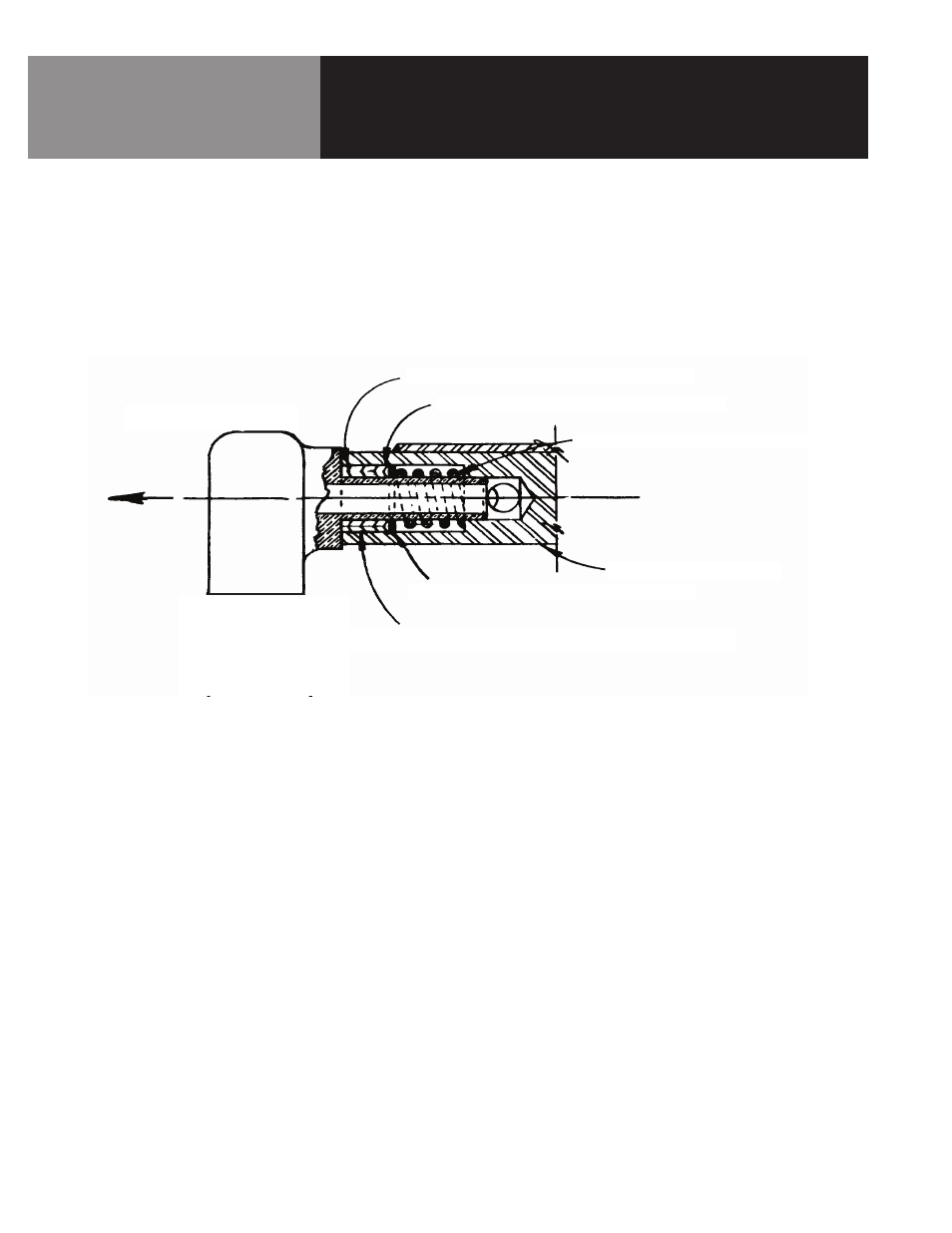

MODEL TDC/3
Pedestal Cap 081754
NOTE: THESE 5 RINGS COMPRISE ONE SET
OF PACKING & MUST BE ASSEMBLED IN
THE MANNER SHOWN. PART NO 002033
FEMALE PACKING RING ADAPTER
MALE PACKING RING ADAPTER
SPRING PART NO. 002025
KETTLE TRUNNION
WASHER PART NO. 002019
INTERMEDIATE PACKING RING, 3 FURNISHED
PEDESTAL CAP 081754
