1
AT-MC100 Series Fast Ethernet Media
Converters
The AT-MC100 Series Fast Ethernet Media Converters include the following
models:
The AT-MC100 Series Fast Ethernet Media Converters are designed to extend
the distance of your network by interconnecting LAN devices that are
physically separated by large distances. Each media converter features a
100Base-TX twisted pair port and a 100Base-FX fiber optic port. The twisted
pair port has an RJ-45 connector and a maximum distance of 100 meters (328
feet). The fiber optic port has an ST or SC connector and a maximum distance
of 2 kilometers (1.2 miles) to 100 kilometers (62 miles), depending on the
model. These units operate at 100 Mbps and feature half-duplex and full-
duplex operation.
The media converters can be installed either as standalone units, such as on a
table, or in an AT-MCR12 Rackmount Chassis or AT-TRAY4 Rackmount
Tray. The AT-MC101, AT-MC102, and AT-MC103 Series Media Converters
are easy to install and do not require any software configuration or
management. Figure 1 shows an example of an AT-MC100 Series Media
Converter.

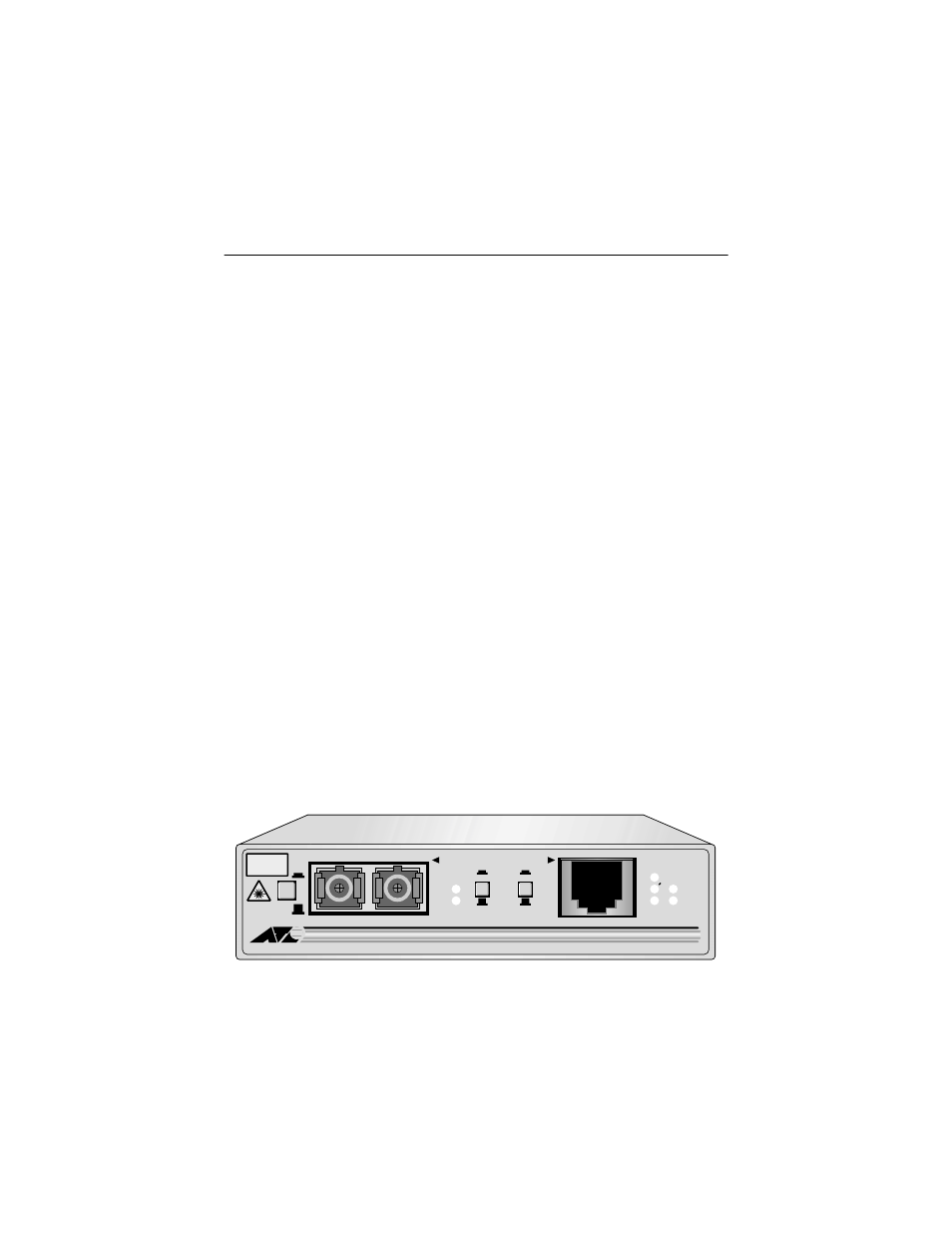

Figure 1 AT-MC103SC/FS3 Model
❑ AT-MC101XL ❑ AT-MC103SC/FS3
❑ AT-MC102XL ❑ AT-MC103ST/FS3
❑ AT-MC103XL ❑ AT-MC103SC/FS4
❑ AT-MC103LH ❑ AT-MC103ST/FS4
TX RX
MC103SC/FS3 FAST ETHERNET MEDIA CONVERTER
M/L
ON
LNK TST
CLASS 1
LASER PRODUCT
DO NOT STARE
INTO BEAM
100Base-FX 100Base-TX
SINGLE MODE
FDX
LNK
ACT M/L ON
PWR
LNK
ACT A/N OFF MDI-X
A/N ON MDI
