5

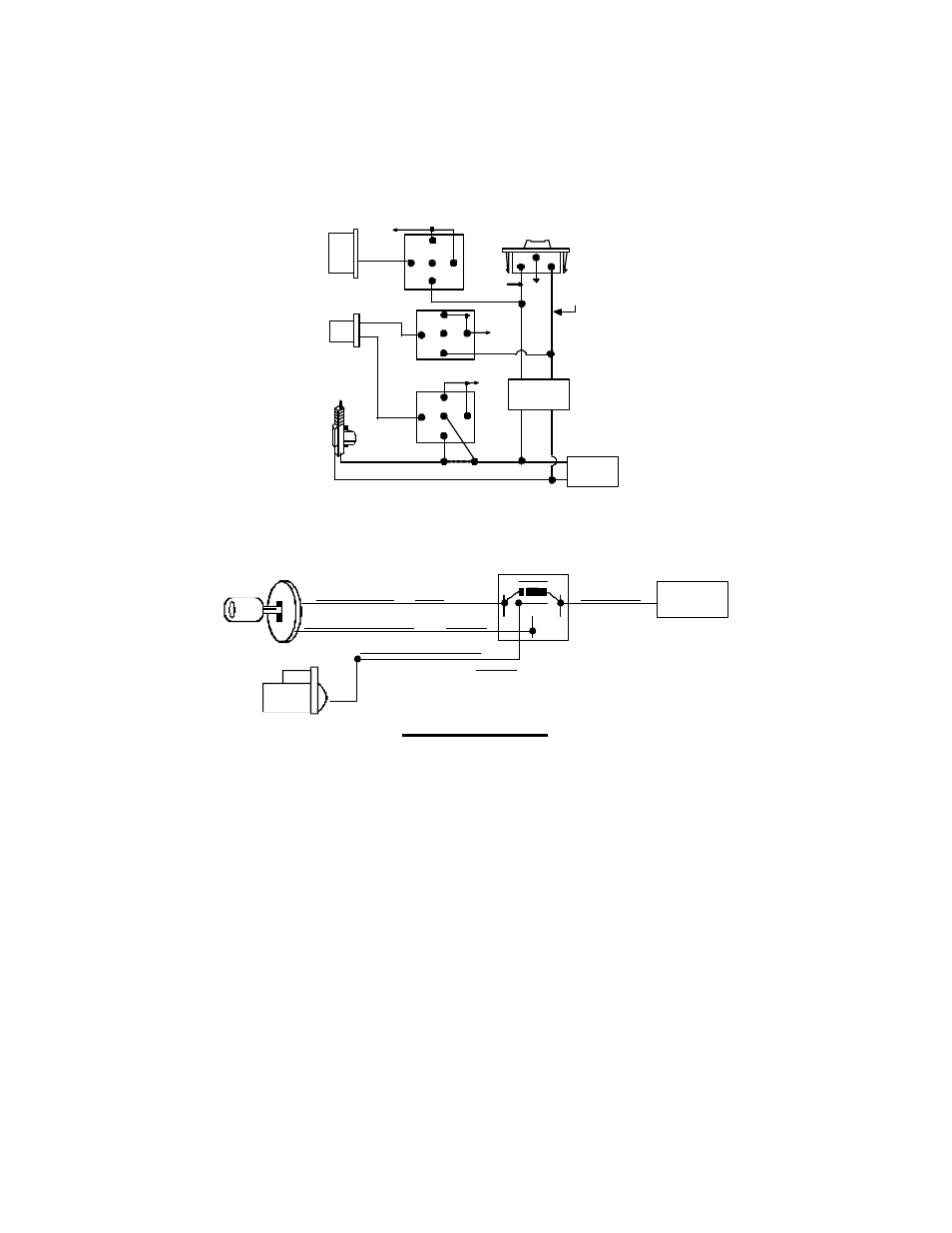

2 STEP DOOR UNLOCK WIRE CONNECTION FOR
POSITIVE SWITCHED DOOR LOCKS
Cut Existing Unlock
X
Lock Unlock
OEM Door Master Lock Switch
To All Other
Door Lock
Motors
8 -Pin
Plug
From
Alarm H2/ 8
Gray Wire
OEM Driver's
Door Lock
Motor
+ 12V Existing Pos.
Lock Wire
Existing Pos.
Unlock Wire
3 0
87A
8 7
86 85
+12V
+ 12V
OEM Door
Lock Relay
86
3 0
85
87
87A
H3/1 Blue
Wire
Door Unlock
H3/3 Green Wire
Door Lock
+ 12V
86
3 0
85
87
87A
STARTER DISABLE ( Optional )
PROGRAMMING
PROGRAMMING TRANSMITTERS:
Enter:
1. Turn the Ignition 'switch ‘OFF/ON’ 3 TIMES and stay in ON position.
Within 15 seconds,
2. Push the Valet switch 2 times and hold in on the 2nd push. When a
long chirp is heard release the valet switch. You are now in the
Transmitter programming mode.
Program:
1. Press any button on the first transmitter until the siren responds with
a confirming chirp. The first transmitter is now programmed.
2. Press any button on the second transmitter until the siren responds
with a confirming chirp. The second transmitter is now programmed.
3. Apply the same procedure to program any 3rd or 4
th
transmitter.
Exit: Turn Ignition to the 'OFF' position, or leave it for 15 seconds. 3 long
chirps will confirm exit.
<12V (+) Ignition>
Orange
Starter Disable
Wire
STARTER
87
87a
30
86 85
RK-1
