Auto Page RF-350 - Manual (Page 4)

4

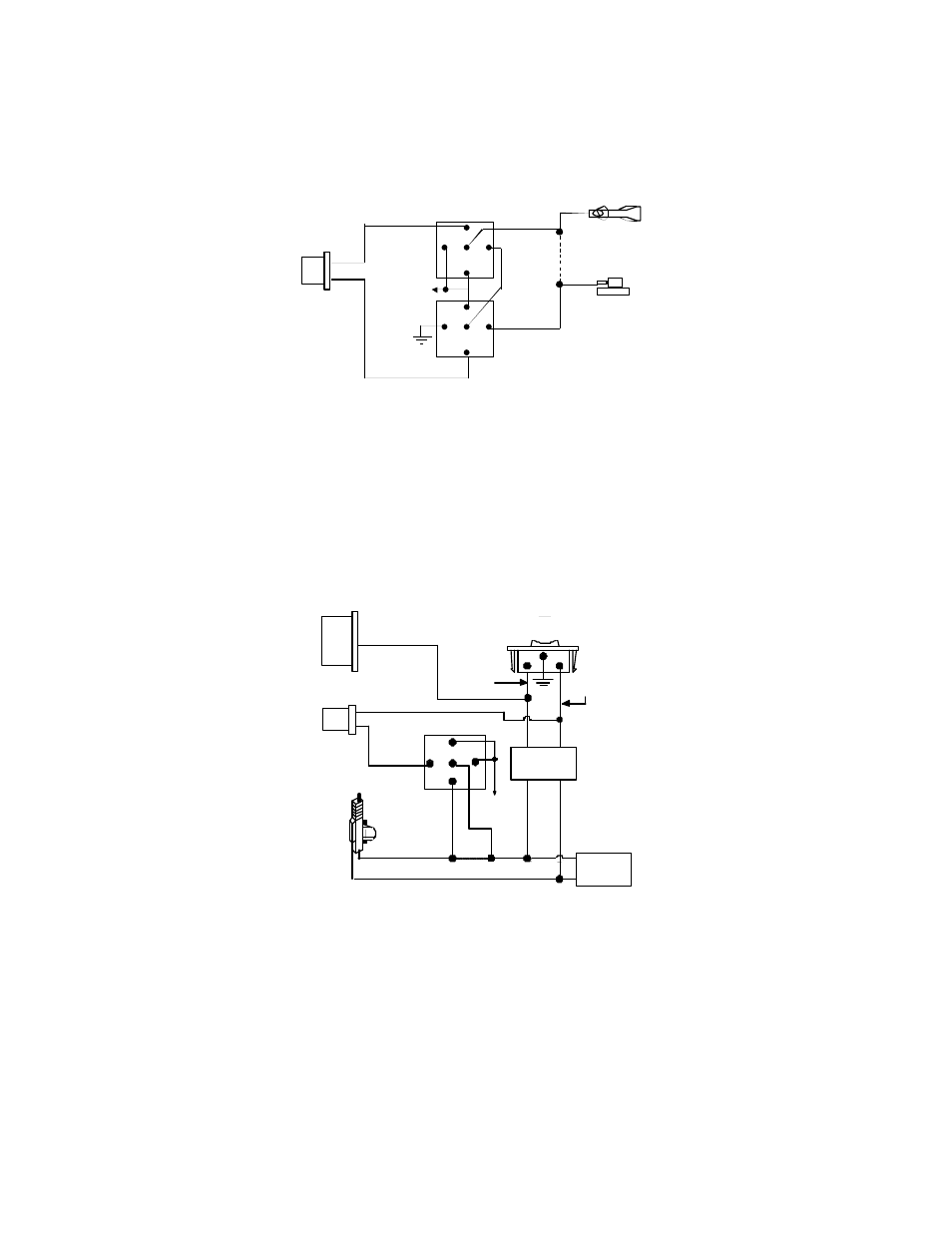

VACUUM OPERATED CENTRAL LOCKING
Green Wire
Blue Wire
+12V
X Cut
Compressor
Door Switch
30
86
87a
85
87
30
86
87a
85
87
3 Pin
Plug To
Alarm
VACUUM OPERATED DOOR LOCKING SYSTEM:
TYPICAL OF MERCEDES BENZ AND AUDI.
Locate the wire under the driver's kick panel. Use the
voltmeter connecting to ground, verify that you have the
correct wire with the doors unlocked, the voltmeter will
receive "12 volts". Lock the doors and the voltmeter will
read "0 volt". Move the alligator clip to +12V and the
voltmeter will receive "12 volts". Cut this wire and make
connections. Be sure to program door lock timer to
3.5 seconds.(See Feature II – 3 Programming.)
2 STEP DOOR UNLOCK WIRE CONNECTION FOR
GROUND SWITCHED DOOR LOCKS
Cut Existing Unlock
X
Lock Unlock
OEM Door Master Lock Switch
To All Other
Door Lock
Motors
8 -Pin
Plug
From
Alarm H2/8 Gray Wire
OEM
Door Lock
Motor
Existing Neg.
Lock Wire
Existing Neg.
Unlock Wire
86
30
85
87
87A
+ 12V
H3/3 Green
Wire
Door Lock
H3/1 Blue
Wire
Door Unlock
3 Pin Plug
To Alarm
OEM Door
Lock Relay
