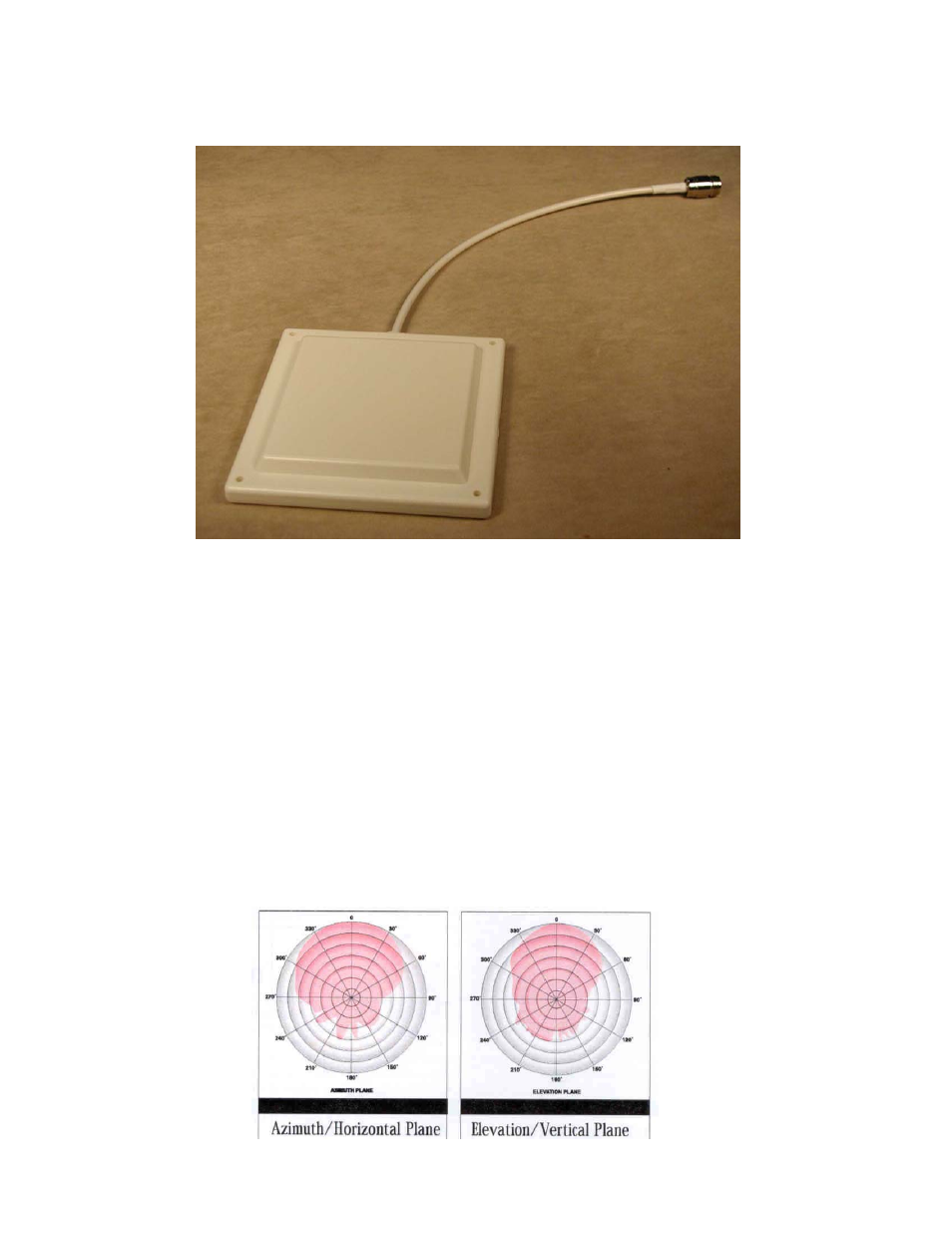

Antenna, 2.4 GHz, 9DBI, Flat Panel
FCC
Size: 5.0 x 5.0 x .75 inches
12.7 x 12.7 x 1.9 cm
This antenna is mounted with the back surface to a wall. The side of the antenna
where the cable exits is normally pointed to the ceiling. Also provided with Velcro
patches, plastic drywall anchors self threading screws and Tilt Pan bracket. Tilt
Pan bracket shown on next page.
Approx.
Beam Width
Gain Azimuth Plane Elevation/Vertical
Plane
9 DBI 60 degrees 60 degrees
The patterns shown assume the antenna is mounted as described above. The six
o’clock point is the portion of the antenna (back) that is mounted to the wall.
