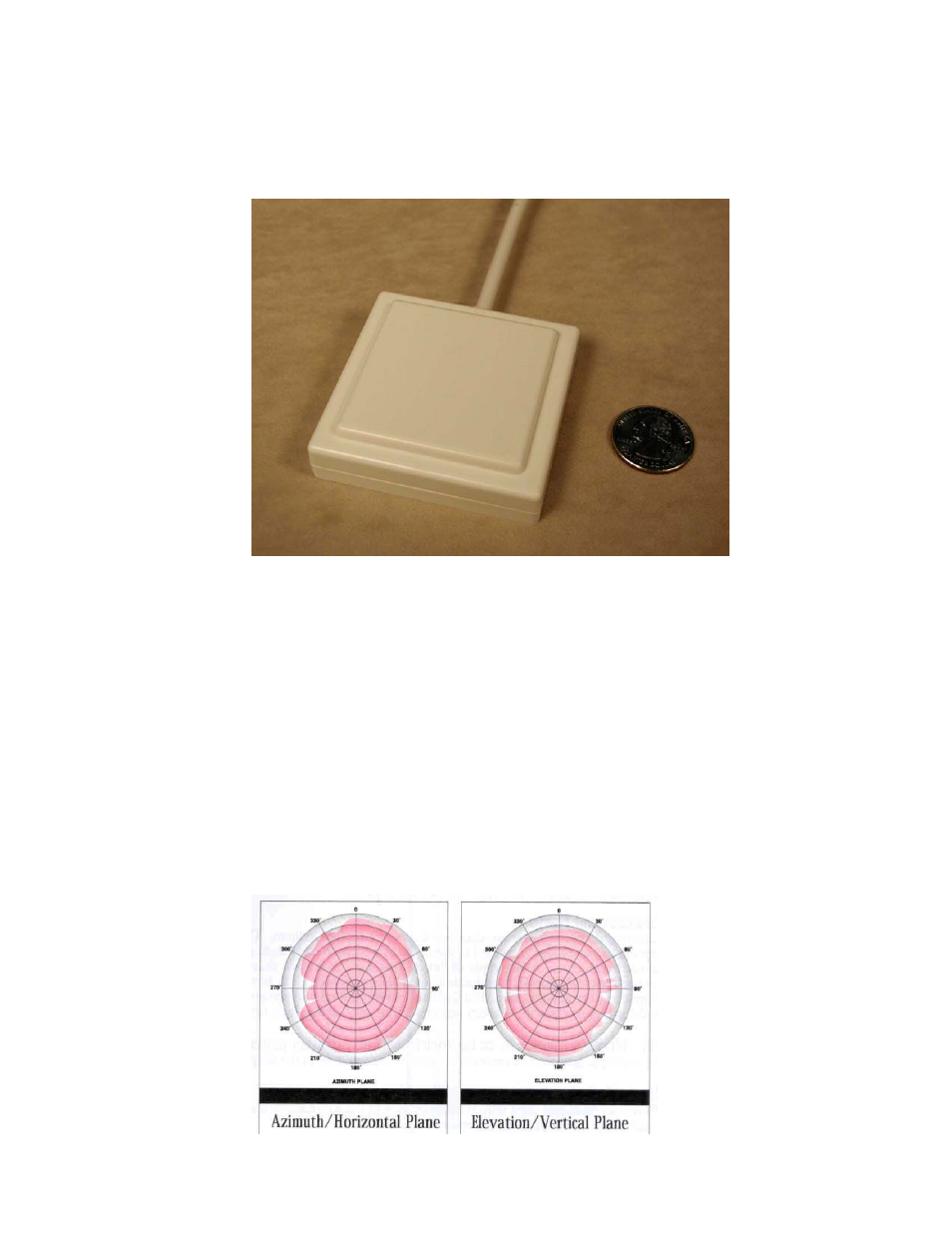

Page 23: Approx. beam width, Gain azimuth plane elevation/vertical, 3 dbi see diagrams below for actual patterns
Antenna, 2.4 GHz, 3DBI Mini Omni
AT-INT067261-00 – with N Receptacle Connector
AT-INT070140-00 – with MMCX Connector
AT-INT070141-00 – with Radiall (Lucent) Connector
FCC
Size: 2.0 x 2.5 x 1.0 inches
ETSI
5.1 x 6.4 x 2.5 cm
The back surface of this antenna can be mounted to a wall or a ceiling. Hardware
for drop-ceiling installation is also provided.
Approx. Beam Width
Gain
Azimuth
Plane
Elevation/Vertical
Plane
3 DBI
See diagrams below for actual patterns.
The patterns shown assume the antenna is mounted to a wall with the cable directed
at the ceiling. The six o’clock point is the portion of the antenna that is mounted to
the wall.
