AT-INT067262-00

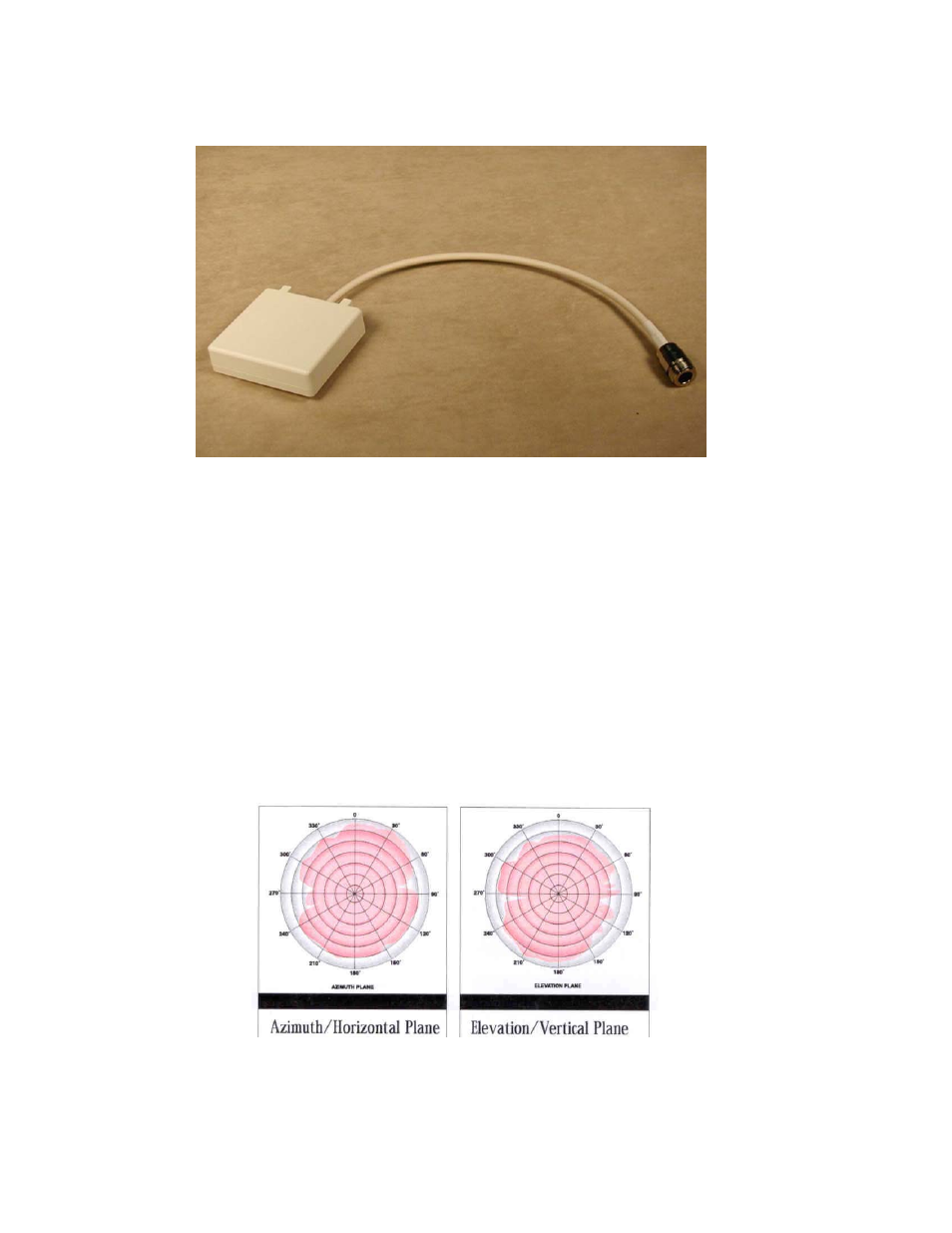

Antenna, 2.4 GHz, 5DBI, Dual Flat Panel
FCC
Size: 2.7 x 2.5 x .8 inches
6.9 x 6.4 x 2.0 cm
This antenna should be installed so that the two larger surfaces each face down one
direction of a corridor.
Approx.
Beam Width
Gain Azimuth Plane Elevation/Vertical
Plane
5 DBI 60 degrees 30 degrees
The patterns shown assume the antenna is mounted as described above. The six
o’clock and twelve o’clock points are the two large surfaces.
