Allied Telesis AT-VIEW PLUS 2.4 AMIGO - Manual (Page 23)

Allied Telesyn AT-VIEW PLUS
AMIGO
PN 613-50506-00 Rev B Page 23 of 38
4.1.6.2 Setting Target Devices Tab
In the "Setting target devices" tab, you can add or remove a target device to/from which MIB values
are set or retrieved. You can also configure the SNMP connection properties of a target device.
To add a target device, input a dotted IP address or a host name in the Host name textbox, then click
Add.
To change the properties of a specific target device, select the target device from the list, then click
the Property button. The "Target host property" dialog box opens. Change the properties, then click
OK.
To remove a target device from the list, select a device in the list then click Delete.

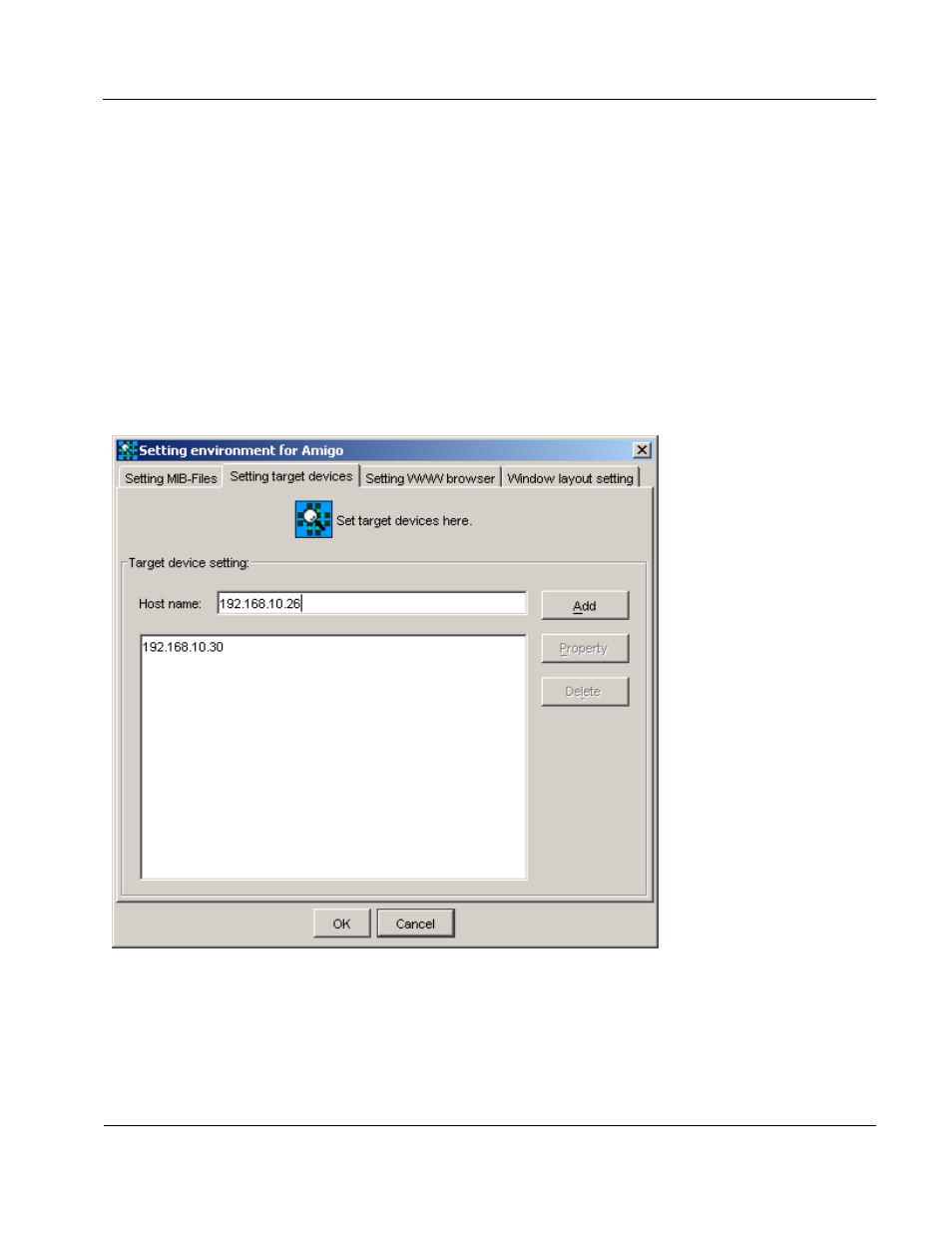

Setting target devices tab
4.1.6.3 Target Host Property
In the "Target Host Property" dialog box, you can change various properties for a specific target
device.
