AT-GS905 Gigabit Ethernet Switch Installation Guide
35
Safety and Electromagnetic Emissions Certifications
Safety: EN60950 (TUV), UL60950 (
c
UL
us
), CE
EMI: FCC Class B, EN55022 Class B,
VCCI Class B, C-TICK
Immunity: EN55024
Quality and Reliability: MTBF – 558,000 hours
Connectors
This section lists the connectors and connector pinouts for the AT-GS905
Gigabit Ethernet switch and its components.
RJ-45 Twisted
Pair Port
Pinouts
Figure 10 illustrates the pin layout to an RJ-45 connector and port.

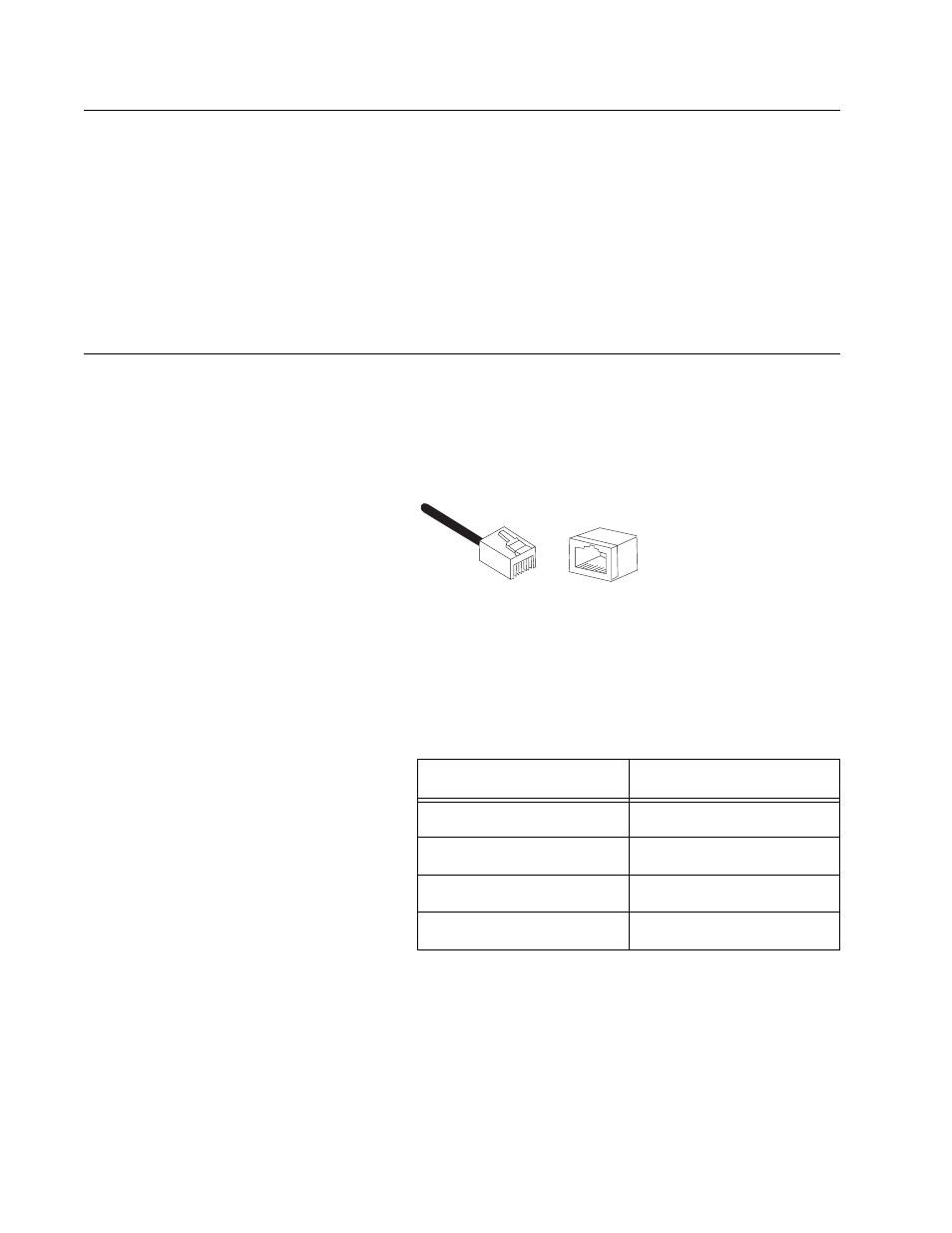

Figure 10 RJ-45 Connector and Port Pin Layout
Table 3 lists the RJ-45 pin signals when a twisted pair port is operating in
the MDI configuration.
Table 3 MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
8
8
1 1
