Quick Install Guide 13
C613-04058-00 REV B
Configure the AR440S or AR441S using the GUI
Caution Only one DHCP server should usually be enabled on a network. If you
have an existing DHCP server, we recommend disabling either it or the DHCP
server configured by default on the router.
If another device on your network already uses the router’s default IP address,
192.168.1.1, do not connect the router to the network until you have changed the
management port’s address by using the command line.

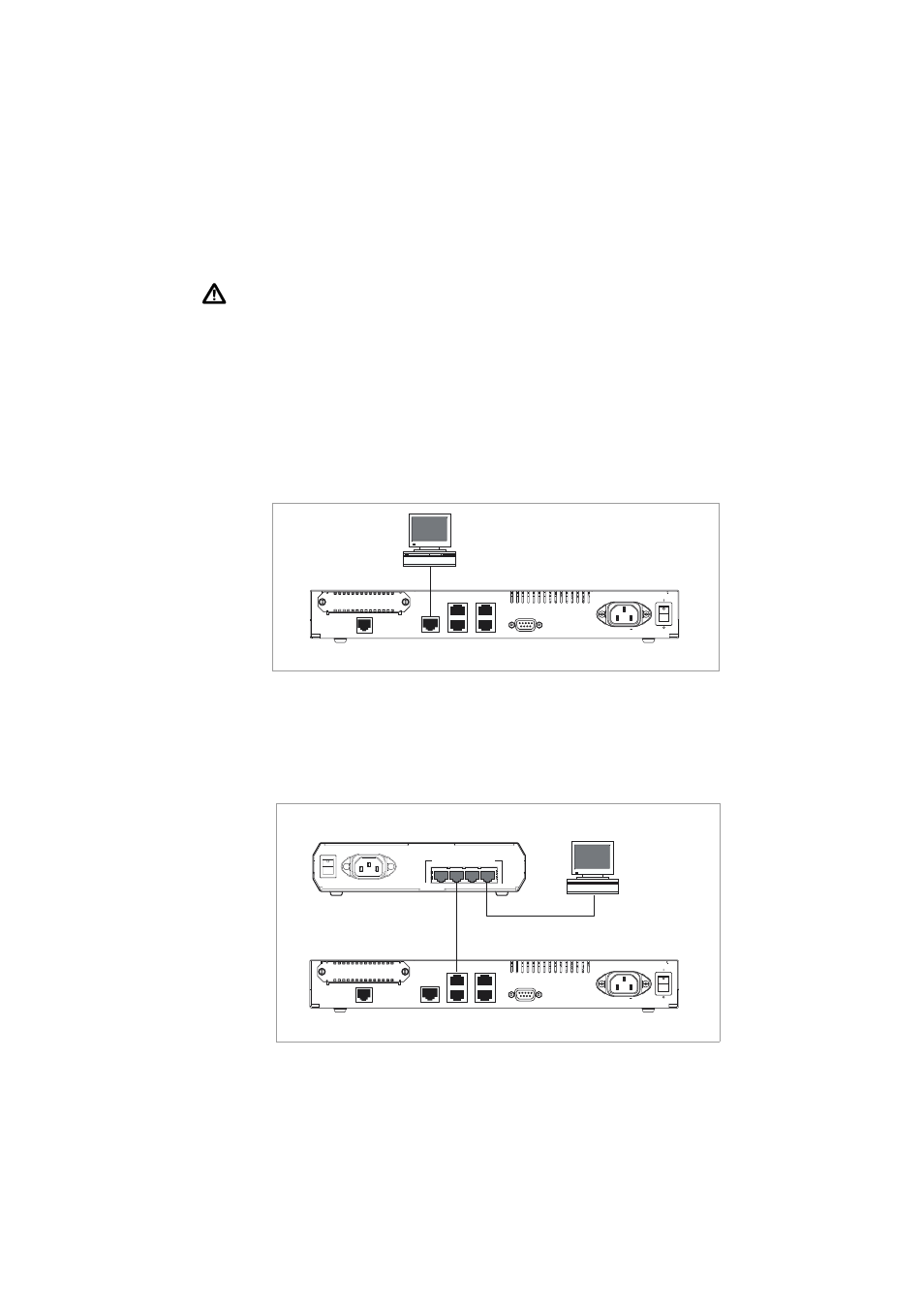

1. Connect the PC to a router switch port.
The PC can be connected directly, or through your LAN.
To connect the PC directly to the router, use a straight-through Ethernet cable
to connect an Ethernet card on the PC to any one of the router’s switch ports.
To connect via a LAN, use an Ethernet cable to connect the router’s switch
port(s) to the device(s) on the LAN. Select the LAN PC from which you wish
to configure the router. The PC should be in the same subnet as the part of the
LAN that contains the router (for example, the PC could be connected to a
hub or Layer 2 switch that is directly connected to one of the router’s switch
ports).
ON
OFF
POWER
ASYN0 ADSL
PIC BAY
5 3 1
4 2
100-240 VAC 50/60 Hz 2.1 A
AR400 Series
Switch Ports
PC
3 4 2 1
10BASE-T/100BASE-TX SWITCH PORTS
POWER
ON
OFF
ON
OFF
POWER
ASYN0 ADSL
PIC BAY
5 3 1
4 2
100-240 VAC 50/60 Hz 2.1 A
AR400 Series
PC Hub or Layer 2 Switch
Switch Ports
