Quick Install Guide 11
C613-04058-00 REV B
Configure the AR410, AR410S or AR450S using the GUI

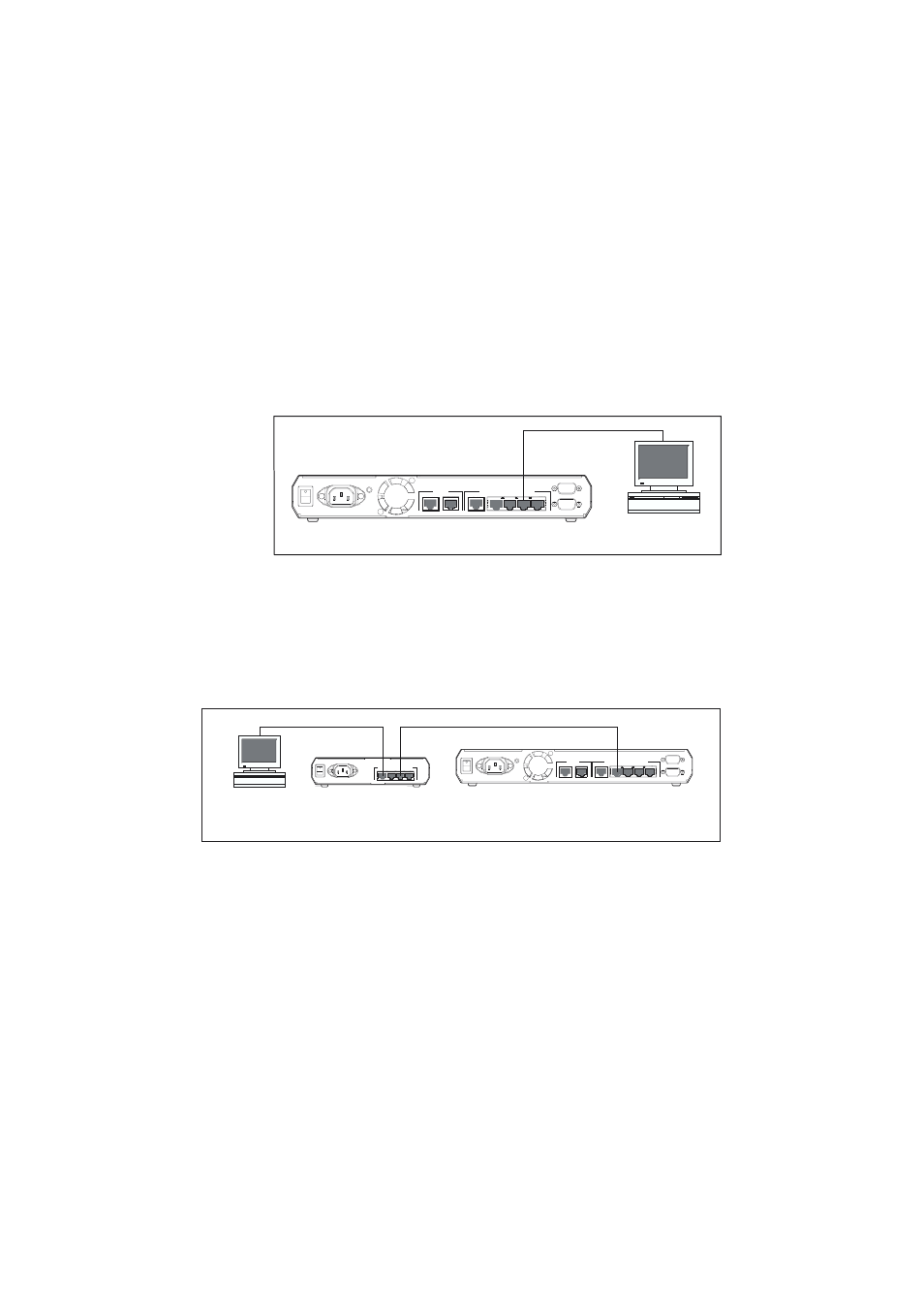

1. Connect the PC to a router switch port.
The PC can be connected directly, or through your LAN.
To connect the PC directly to the router, use a straight-through Ethernet cable
to connect an Ethernet card on the PC to any one of the router’s switch ports.
Note the PC’s IP address and mask.
To connect via a LAN, use an Ethernet cable to connect the router’s switch
port(s) to the device(s) on the LAN. Connect AR410 and AR410S routers
through port 4 and ensure that the PC/hub switch is pressed in. Select the LAN
PC from which you wish to configure the router. The PC should be in the same
subnet as the part of the LAN that contains the router (for example, the PC
could be connected to a hub or Layer 2 switch that is directly connected to one
of the router’s switch ports). Note the PC’s IP address and mask.
2. Access the CLI on the router.
Follow the instructions in the previous “Using the CLI to configure a router”
section.
3. Enable IP.
At the CLI, enter the command:
enable ip
PC
AR400 Series router
Switch Ports
POWER
ON
OFF
RS-232
ETHERNET
3 4 5 0 WAN 1 DMZ ASYN1
ASYN0 CONSOLE
2 1
10BASE-T/100BASE-TX SWITCH PORTS
straight-through cable
PC
AR400 Series Router
Switch Ports
Hub or Layer 2
Switch
3 4 2 1 10BASE-T/100BASE-TX SWITCH PORTS
POWER
ON
OFF POWER
ON
OFF
RS-232
ETHERNET
3 4 5 0 WAN 1 DMZ ASYN1
ASYN0 CONSOLE
2 1
10BASE-T/100BASE-TX SWITCH PORTS
