Easy Start Easy Start Easy Start Easy Start Easy Start
l
DSL
Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL line).
m
USB
USB port to connect to the USB port on your computer/notebook.
n
ETHERNET
10/100 Base-T Ethernet jack (RJ-45) to connect to your Ethernet Network card or
Ethernet Hub / Switch
o
RESET
To reset your ADSL Router to factory default settings. (All customised settings that you
have saved will be lost!)
Please refer to the below footer
3 on how to activate the reset function.
p
DC IN
To connect to the Power Adapter that comes with your package.

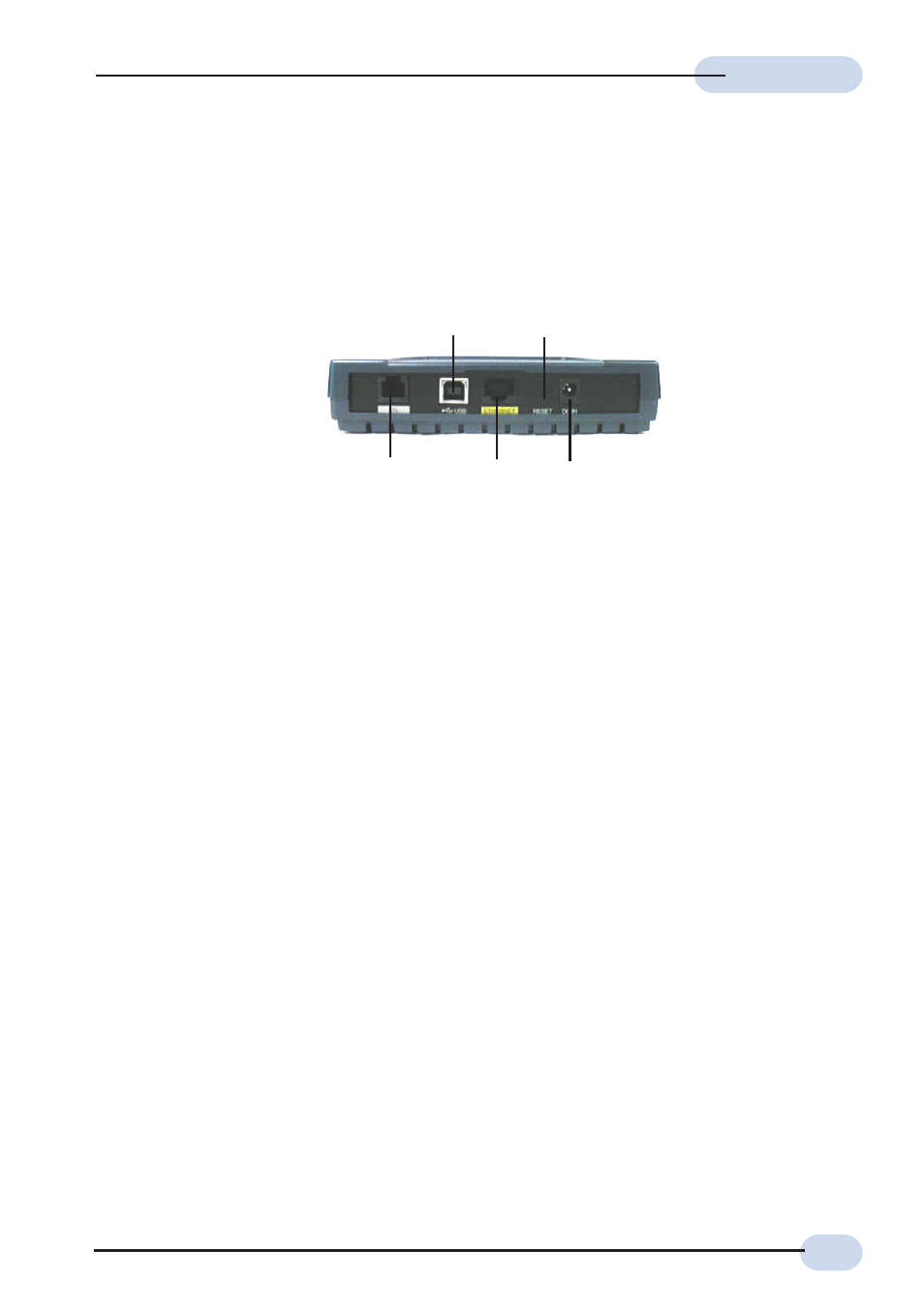

Back Panel
3 To activate the reset function:
- Ensure that your ADSL Router is powered on.
- Use a paper clip or a pencil tip to depress the reset button and release. At this point, the
DSL indicator light will go off, followed by the USB and ETHERNET indicators. The reset is in
progress.
- When the DSL indicator starts blinking, it means that the reset process is completed. The
default settings are now restored.
- ADSL line is established once the DSL indicator lights up.
m
n
o
p l
