Chapter 2: Installation
30
7. Position and hang the switch onto the wall using the two keyhole slots
located in the bottom of the switch, as illustrated in Figure 9.

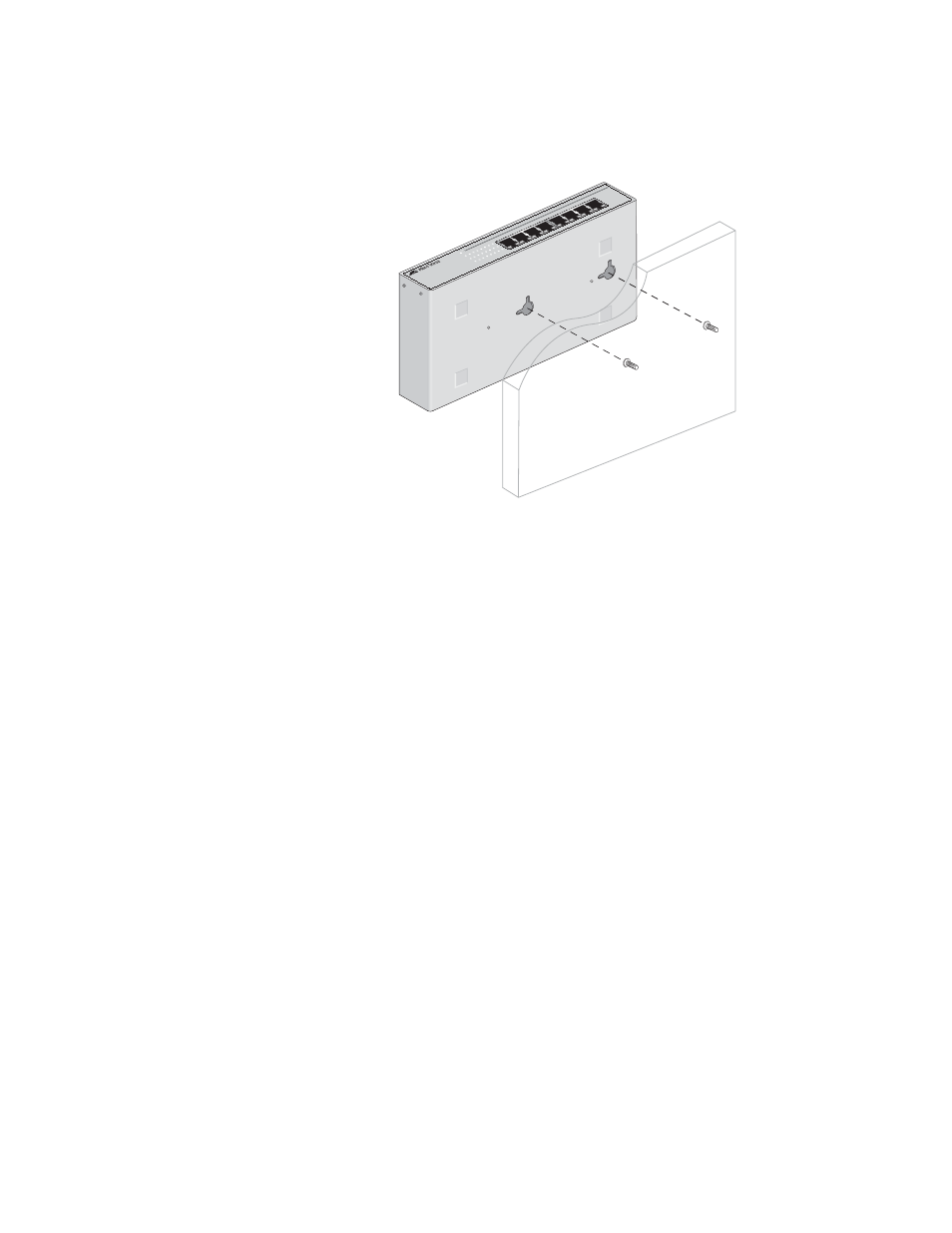

Figure 9. Wallmounting an AT-FS708 Switch
8. Make sure that the switch is securely mounted onto the wall.
The switch is now ready for cabling.
