Chapter 2: Installation
32
Installing the Switch in an Equipment Rack
To install the switch in a standard 19-inch equipment rack, perform the
following procedure:
1. If attached, remove the rubber feet using a flat-head screwdriver.
2. Install a rack-mount bracket on one side of the switch using a Phillips
screwdriver and four of the rack-mount screws included with the
switch. Figure 7 and Figure 8 illustrate installing the brackets on the
AT-FS750/16 and AT-FS750/24 Switches, respectively.

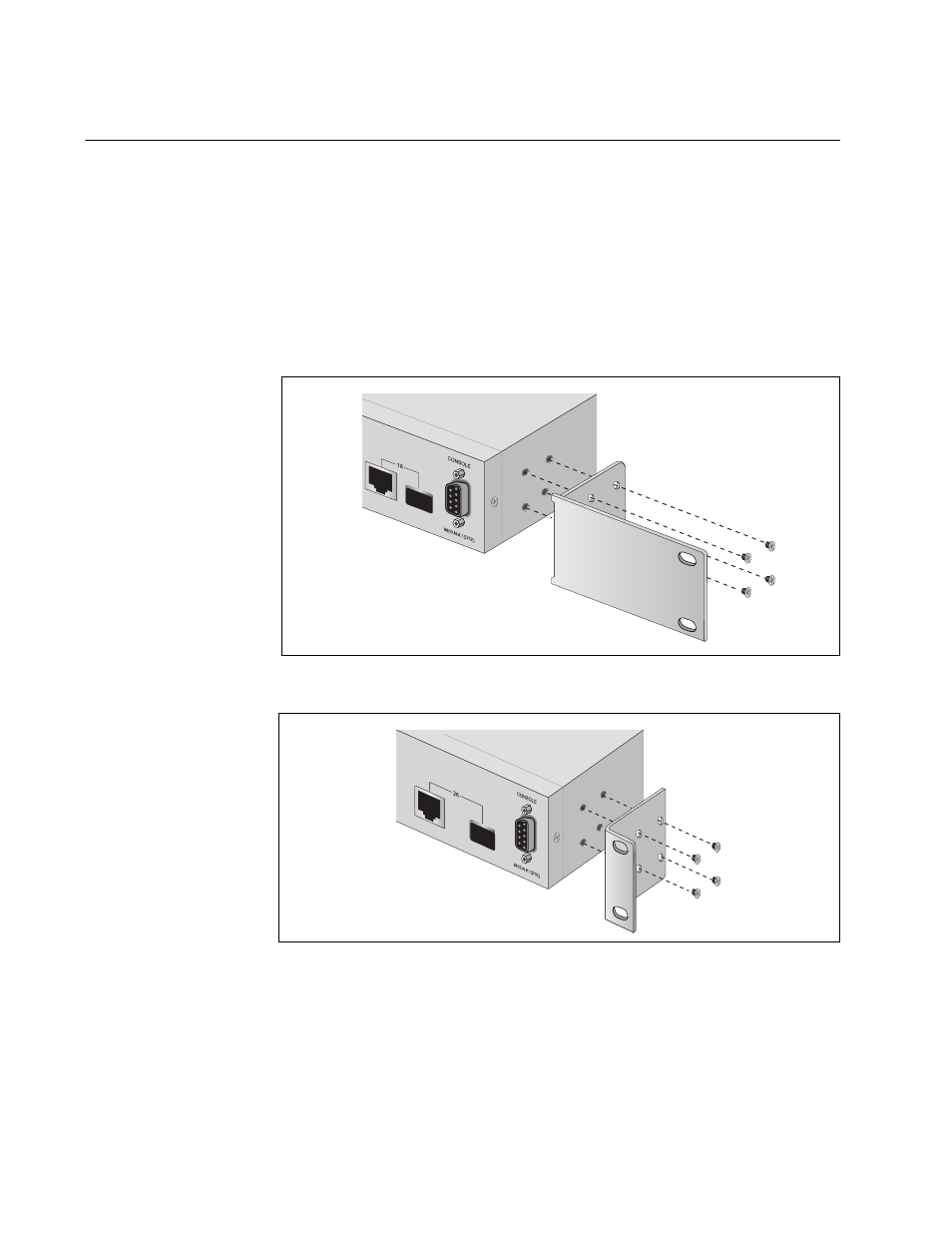

Figure 7. Attaching the Rack-Mount Bracket to the AT-FS750/16 Switch
Figure 8. Attaching the Rack-Mount Bracket to the AT-FS750/24 Switch
3. Repeat step 2 to attach the remaining bracket to the other side of the
switch.
