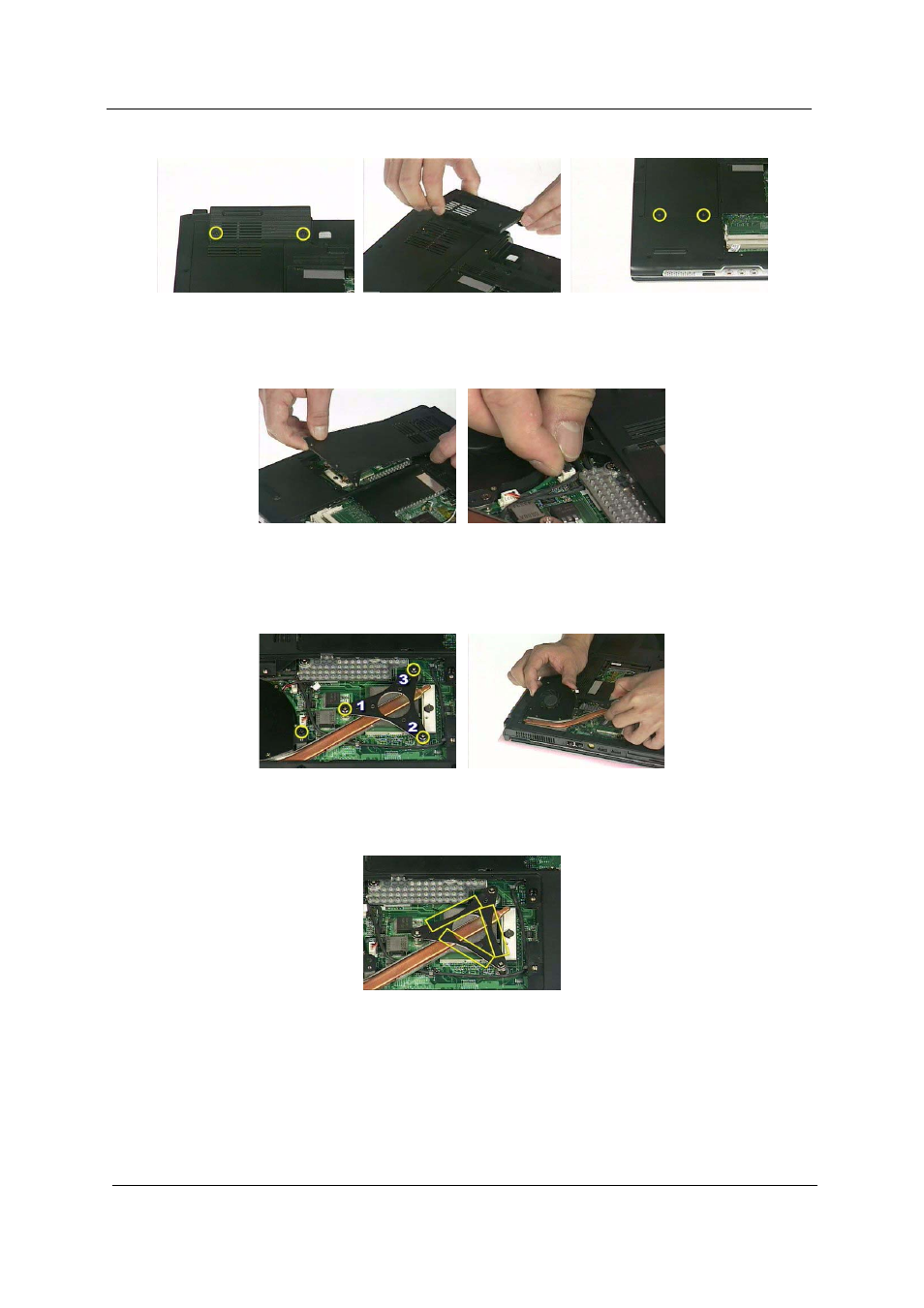

Remove the heatsink cover from the main unit.
5.
Disconnect the fan cable.
6.
Remove the four screws that secure the thermal module.
7.
Pull the thermal module outwards then remove it.
NOTE: The edge of the thermal module as shown is very sharp. Be very careful as you remove the thermal
module.
8.
Use a flat-bladed screwdriver to release the CPU lock.
9.
Remove the CPU from the socket carefully.
