AT-GS900/16, AT-GS900/24 Gigabit eco-friendly Ethernet Switch Installation Guide
21
eco-friendly
Switch
The eco-friendly switch on the front panel is multi-functional and shown in
Figure 3. It may be used to enable all the port LEDs (out position) or
conserve power by turning off the port LEDs (in position). The switch
functions are described in Table 2.

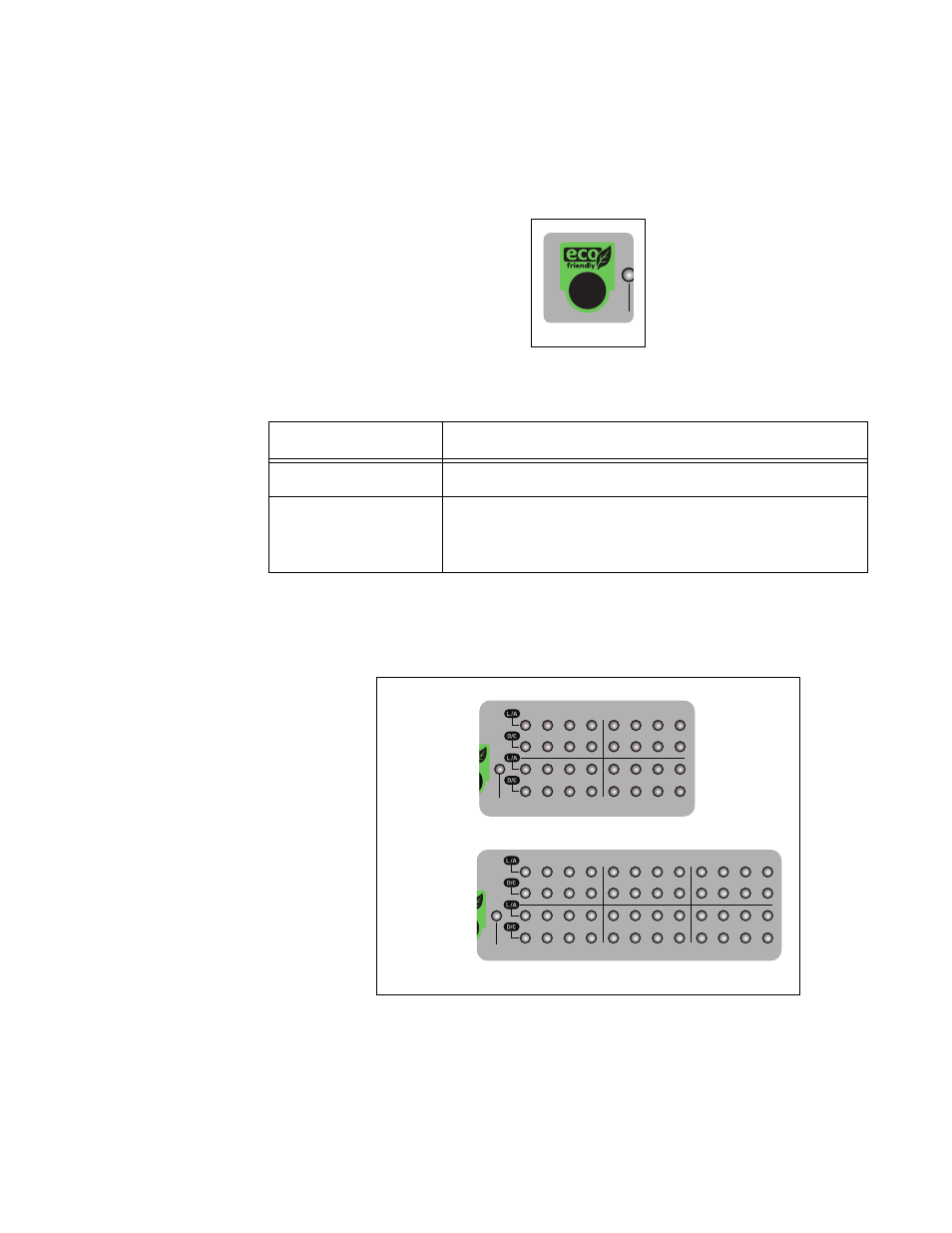

Figure 3. eco-friendly Switch
LEDs
The system and port LEDs on the front panel of the AT-GS900/16 and
AT-GS900/24 switches display the switch and its port status information.
See Figure 4. Each port has two LEDs.
Figure 4. Port LEDs
1902
POW
Table 2. eco-friendly Switch Functions
Action
Results
OFF (Out position)
All front panel LEDs are enabled.
ON (In position)
All front panel LEDs are disabled for power
conservation with the exception of the POWER LED,
which remains active at all times.
1908
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
POWER
1907
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
POWER
AT-GS900/16
AT-GS900/24
