English - 4

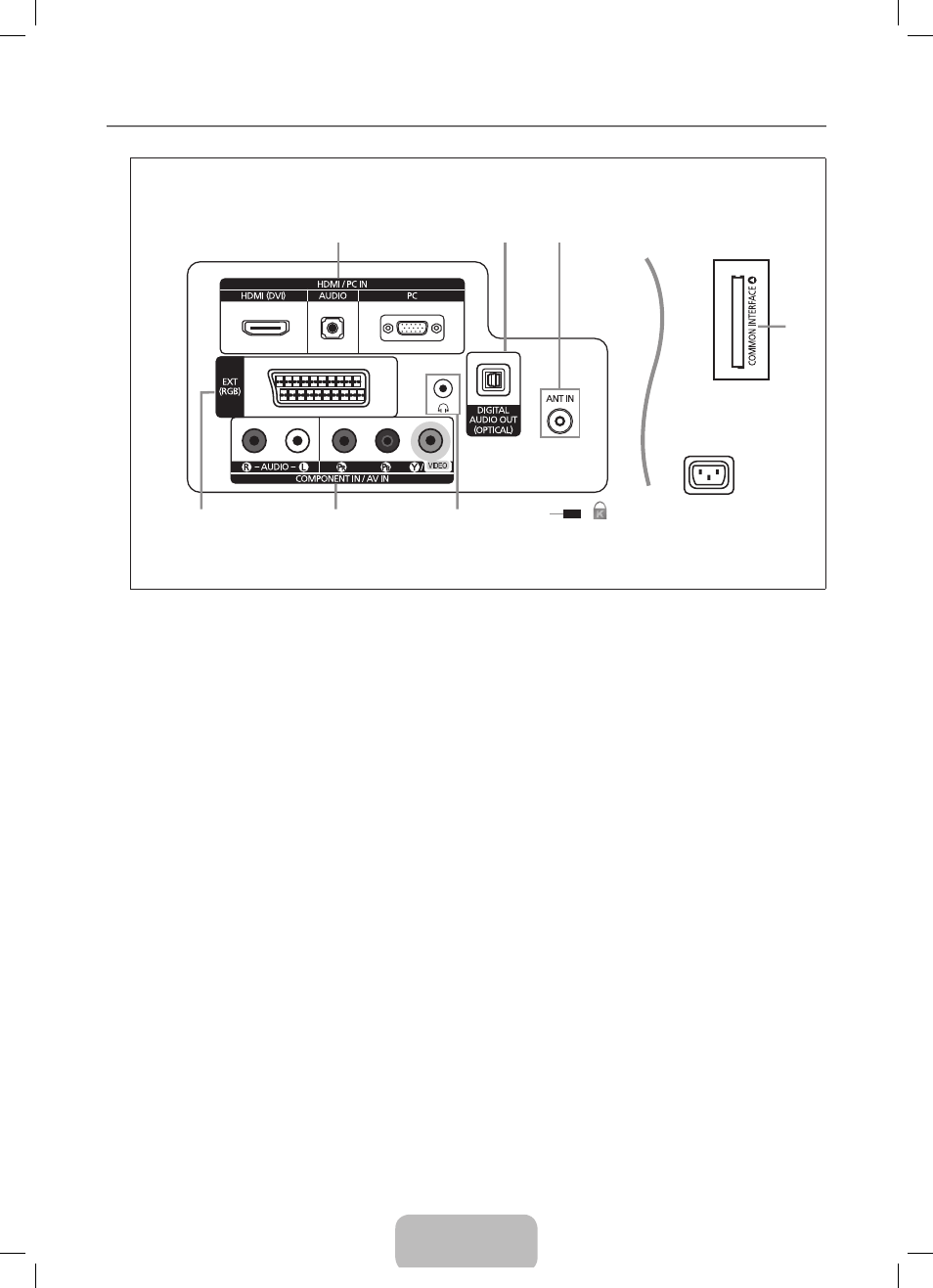

Viewing the Connection Panel
¦
The product colour and shape may vary depending on the model. N
Whenever you connect an external device to your Tv, make sure that power on the unit is turned off. N
When connecting an external device, match the colour of the connection terminal to the cable. N
1 HDMI/PC IN [HDMI(DVI)]
Connects to the HdMI jack of a device with an HdMI output. –
No additional Audio connection is needed for an HDMI to HDMI connection. N
What is HdMI? N
‘High definition Multimedia interface’ allows the transmission of high definition digital video data and multiple channels of
digital audio.
The difference between HdMI and dvI is that the HdMI device is smaller in size and has the HdCP (High Bandwidth
digital Copy Protection) coding feature installed.
Use the N HDMI/PC IN [HDMI(DVI)] jack for dvI connection to an external device. Use a dvI to HdMI cable or
DVI-HDMI adapter (DVI to HDMI) for video connection and the HDMI/PC IN [AUDIO] jacks for audio.
When using an HdMI / dvI cable connection, you must use the HDMI/PC IN [HDMI(DVI)] jack.
HDMI/PC IN [AUDIO]
Connect to the audio output jack on your PC. –
DVI audio outputs for external devices. –
HDMI/PC IN [PC]
Connect to the video output jack on your PC. –
If your PC supports an HdMI connection, you can connect this to the N HDMI/PC IN [HDMI(DVI)] terminal.
If your PC supports a dvI connection, you can connect this to the N HDMI/PC IN [HDMI(DVI)] / [AUDIO] terminal.
2 DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component such as a Home theatre receiver. –
When the HdMI IN jacks are connected, the N DIGITAL AUDIO OUT (OPTICAL) jack on the Tv outputs 2 channel audio
only. If you want to hear 5.1 channel audio, connect the Optical jack on the dvd / Blu-ray player or Cable / Satellite Box
directly to an Amplifier or Home Theatre, not the Tv.
[Tv rear Panel]
1 2 3
7 6 8
4
5
Power Input
[Tv Side Panel]
