4 5
2.0 CHECKING PACKAGE CONTENTS
Before connecting the HDP-11, please make certain the following
items are in the shipping carton. (If you purchased the 1381T or 1381R
separately, ignore irrelevant items.)
• 1381T Transmitter
• 1381R Receiver
• 5V DC Power Adapter
• User Manual
3.0 INSTALLATION
Before connecting the HDP-11 Cat 5 extender system, verify that the
display device on the receiving end can support the output resolution and
signal format by connecting it directly to the source device via a short,
known good, HDMI cable.

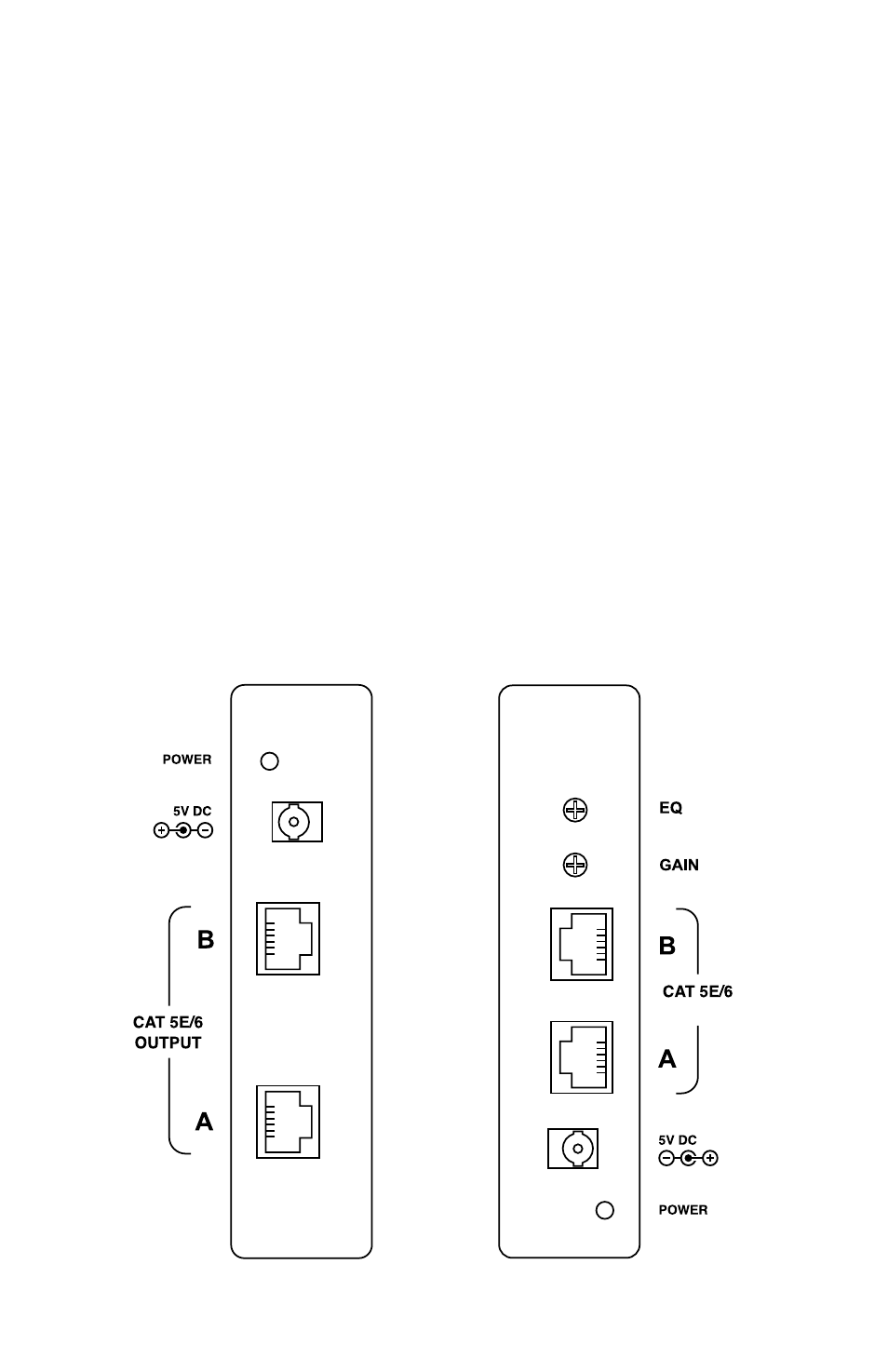

The panel drawings below show the Cat 5 signal output/input
connections, power connections and adjustable controls. (The HDMI
input and output jacks on opposite end of each unit are not shown.)
Note: Please retain the original packing material
in case you need to return the unit. If you find
any items are missing, contact Audio Authority
immediately. Have the model number and invoice
available for reference when you call.
Transmitter Model 1381T Receiver Model 1381R
INPUT
