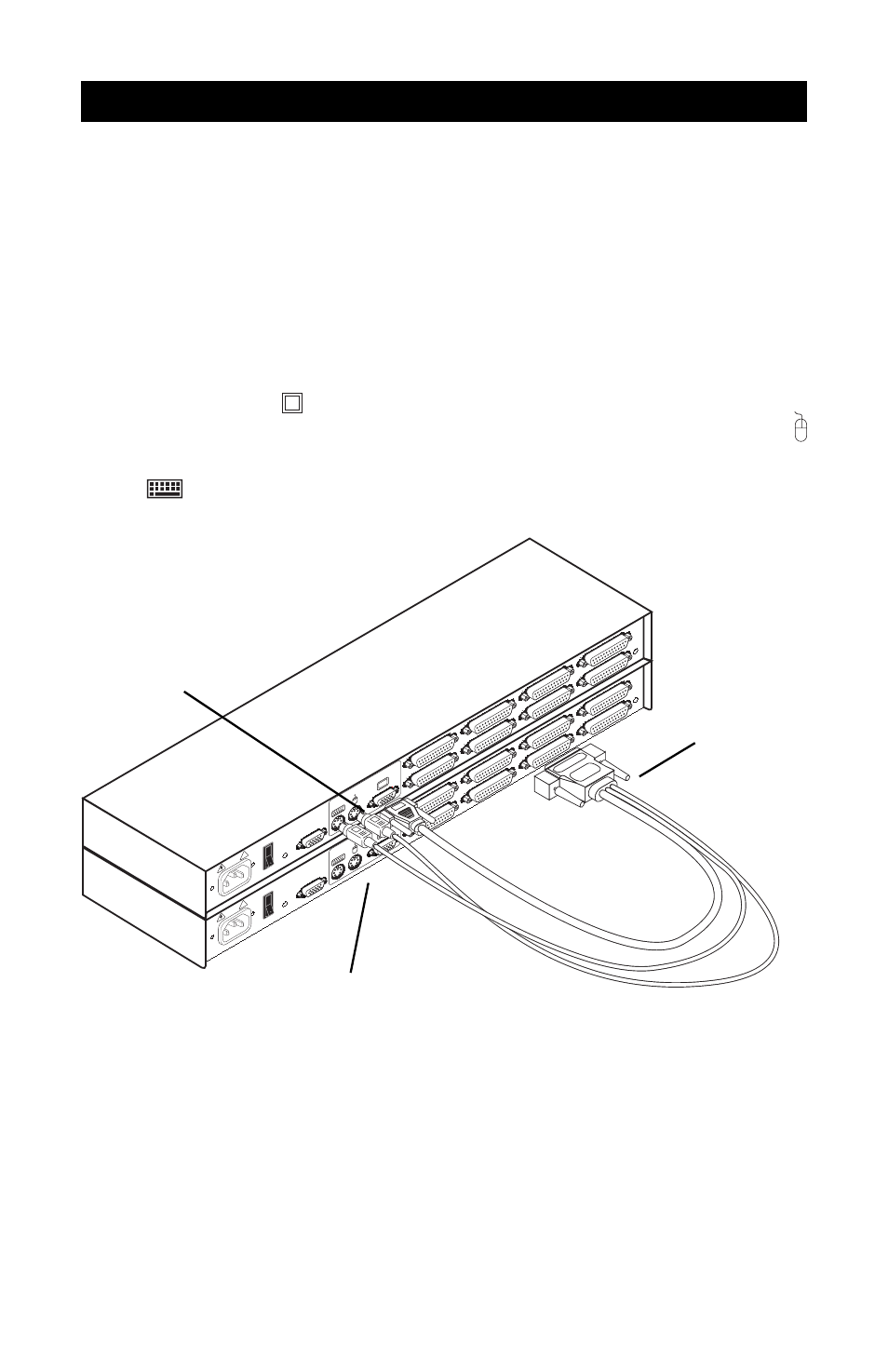

Attaching Multiple APC KVM Switch Units
1. Follow steps 1-6 of the Basic Installation section.
2. Plug the 25-pin “D” connector of your input cable into any avail-
able channel port on the rear of your base switch unit.
3. Plug the 15-pin video connector on the other end of the cable into
the port labeled on your first cascading KVM switch unit. Plug
the PS/2 mouse connector, designated by a mouse icon, into the
port. Plug the remaining 6-pin miniDIN keyboard connector into
the
port.
4. Repeat steps 2-3 for every cascaded switch unit in your system.
5. Power-up your switch unit(s) first, then all attached computers.
100-240V ,
.1A,
50/60 Hz
A
E
B
F
C
G
D
H
P A TENT PENDING
MADE IN USA
1
0
!
USER
100-240V ,
.1A,
50/60 Hz
A
E
B
F
C
G
D
H
P A TENT PENDING
MADE IN USA
1
0
!
USER
PAIRING
PAIRING
VGA VIDEO
CONNECTOR
PS/2 KEYBOARD
CONNECTOR
PS/2 MOUSE
CONNECTOR
CASCADING
UNIT
BASE UNIT
2.3 Advanced Installation
7
