How to Install the Rack PDU
4 Switched Rack PDU Installation and Quick Start

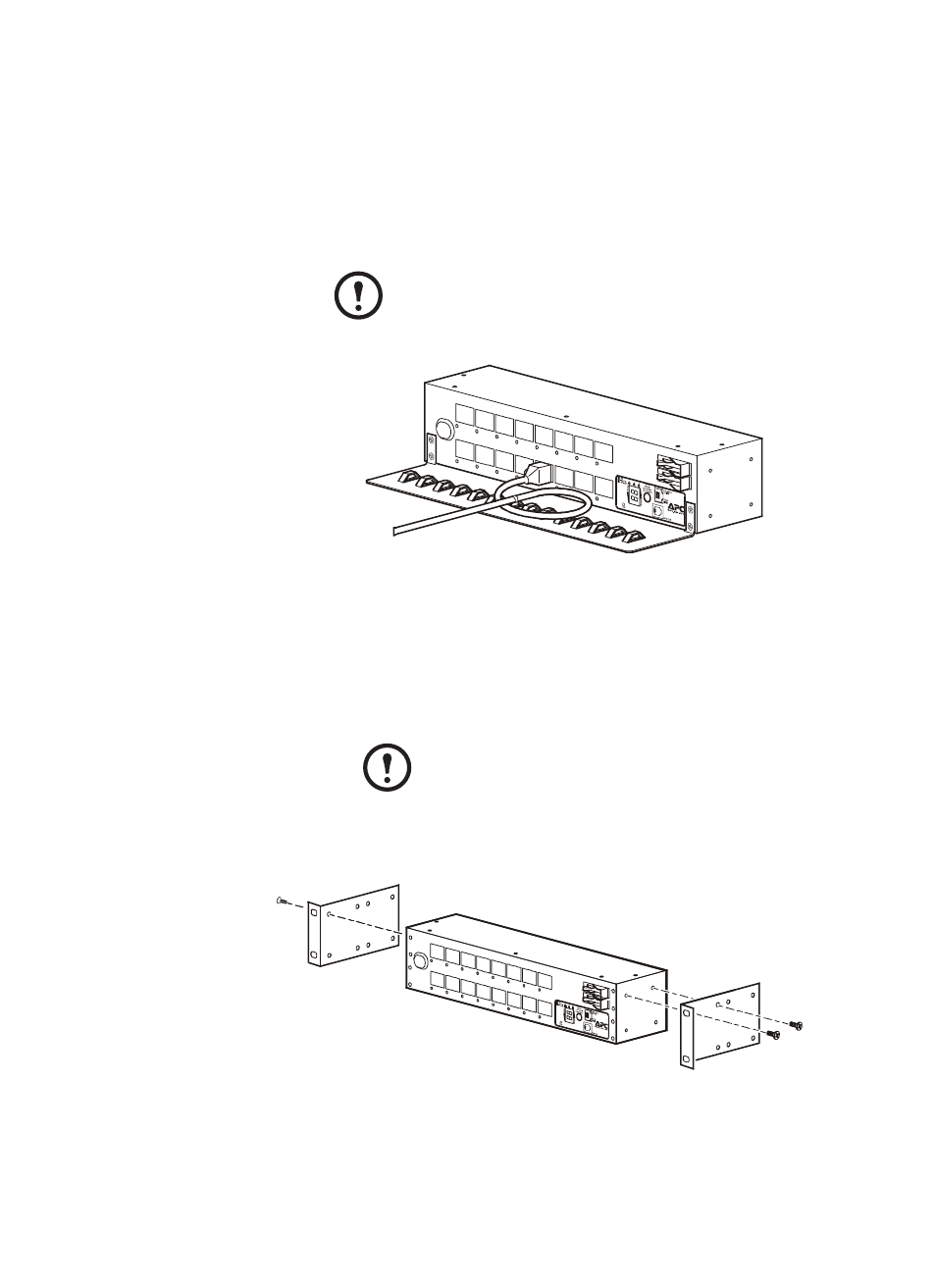

Attach cords to the tray
Attach a cord to the tray by looping the cord and securing it to the tray,
using a wire tie (provided). Cords from both banks of outlets may be
secured to the bottom tray, or you may attach an additional tray (shown
on the preceding page) to secure cords from the top bank of outlets.
Make sure the cords that are attached to the upper tray do not interfere
with the operation of the circuit breakers.
Mounting options You can install the Rack PDU in one of two ways: flush with the rack, or
recessed to allow the use of the cord retention bracket. To mount the
Rack Rack PDU horizontally in a NetShelter
®
or any other standard
EIA-310 rack or enclosure:
1. Attach the mounting brackets to the Rack PDU, using the flat-head
screws (provided).
For placement flush-to-rack: use four flat-head screws (provided)
for each bracket.
Note
Each cord must be secured to the tray so that you can unplug
it from the Rack PDU without removing the wire tie.
Note
Some enclosures may require you to recess the Rack
PDU so that the back doors of the enclosure will close
when other devices are plugged in to the Rack PDU.
