Technical Data Cables - Page 61

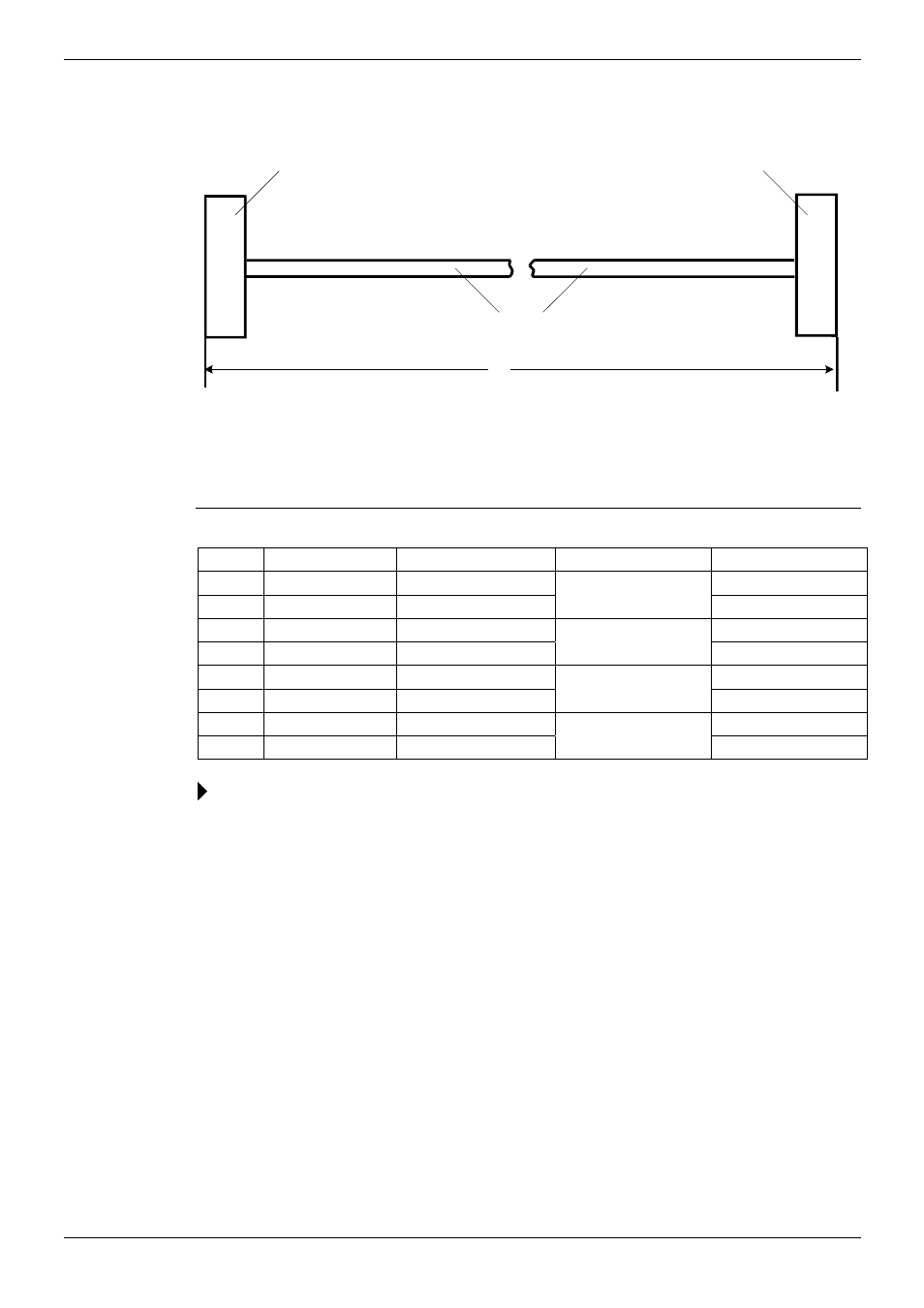

Expansion Interconnect Cable
SAP Code:- 700213457
Supply: One per Expansion Module.
A B
C
D
A Shielded RJ45 Plug.
B Shielded RJ45 Plug.
C STP (Shielded Twisted Pair) cable - BLUE.
D 1 meter.
Pin Connections
End A Name Color Cable Notes End B
1 Rx-A White/Orange 1
2 Rx-B Orange/White
Twisted Pair
2
3 Sync-A White/Green 3
6 Sync-B Green/White
Twisted Pair
6
4 Clock-A Blue/White 4
5 Clock-B White/Blue
Twisted Pair
5
7 Tx-A White/Brown 7
8 Tx-B Brown/White
Twisted Pair
8
The RJ45 Plug Shell at each end of the cable is connected to the STP Cable Drain Wire.
