Installing a New System
Initial Assembly - Page 41
Dual Modem Module
An optional Dual Modem Module (see pages 14, 18 and 22) is fitted to an IP Office base unit as
follows:

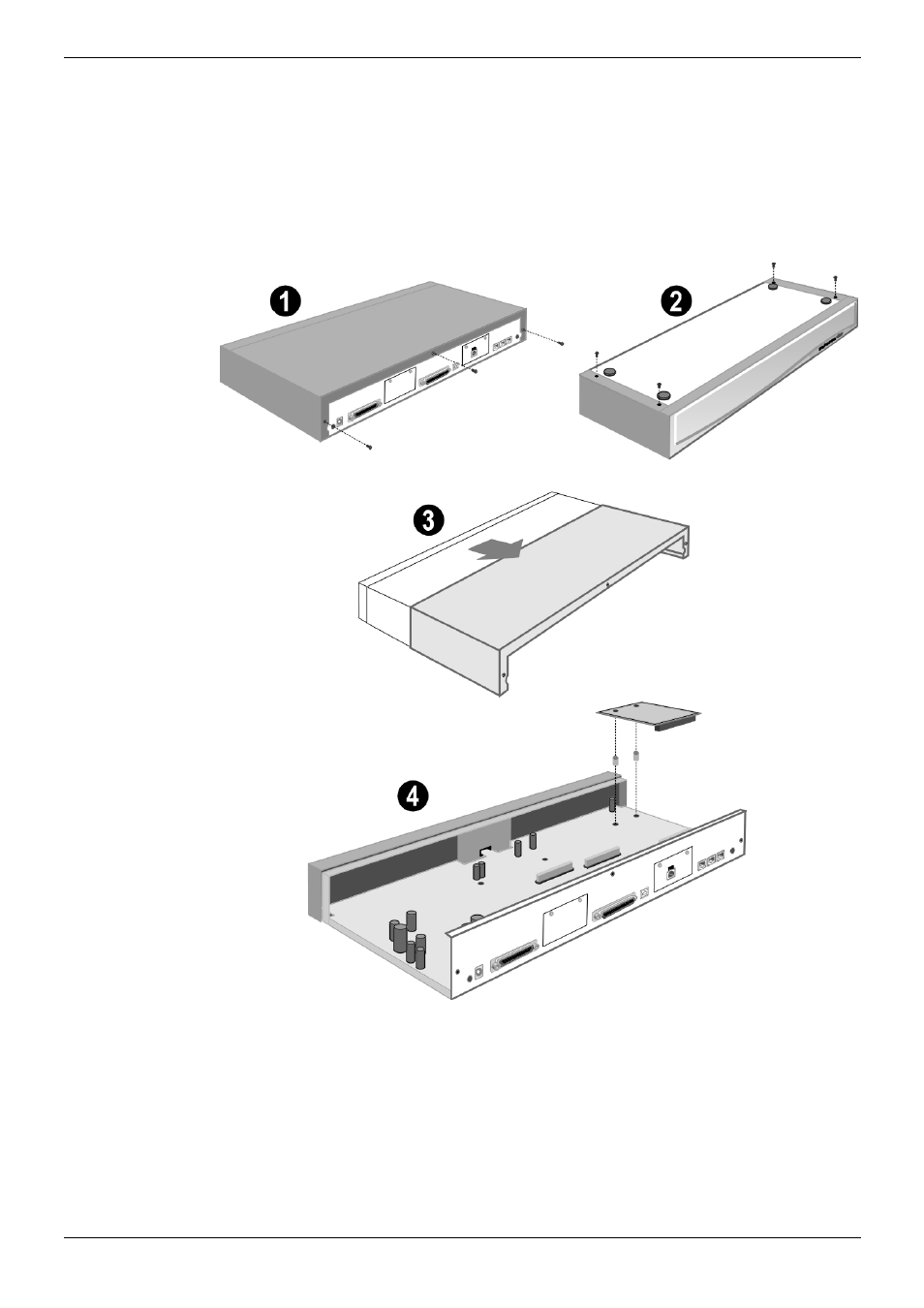

Procedure
1. Remove the three fixing screws on the rear of cover.
2. Turn the unit over and remove the four fixing screws from the base.
3. Slide the cover from the unit.
4. Mount the module in position as shown below and secure with the two snap-in spacers.
5. Replace the cover and secure with the seven fixing screws.
Caution:
While installing, ensure that you wear a ground wrist strap that is connected
to a suitable grounding point.
IP Office Installation Manual
Installing a New System - Page 41
40DHB0002USCL – Issue 7 (09/25/2002)
Initial Assembly
