Dt line cord for structured cabling, Pin connections – Avaya IP OFFICE 40DHB0002USCL User Manual
Page 56
Page 56 - Cables
Technical Data

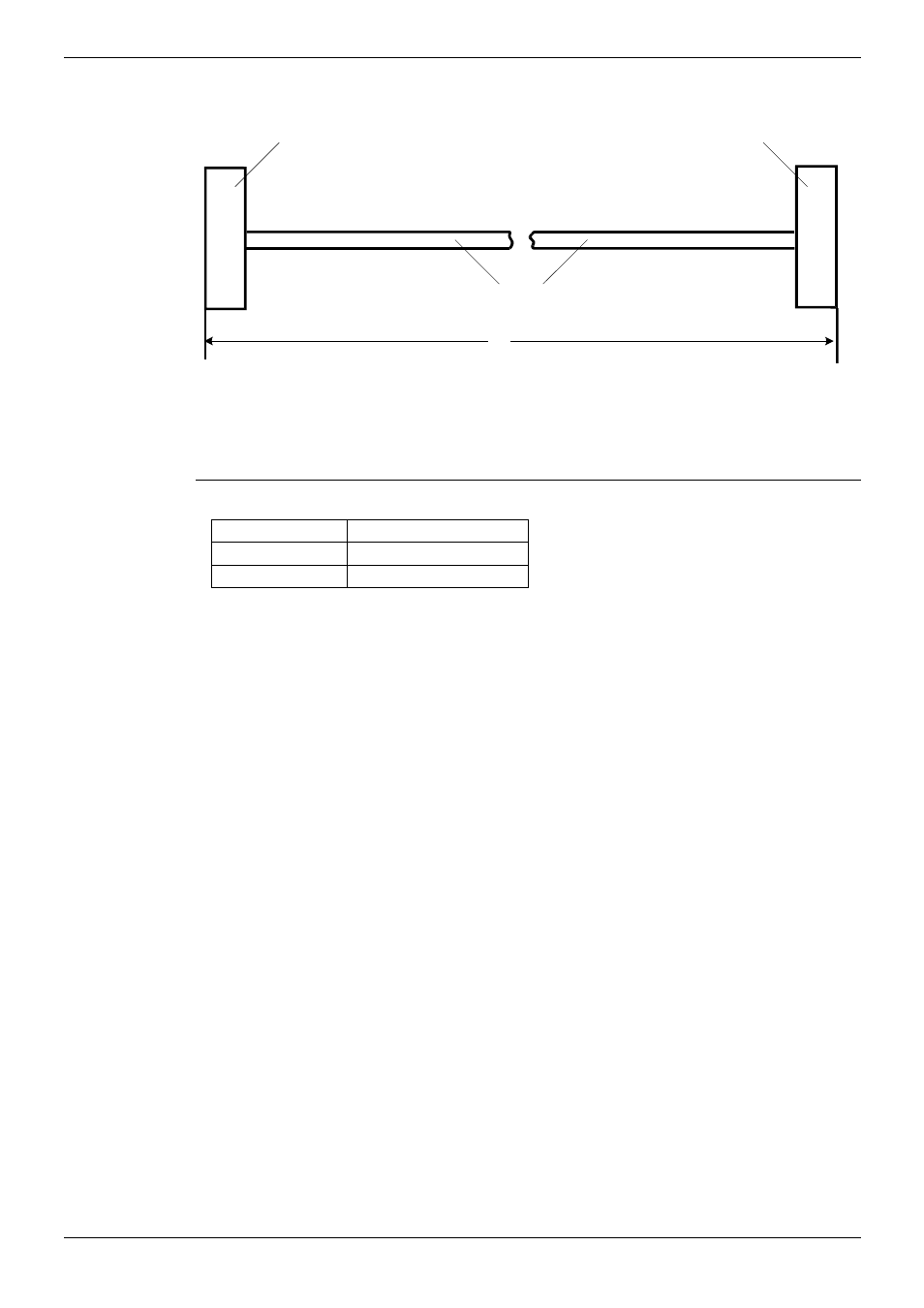

DT Line Cord for Structured Cabling
SAP Code.:- 700047871
A
B
C
D
A RJ11 Plug.
B RJ45 Plug.
C Cable.
D 4 meters.
Pin Connections
RJ11 Pin Number RJ45 Pin Number
3 5
4 4
Caution: Other connections may be present in cables and or structured cabling.
For 4450DS modules, this cable can be used to connect the module’s PSU Line socket
and the structured cabling. The PSU’s Tel socket must only be connected to the Line
socket of the associated 4424D telephone using the D4BU cable supplied with the PSU.
This cable can be used to replace the RJ11 to BT Newplan plug that is attached to the 20 series
telephones to allow connection to structured cabling.
Page 56 - Technical Data
IP Office Installation Manual
Cables
40DHB0002USCL – Issue 7 (09/25/2002)
