AVerMedia User’s Manual

EYES Pro/MP2016/MP3000/MP5000

79

8 EYES Pro/MP3008/MP5008

8 EYES Pro/MP3008/MP5008 provides

1-Camera Display,

1-

Camera Enlarged Display,

4-Camera Display,

6-Camera

Display,

8-Camera Display,

9-Camera Display,

Full-

Screen Display and

Start/Stop AutoScan.

16 EYES Pro/MP2016/MP3016/MP5016

16 EYES Pro/MP2016/MP3016/MP5016 provides

1-Camera

Display,

1-Camera Enlarged Display,

4-Camera Display,

6-Camera Display,

8-Camera Display,

9-Camera Display,

10-Camera Display,

12-Camera Display,

13-Camera Display,

16-Camera Display,

Full-Screen Display and

Start/Stop

AutoScan.

Display Modes

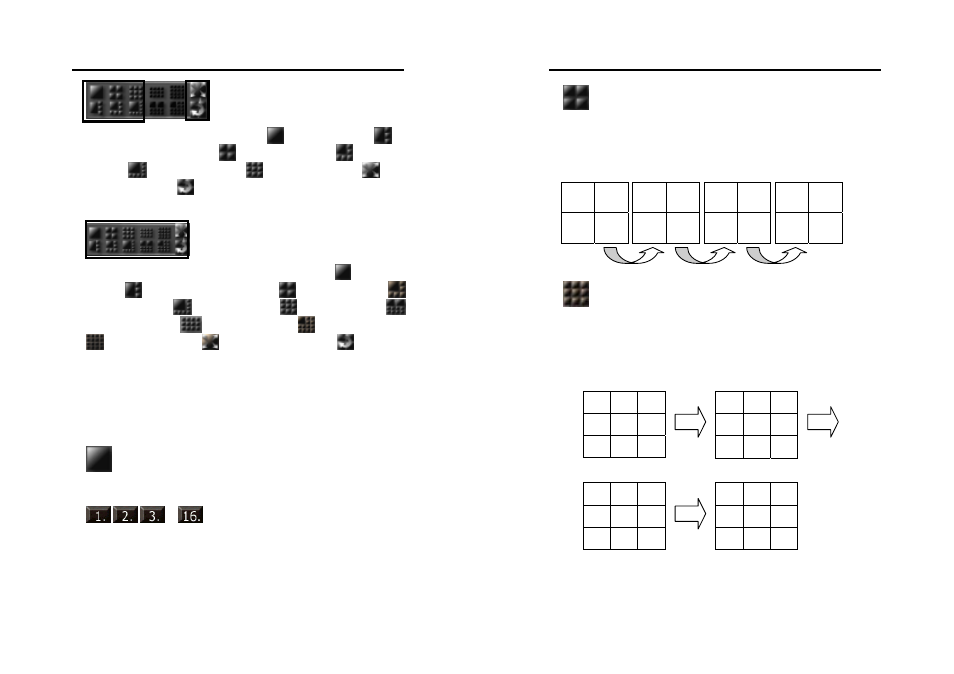

Each display mode is illustrated in the grids below. Numbers in the
grids represent the camera number.

1-Camera Display

Click this button to view image from a single camera. If you have
more than one camera installed, you can click any number

(Focus Camera) to switch to a specific

camera.

AVerMedia User’s Manual

EYES Pro/MP2016/MP3000/MP5000

80

4-Camera Display

Click this button to split the screen into a 4-camera display. The
screen will first display cameras 1~4. Click it again changes the
display to cameras 5~8. Further clicking will change the display to
cameras 9~12, 13~16, 1~4, and so on. See the following sequence.

9-Camera Display

Click this button to split the screen into a 9-camera display. The
screen will first display the camera 1~9. Click it again changes the
display to camera 5~13. Further clicking will change the display to
cameras 9~1, 13~5, 1~9, and so on. See the following sequence.

9 10

11 12

1 2

3 4

5 6

7 8

13 14

15 16

5 6 7

8 9 10

11 12 13

1 2 3

4 5 6

7 8 9

9 10

11

12 13 14

15 16 1

13 14 15

16 1 2

3 4 5
