IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subject to.
All hoses should be checked on a yearly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp and by removing the shipping tape.
Install the drain hose into the drain receptacle
(standpipe, wall or laundry tub) following the
instructions below.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (3.2 cm) outside
diameter drain hose.
Standpipe Installation:
Place the drain hose into the standpipe.
Remove the beaded strap from accessories bag and
place around standpipe and drain hose and tighten
strap to hold hose to standpipe. Refer to Figure 5. This
will prevent the drain hose from dislodging from drain
receptacle during use.

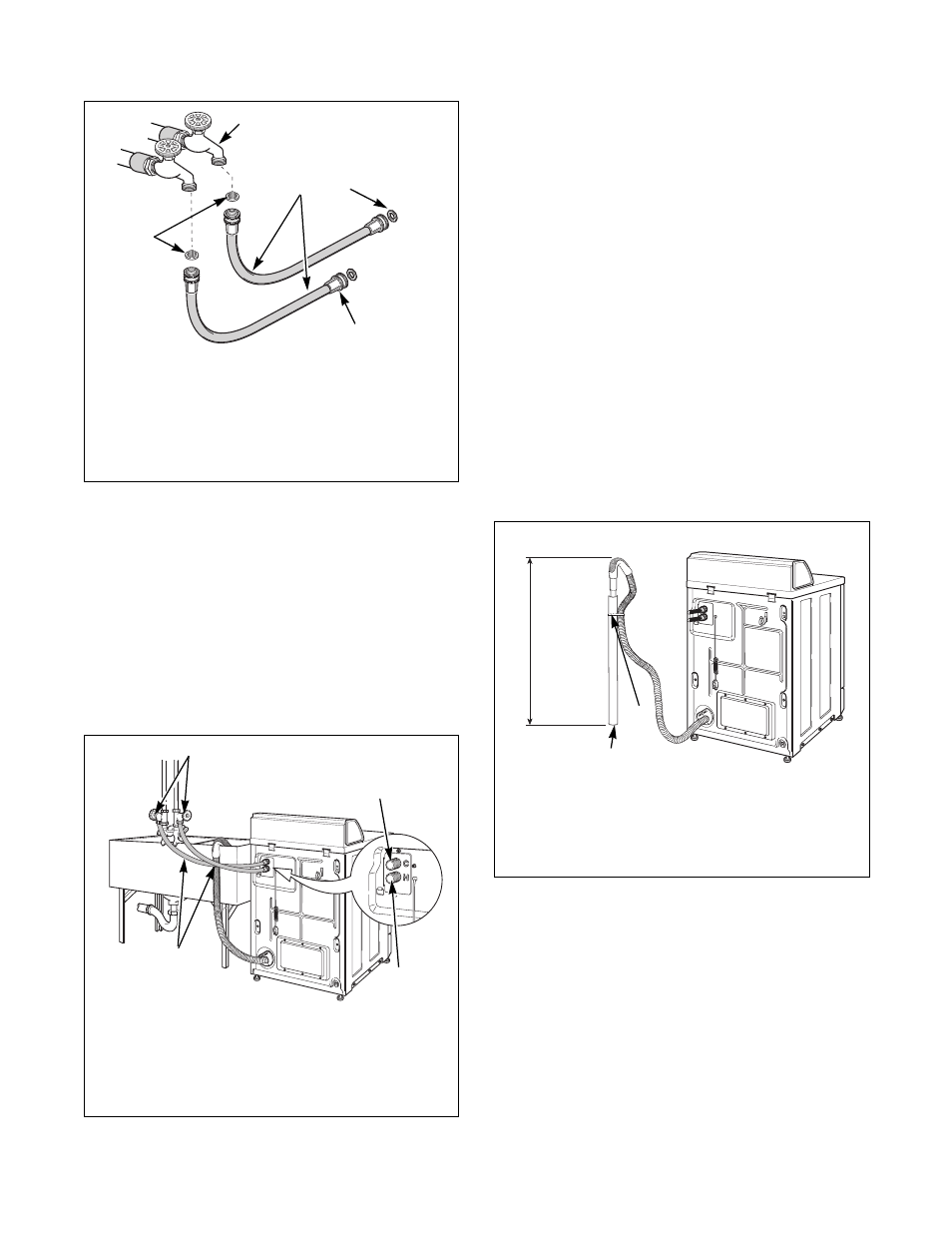

TLW1976N
1 Water Faucet
2 Fill Hose
3 Plain Rubber Washer
4 Hose Coupling
5 Filter Screens
Figure 3
FLW1990N
1 Water Faucets
2 Cold Water Connection
3 Hot Water Connection
4 Fill Hoses
Figure 4
HOT
COLD
3
1
5
2
4
FLW1990N
1
2
3
4
FLW1992N
1 24 in. (61 cm) to 36 in. (91.44 cm) (36 in.
[91.44 cm] recommended height)
2 Standpipe - 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
3 Beaded Strap
Figure 5
FLW1992N
1
2
3
