English - 10

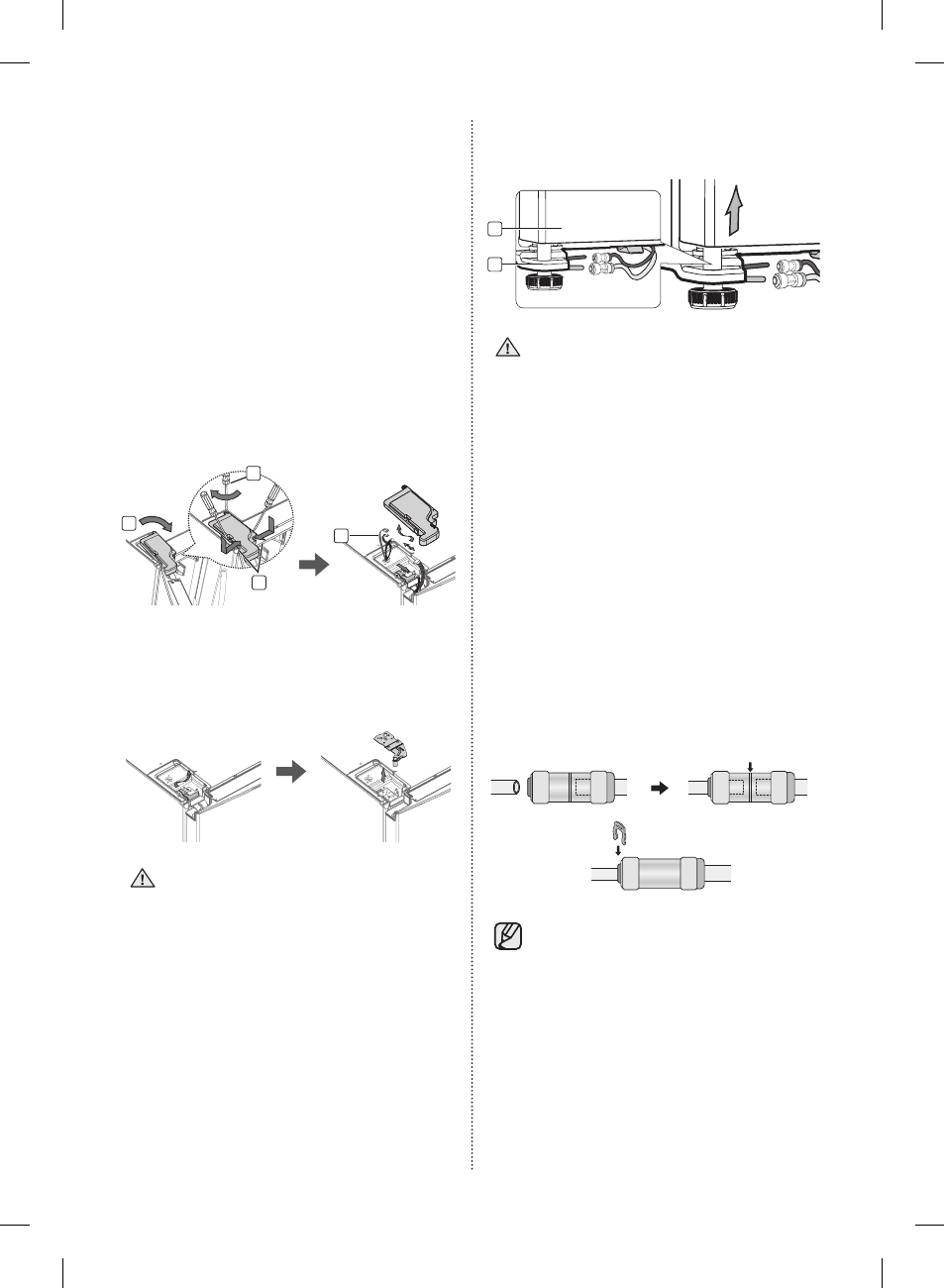

Removing the freezer door
A few things to mention first.
• Make sure that you lift the door straight up so
the hinges are not bent or broken.
• Be careful not to pinch the water tubing and
wire harness on the door.
• Place doors on a protected surface to prevent
scratching or damage.
1. Remove a screw on the upper hinge cover
( 1 ). With the door open, disengage the two
locking tabs with a flat-head screw driver ( 2 )
and remove it while the lifting up the rear of the
cover (
3 ), and then disconnect the wires by
gently pulling them apart ( 4 ).
4
3
2
1
2. Removing the FIXER HINGE ,and next take off
the upper hinge.
Be careful that the door does not fall on you as
you are removing it.
Be sure to keep track of all parts you are
removing.
3. Next, remove the door from the lower hinge
( 5 ) by carefully lifting the door straight up ( 6 ).
6
5
Be careful not to pinch the water tubing
and wire harness on the door.
Reattaching the freezer doors
To reattach the freezer doors, replace parts in
reverse order.
Reattaching the Water Supply Line
1. The Water Line must be fully Inserted to the
center of transparent coupler to prevent water
leakage from the dispenser.
2. Insert the 2 clips in the install pack and check
that each clip holds the line firmly.
Center of transparent coupler
Clip A (¼”) (6.35 mm)
Do not cut the water line.
Gently separate it from the coupler.
