English - 4
1 AUDIO OUT
Connects to the audio input jacks on your Amplifier/
Home theater.
2
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
3
EX-LINK
�ervice connection for qualified service engineer.
4 PC IN
Connects to the video and audio output jacks on your
PC.
5
HDMI IN 1,2, /DVI IN(HDMI1) (AUDIO R/L)
Connects to the HDMI jack of a device with an HDMI output.
Use the HDMI IN 1 jack for DVI connection to an
external device.
Use a DVI to HDMI cable or DVI-HDMI adapter
(DVI to HDMI) for video connection and the DVI IN
(HDMI1) ‘R-AUDIO-L’ jacks for audio.
- No sound connection is needed for an HDMI to HDMI
connection
- When using an HDMI/DVI cable connection, you must use
the HDMI IN 1 jack.
6 ANT 1 IN/ANT 2 IN
Connects to an antenna or cable TV system.
7
AV IN 1, AV IN 2
Video and audio inputs for external devices, such as a
camcorder or VCR.
S-VIDEO
Connects an �-Video signal from a camcorder or VCR.
8 HEADPHONE
Connects a set of external headphones for private
listening
9
SERVICE
Connector for software upgrades (see page 62).
0
POWER INPUT
Connects the supplied power cord
!
COMPONENT IN 1,2
Connects Component video/audio.
@
KENSINGTON LOCK
The Kensington lock (optional) is a device used to
physically fix the system when used in a public place.
If you want to use a locking device, contact the dealer
where you purchased the TV.
The location of the Kensington Lock may be different
depending on your TV.

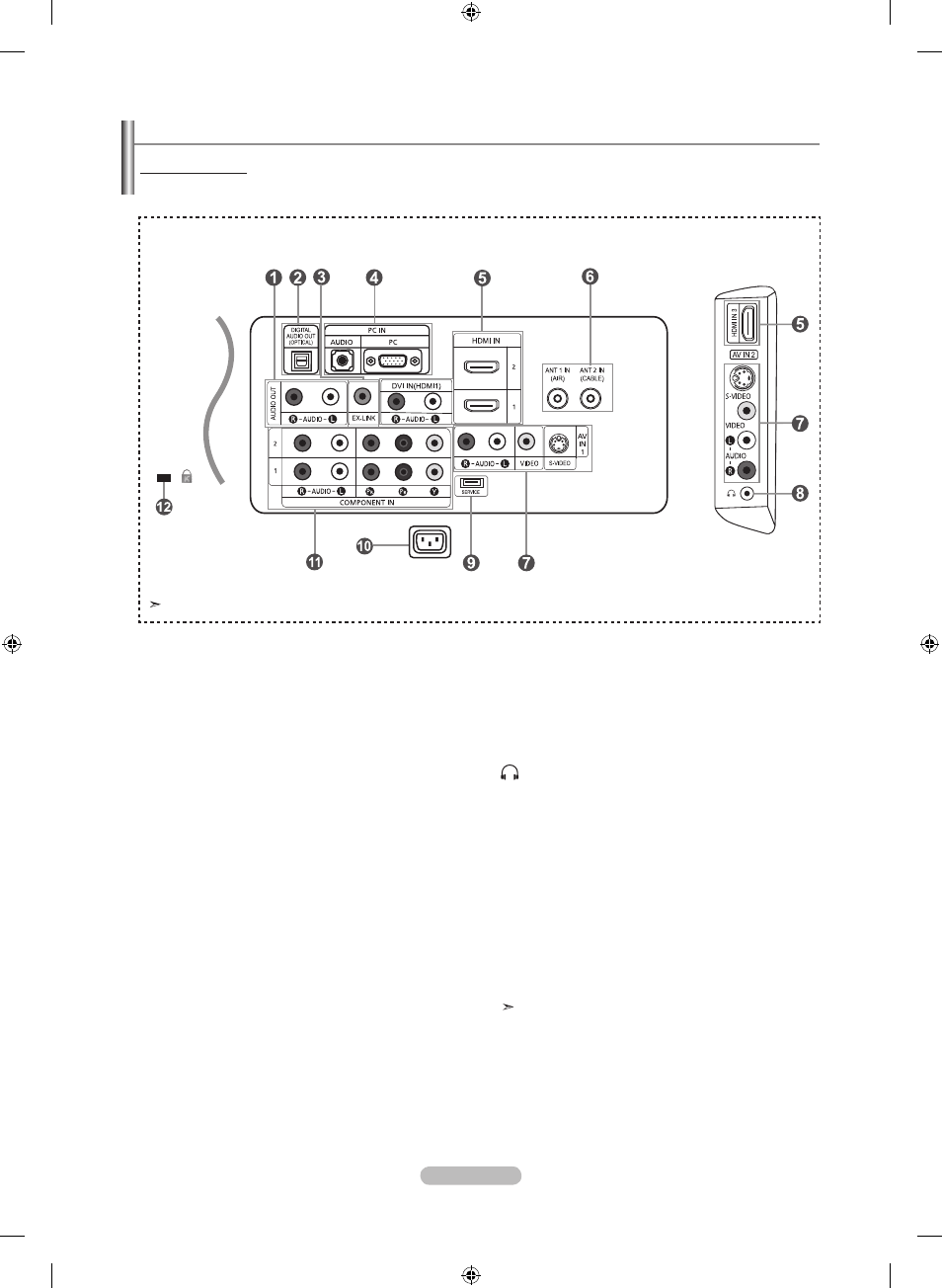

Viewing the Connection Panel
Rear Panel Jacks
Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players.
For more information on connecting equipment, see pages 6-12.
[Side Panel Jacks]
The product color and shape may vary depending on the model.
