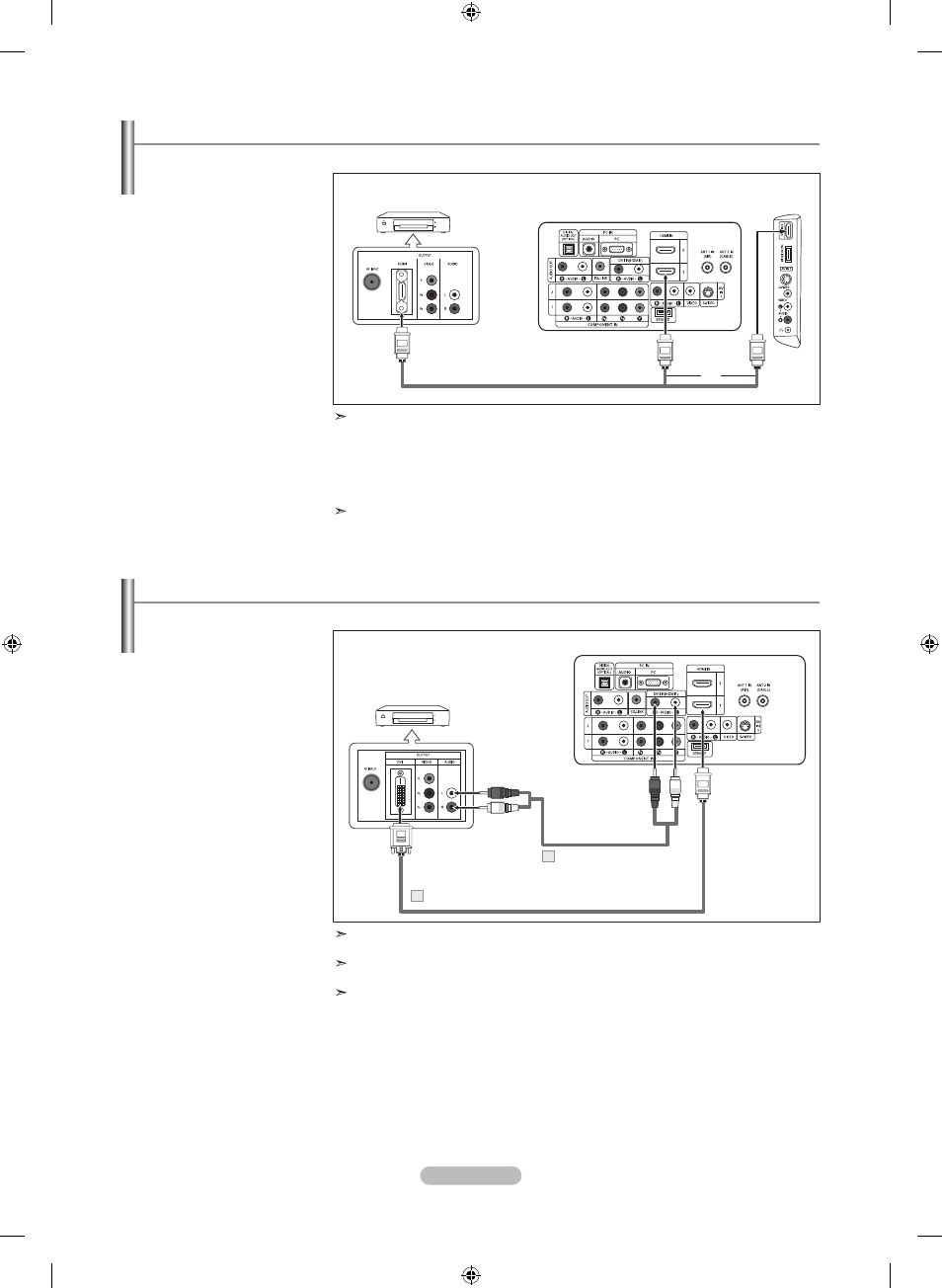

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI
This connection can only be made if there is an HDMI Output connector on the external device.
1. Connect an HDMI Cable
between the HDMI IN (1,2 or 3)
jack on the TV and the HDMI
jack on the DVD Player or
Cable Box/�atellite receiver
(�et-Top Box)
DVD Player or Cable Box/Satellite receiver
(Set-Top Box) Rear Panel
TV Rear Panel
HDMI Cable (Not supplied)
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI
This connection can only be made if there is a DVI Output connector on the external device.
1. Connect a DVI to HDMI
Cable or DVI-HDMI Adapter
between the HDMI IN 1 jack
on the TV and the DVI jack
on th DVD Player or Cable
Box/�atellite receiver (�et-
Top Box)
2. Connect Audio Cables
between the DVI IN (HDMI 1)
[R-AUDIO-L] jack on the TV
and the DVD Player or Cable
Box/�atellite receiver (�et-
Top Box)
�ach DVD Player or Cable Box/�atellite receiver (�et-Top Box) has a different back panel
configuration.
When connecting a DVD Player or Cable Box/�atellite receiver (�et-Top Box), match the color of
the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 1 jack.
TV Rear Panel
DVD Player or Cable Box/
Satellite receiver (Set-Top Box)
Audio Cable (Not supplied) 2
DVI to HDMI Cable (Not supplied) 1
TV Side Panel
or
What is HDMI?
• HDMI(High-Definition Multimedia Interface), is an interface that
enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in
size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature
installed
�ach DVD Player or Cable Box/�atellite receiver (�et-Top Box) has a different back
panel configuration.
