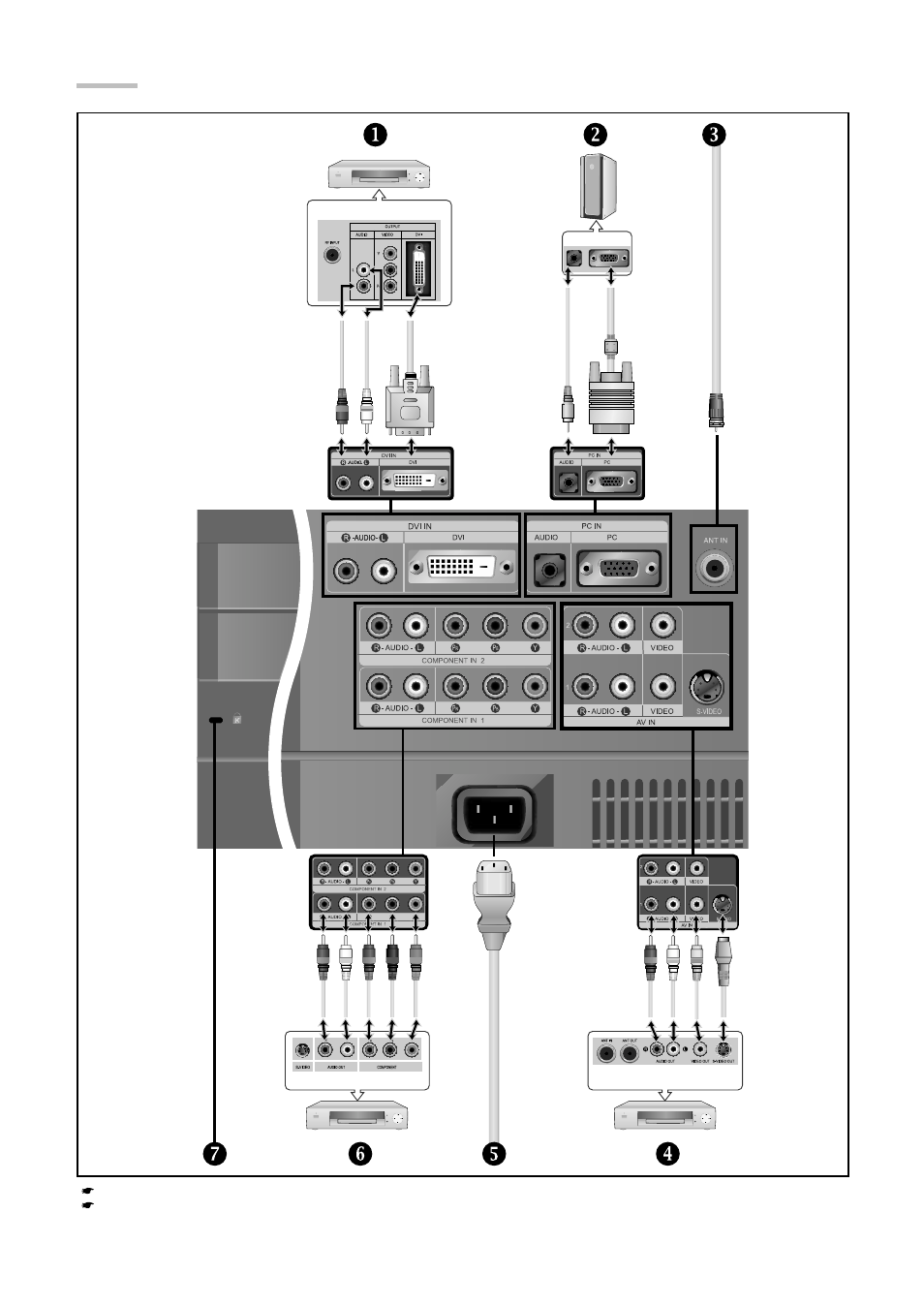

Aspecto general del panel de conexiones
Cada vez que conecte un dispositivo externo al televisor, compruebe que la unidad esté desconectada de la alimentación.
Cuando conecte un dispositivo externo, debe hacer coincidir los colores del terminal de conexión y del cable.
Panel trasero del VCR
Panel posterior del reproductor de DVD
PC
reproductor de DVD/descodificador
V
erde
Azul
Rojo
Amarillo
Blanco
Rojo
Rojo
Blanco
Rojo
Blanco
