REATTACHING THE REFRIGERATOR DOORS

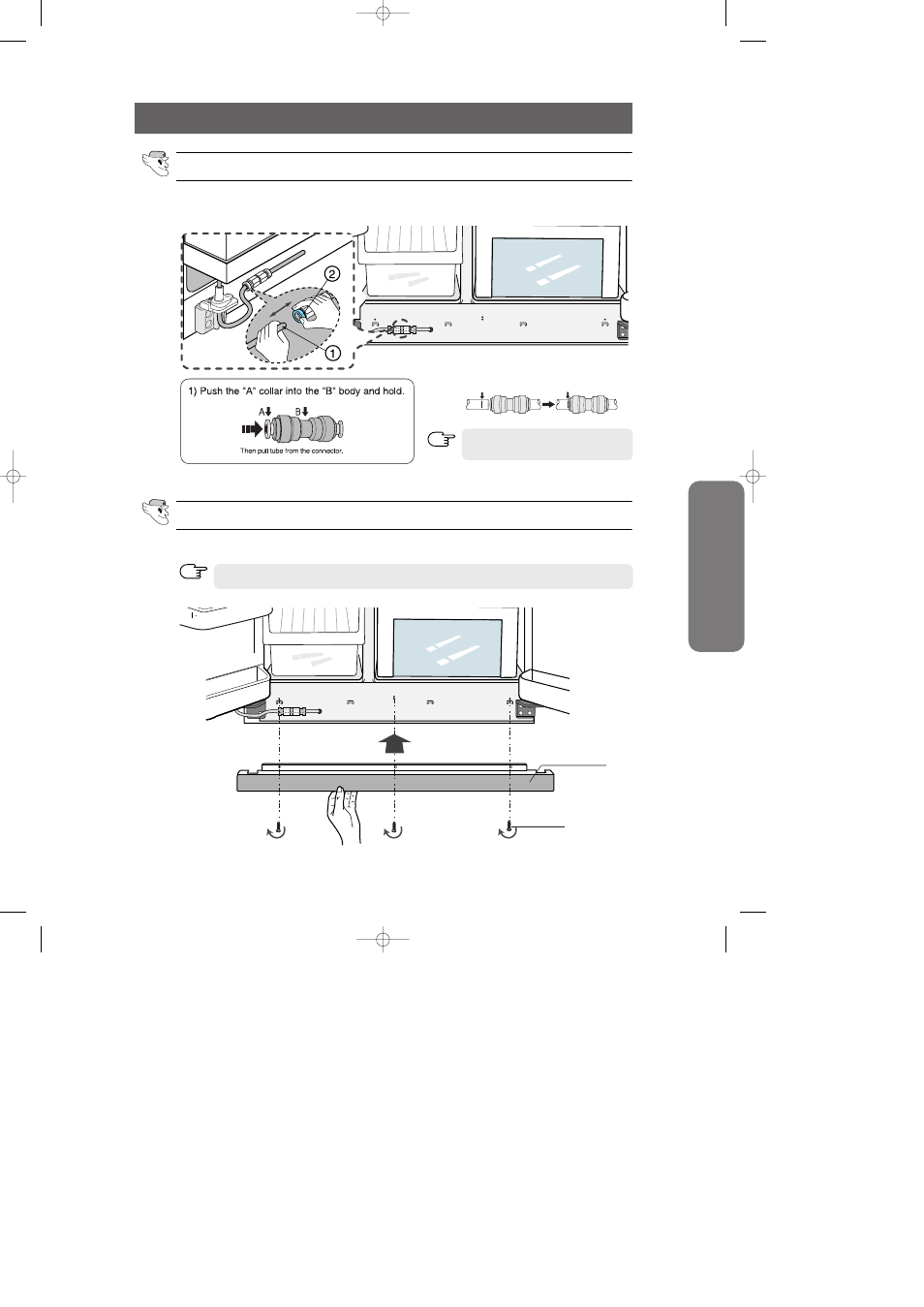

While pressing the front face of coupler (

➁), insert the water line (➀) in the coupler.

Carefully place front cover and push to snap it into position.

Reattaching the Water Supply Line

Reattaching the Front Leg Cover

FRONT LEG COVER

NOTE

Tube must be fully inserted to the
marked line to avoid leaks.

NOTE

Before reattaching, check the water connector for leakage.

SCREW

Put on the front leg cover by turning the three screws clockwise, as shown in the figure.
