Reattaching the Freezer Door

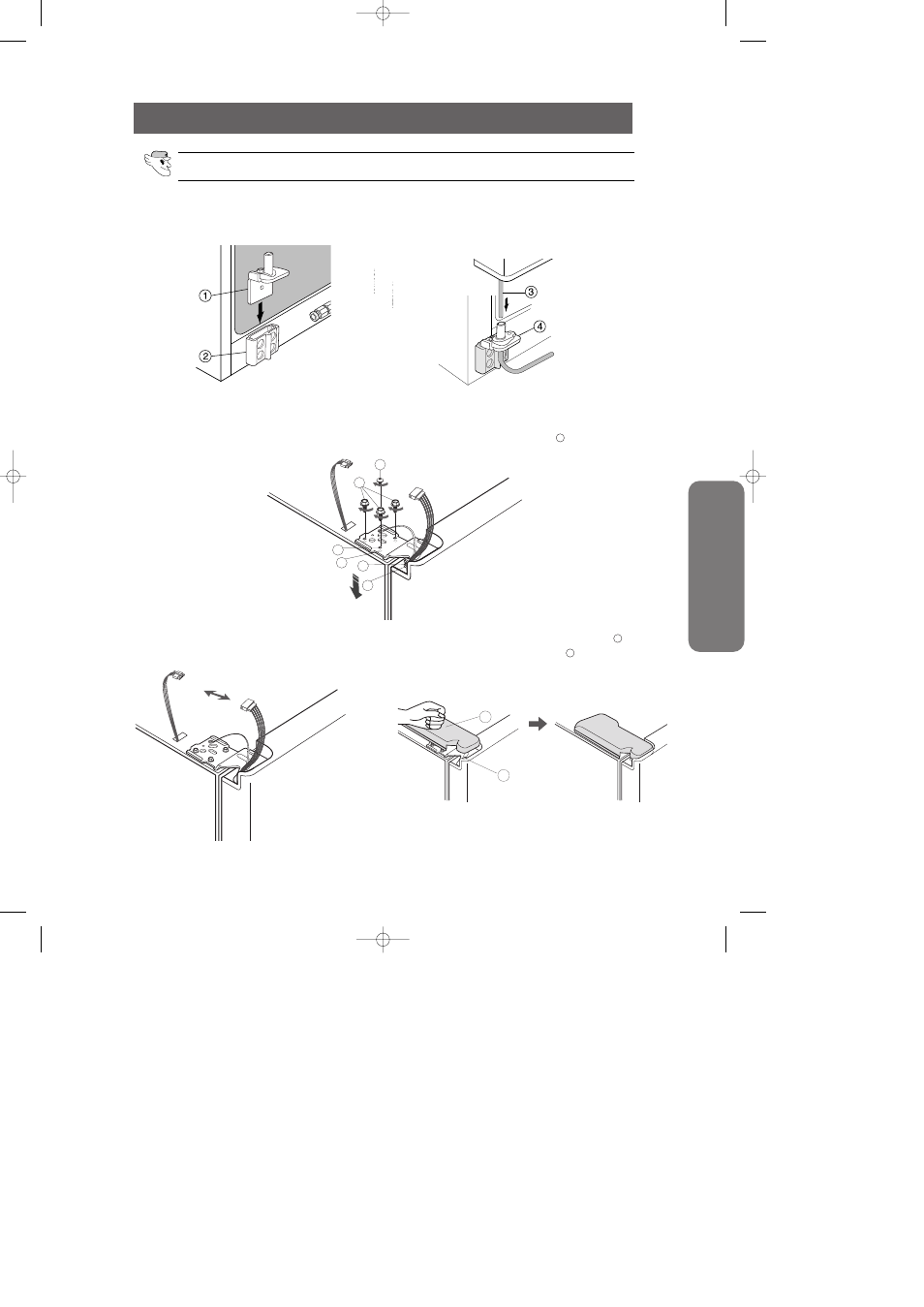

REATTACHING THE REFRIGERATOR DOORS
4) Connect the wires. 5) Put the front part of the upper hinge cover ( ) on
the front part of the upper hinge ( ) and reattach
from the front part of the upper hinge cover first.
9
10
3) Insert the upper hinge shaft ( ➄) into the hole on the top of the door (➅). After levelling between the upper
hinge hole ( ➆) and cabinet hole (➇), reattach the hinge screws (⑨) and ground screw ( ) in the
clockwise direction.
9
10
10
1) Insert the lower hinge ( ➀) in the bracket (➁). 2) Before reattaching the freezer door, insert the
hose ( ➂) in the lower side of the door into the hole
in the lower hinge ( ➃) and pull the hose down.
Lower the door onto the lower hinge ( ➃).
