26
English
Connections
This section describes various methods of connecting the Control Unit to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connecting the Speakers

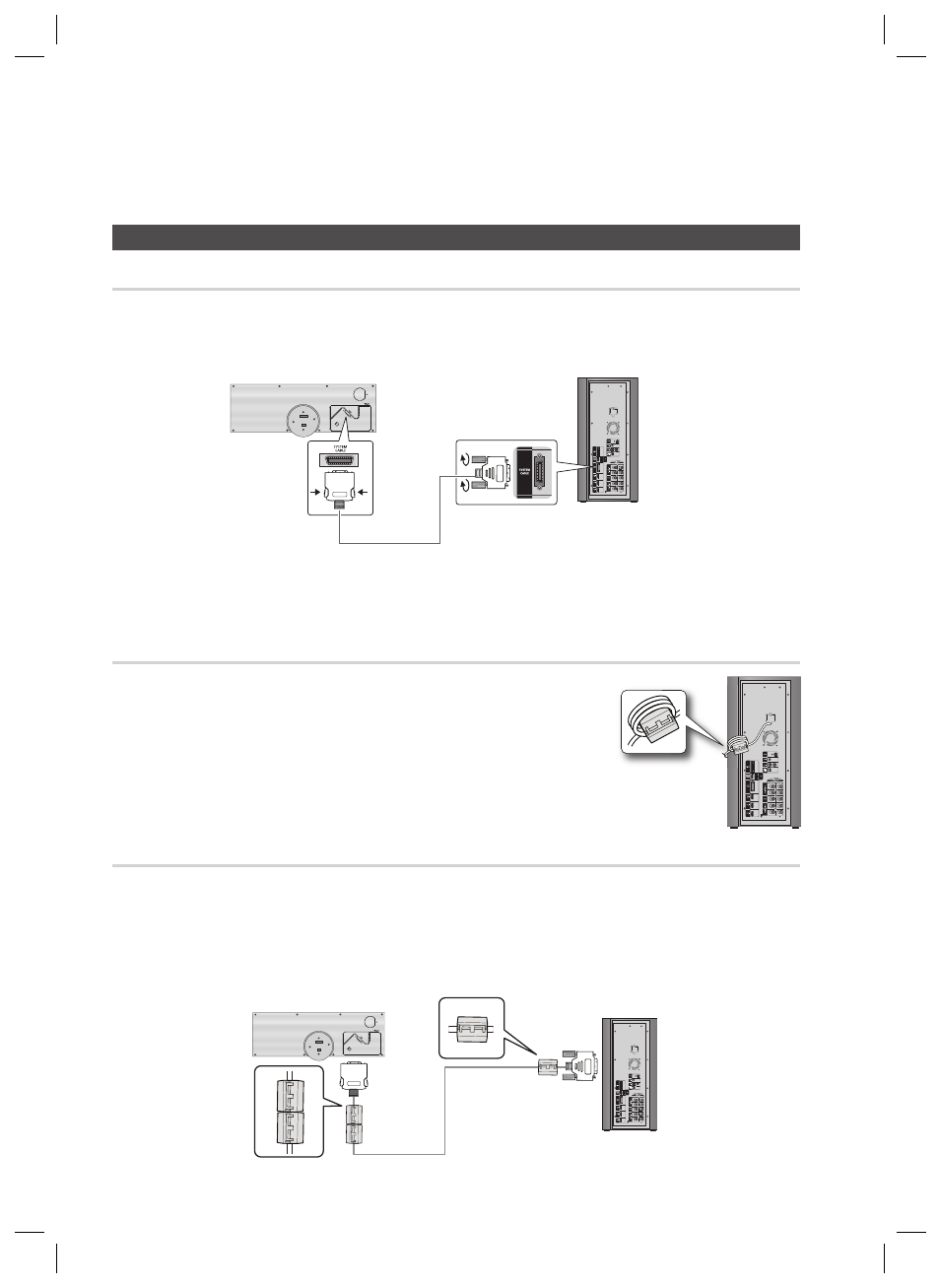

Connecting the Subwoofer
To activate the product, you must connect the subwoofer to the Control Unit using the system
cable. Most of external connections including the power supply, speakers, and TV are made
through the subwoofer.
CAUTION
Do not plug or unplug the system cable when the power cord is plugged in. You can damage the
product.
Attaching the Toroidal Ferrite Core to the Power Cord of the Subwoofer
Attaching a Toroidal ferrite core to the power cord of the Subwoofer,
helps prevent RF interference from radio signals.
Pull the fi xing tab of the Toroidal ferrite core to open it.
Make three loops in the power cable of the subwoofer.
Attach the Toroidal ferrite core to the Subwoofer power cord as the fi gure
shows, and then press the core until it clicks.
Attaching the Toroidal Ferrite Core to the System Cable
Pull the fi xing tabs of three Toroidal ferrite cores to open them.
Place two cores on one end of the system cable, and one core on the other end of the system
cable. Then, close each core and press it until you hear a click.
- Do not make loops around the core with the system cable as you did with the power cord.
Simply attach each core, close it, and then press it until it clicks.
!

1.
2.
3.
1.
2.
