24
English
Getting Started

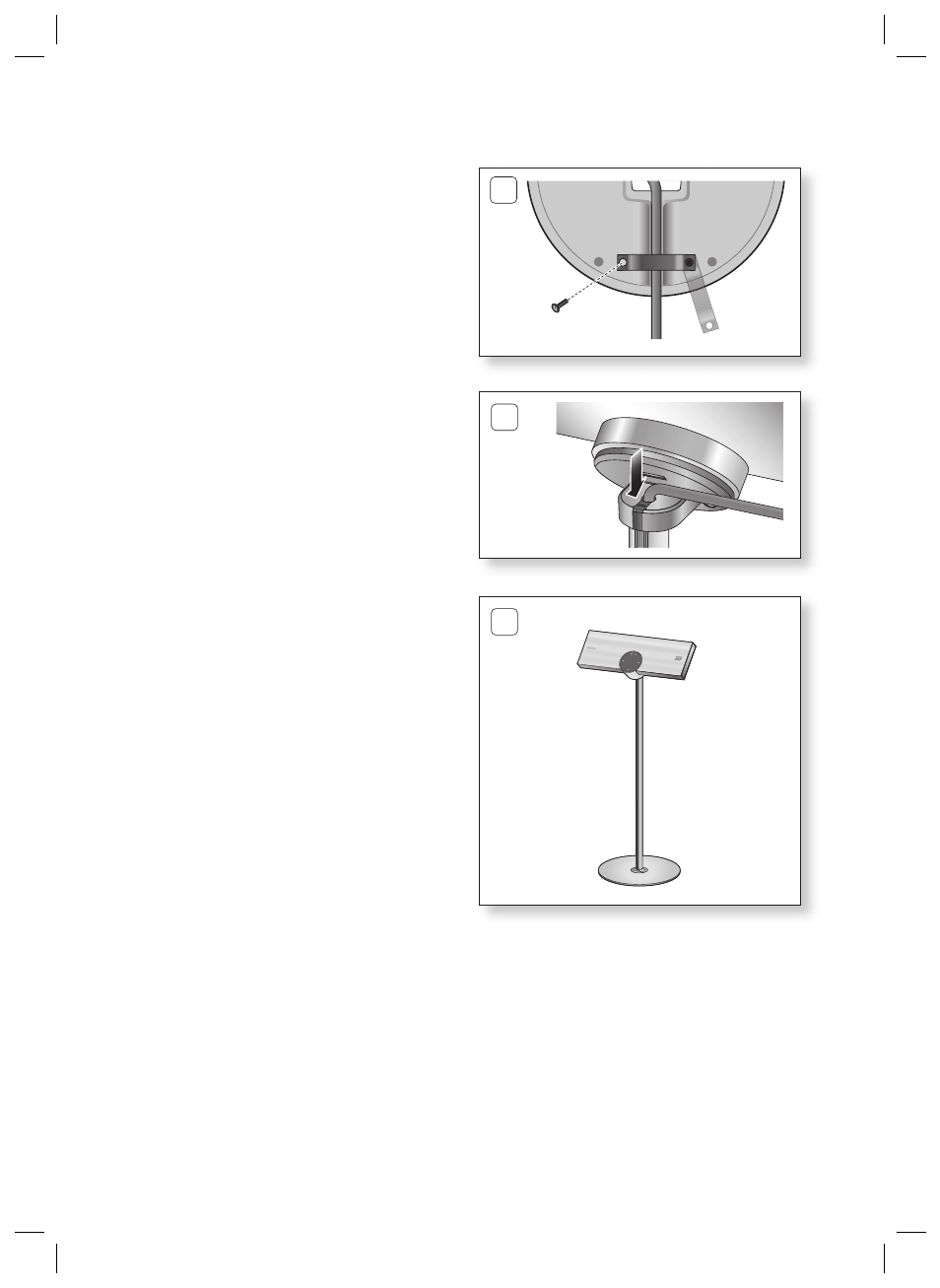

Tip the stand slightly, and then press the cable
on the bottom into the notch in the stand base
bottom.
- Loosen the screw on one end of the cable
bracket on the bottom of stand base and turn
the cable bracket aside. Arrange the system
cable so it will pass under the bracket, and
then turn the cable bracket back to its original
position. Tighten it down with the screw.
12.
Insert the Pole Holder into the notch at the top
of the stand pole.
- The Pole Holder holds the cable in place. 13.
13
14
Diagram 14 shows the Control Unit installed
properly on the Tallboy type of stand. 14.
12
