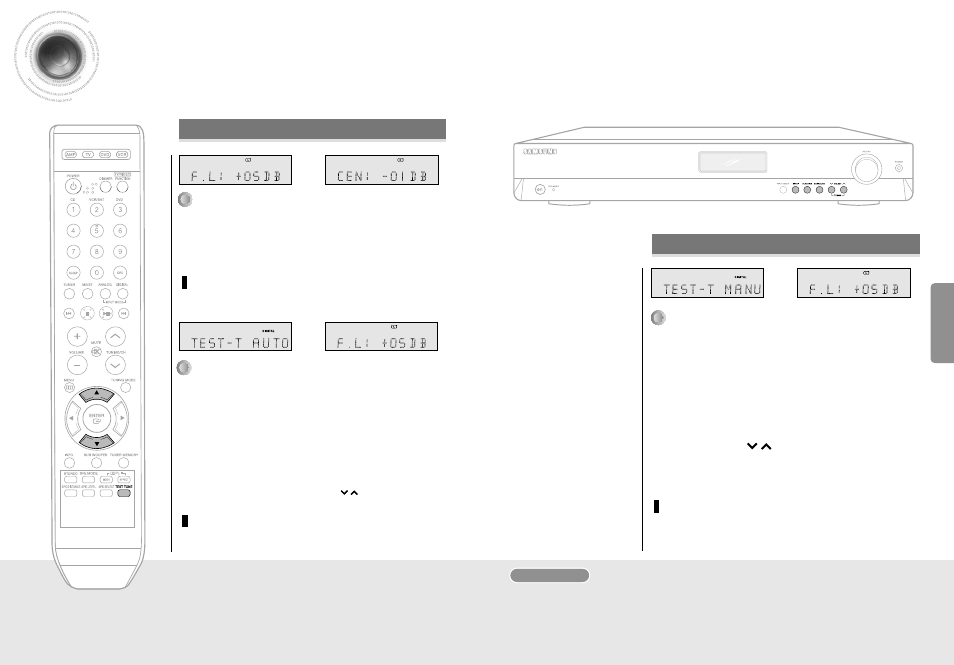

Test Tone
Use test tone to check the speaker connection status or level.
Press TEST TONE button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝ S.R
➝ S.L ➝ S.W.
• During test tone output, press …† button to adjust the speaker output level
from -10 to +10 dB by 1 step.
To Stop Test Tone
• Press TEST TONE button again.
√
To Automatically Output Test Tone
REMOTE CONTROL
OPERA
TION
Press SETUP button.
• “SETUP MODE” appears on the display and enters into Setup Mode.
Press FUNCTION button 5 times.
• “TEST-T AUTO” appears in the display.
Press SURROUND button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝
S.R ➝ S.L ➝ S.W .
• During test signal output, press SELECT ( ) button to adjust the speaker
output level from -10 to +10 dB by 1 step.
√
MAIN UNIT
1
2
3
To Stop Test Tone
Press SETUP button 1 time.
• “SETUP MODE OFF” appears on the display and test tone stops.
,
• F.L (Front-Left) : -10 ~ +10dB
• CEN (Center) : -10 ~ +10dB
• F.R (Front-Right) : -10 ~ +10dB
• S.R (Surround-Right) : -10 ~ +10dB
• S.L (Surround-Left): -10 ~ +10dB
• S.W (Subwoofer): -10 ~ +10dB
Test Tone Output
Press SETUP button.
• “SETUP MODE” appears on the display and the unit enters into Setup Mode.
Press FUNCTION button 6 times.
• “TEST-T MANU” appears in the display.
Press SURROUND button.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.L ➝ S.W will
be selected in turn.
Press SELECT( ) button to set the test tone as you
want.
• You can adjust the speaker output level from -10 to +10dB by 1 step.
• The sound gets quieter at -10dB and louder at +10dB.
√
To Manually Output Test Tone
MAIN UNIT
1
2
4
3
To Stop Test Tone
Press SETUP button 1 time.
• “SETUP MODE OFF” appears on the display and test signal stops.
,
