12_ Setting up
Setting up your French Door Refrigerator
12

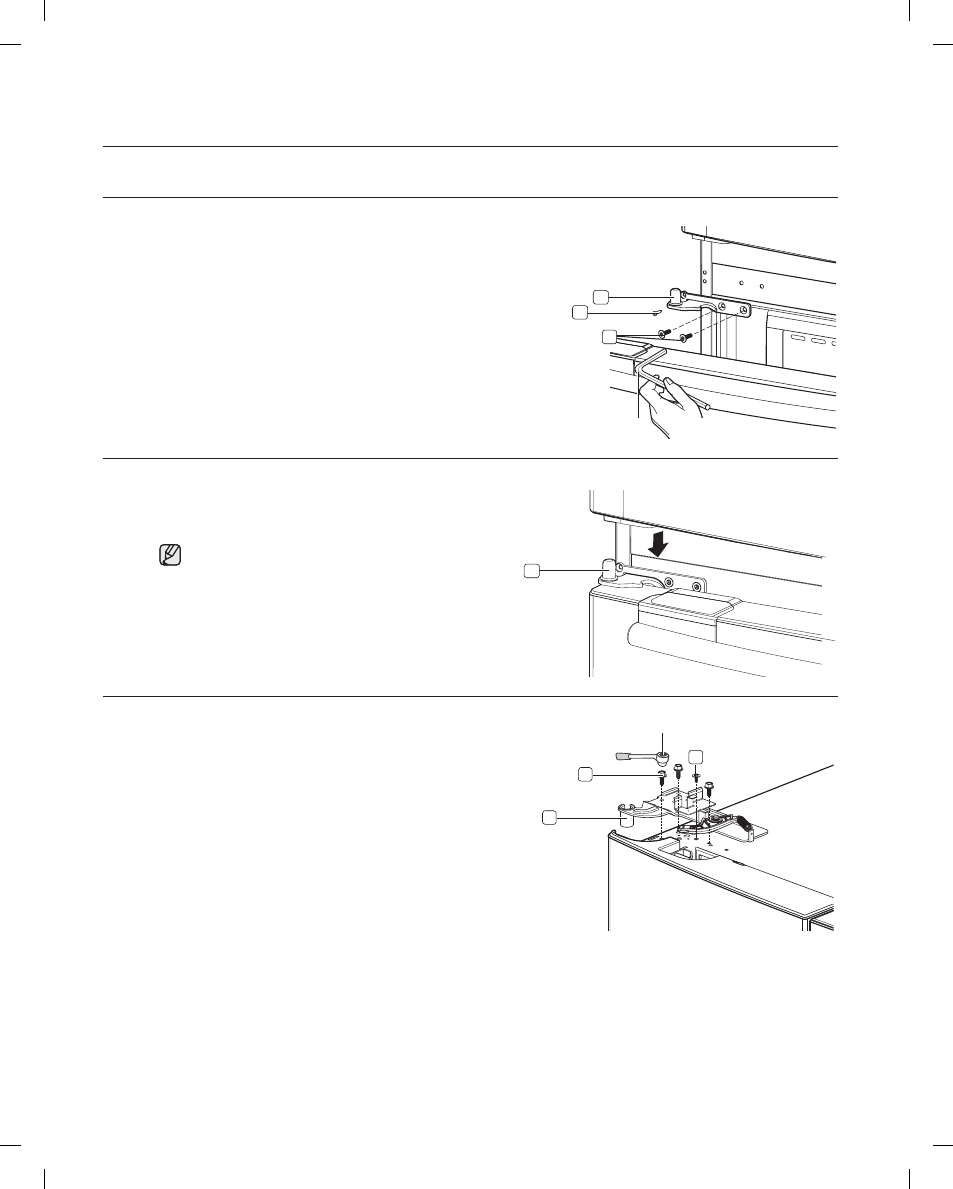

Assemble the Refrigerator doors
1. Reattach the lower left and right door hinges ( 12 ).
With a Philips head screwdriver, insert and tighten the
screw (
10 ) into the lower left and right door hinges.
With a allen wrench(3/16”), insert and tighten the 2
hex head bolts (
11 ) into the lower left and right door
hinges.
2. Place the hole in the bottom of the door over the door
hinge ( 12 ).
3. Insert the upper hinges ( 9 ) into the holes at the top
of the doors.
Insert and tighten the 3 hex head bolts ( 7 ) into
the upper left and right door hinges with a socket
wrench(7/16”).
Insert and tighten the ground screw ( 8 ) into the
upper left and right door hinges with a philips
screwdriver(+).
REAttACHing tHE REFRigERAtoR DooRs
12
10
11
Allen wrench
7
8
9
socket wrench
Be careful not to miss the hinge cap because it
can be easily taken off.
