| 16
English
Connections

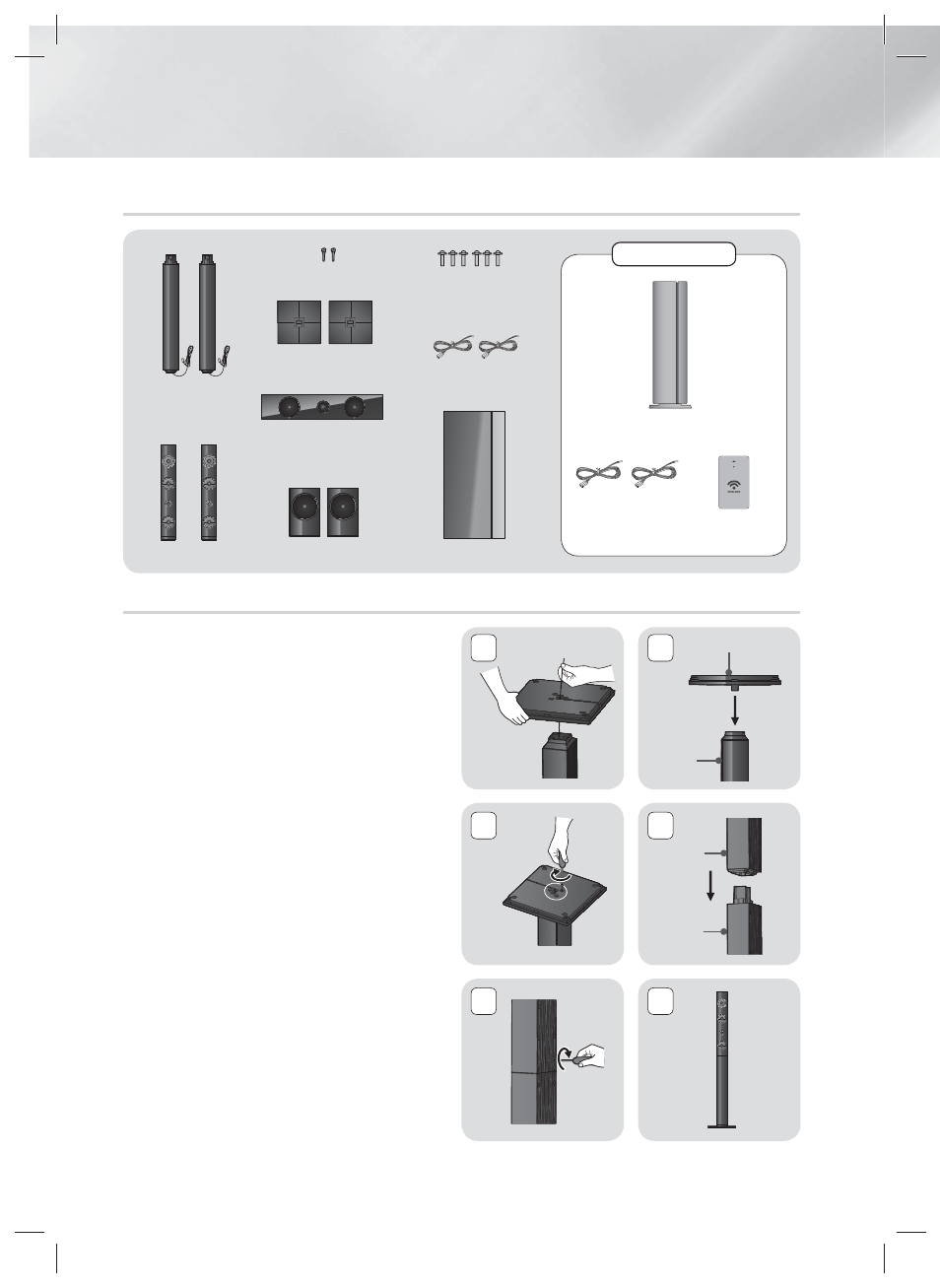

Speaker Components
Installing the Speakers on the Tallboy Stand
1. Straighten the speaker cable and put it into
the hole on the Stand Base.
2. Turn the Stand Base upside-down and
connect it to the Stand.
3. Use the driver to combine the screws (5x20)
on the 3 marked holes.
4. Connect the upper Speaker to the assembled
Stand.
5. Insert a screw (5x15) clockwise into the
hole on the rear of the speaker using a
screwdriver.
6. This is the appearance after the speaker is
installed.
Follow this steps to install other speaker.
(L) (R)
SURROUND
CENTER
SUBWOOFER
SPEAKER CABLE
SWA-5000
Wireless Receiver Module
TX Card
Speaker
Cable (2EA)
FRONT/FRONT TOP
STAND
SCREW (5 X 20): 6EA
SCREW (5 X 15): 2EA
STAND BASE
(L) (R)
5
2
4
6
1
3
Stand Base
Stand
Speaker
Stand
