| 12
English
Getting Started

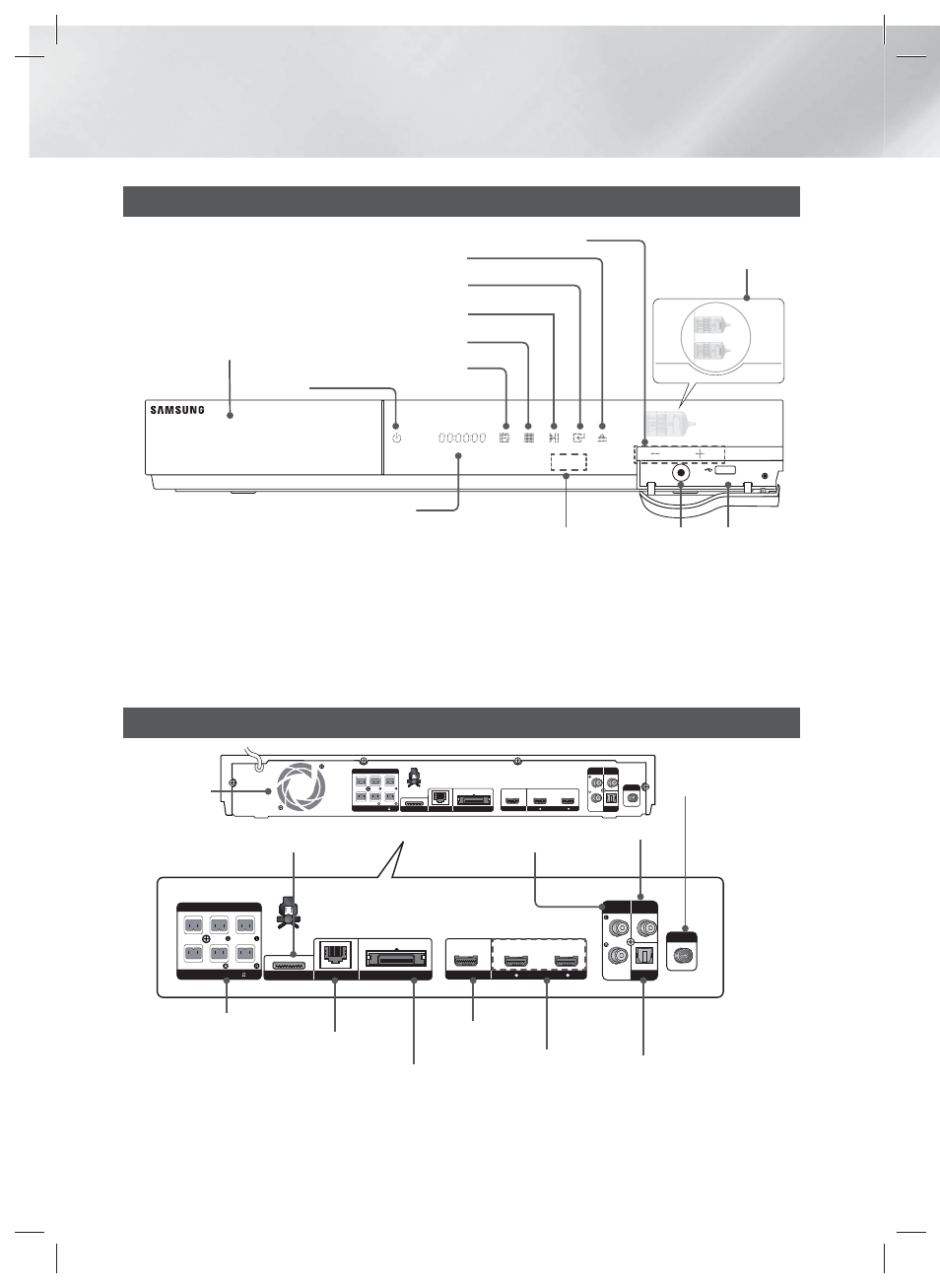

Front Panel
5V 500mA
ASC IN
DISC TRAY
ASC IN USB HOST
VOLUME CONTROL
POWER
DISPLAY
STOP
VACUUM
TUBE AMP
PLAY/PAUSE
ENTER
OPEN/CLOSE
FUNCTION
REMOTE CONTROL SENSOR
| NOTE |
\ If Cellular phone or mobile device is near vacuum tube amp, or put other electronic products on the top of the product would
cause noise from the audio.
\ Please be careful that children do not touch the product's surface When the set is on working. It would be hot.
\ To upgrade the product's software through the USB Host jack, you must use a USB memory stick.
\ When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the 6 button on the product or
the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the E button.
Rear Panel
FRONT FRONT TOP
SPEAKERS OUT
SUBWOOFER
CENTER FRONT FRONT TOP
SPEAKER IMPEDANCE : 3 DIGITAL AUDIO IN
OPTICAL
FM ANT
VIDEO OUT AUX IN
LAN iPod WIRELESS HDMI IN 2 1 HDMI OUT
FRONT FRONT TOP
SPEAKERS OUT
SUBWOOFER
CENTER FRONT FRONT TOP
SPEAKER IMPEDANCE : 3 DIGITAL
AUDIO IN
OPTICAL
FM ANT
VIDEO
OUT
AUX
IN
LAN iPod WIRELESS HDMI IN 2 1 HDMI OUT
LAN TERMINAL
iPod
COOLING FAN
TX CARD CONNECTION
(WIRELESS)
EXTERNAL DIGITAL
AUDIO IN (OPTICAL)
HDMI IN
HDMI OUT
FM ANTENNA
SPEAKER OUTPUT
CONNECTORS
VIDEO OUT
AUX IN
| NOTE |
\ Maintain a minimum of 4 inches of clear space on all sides of the home theater to ensure adequate ventilation. Do not
obstruct the cooling fan or ventilation holes.
