12_ Installing your washer
With optional pedestal base or stacking kit

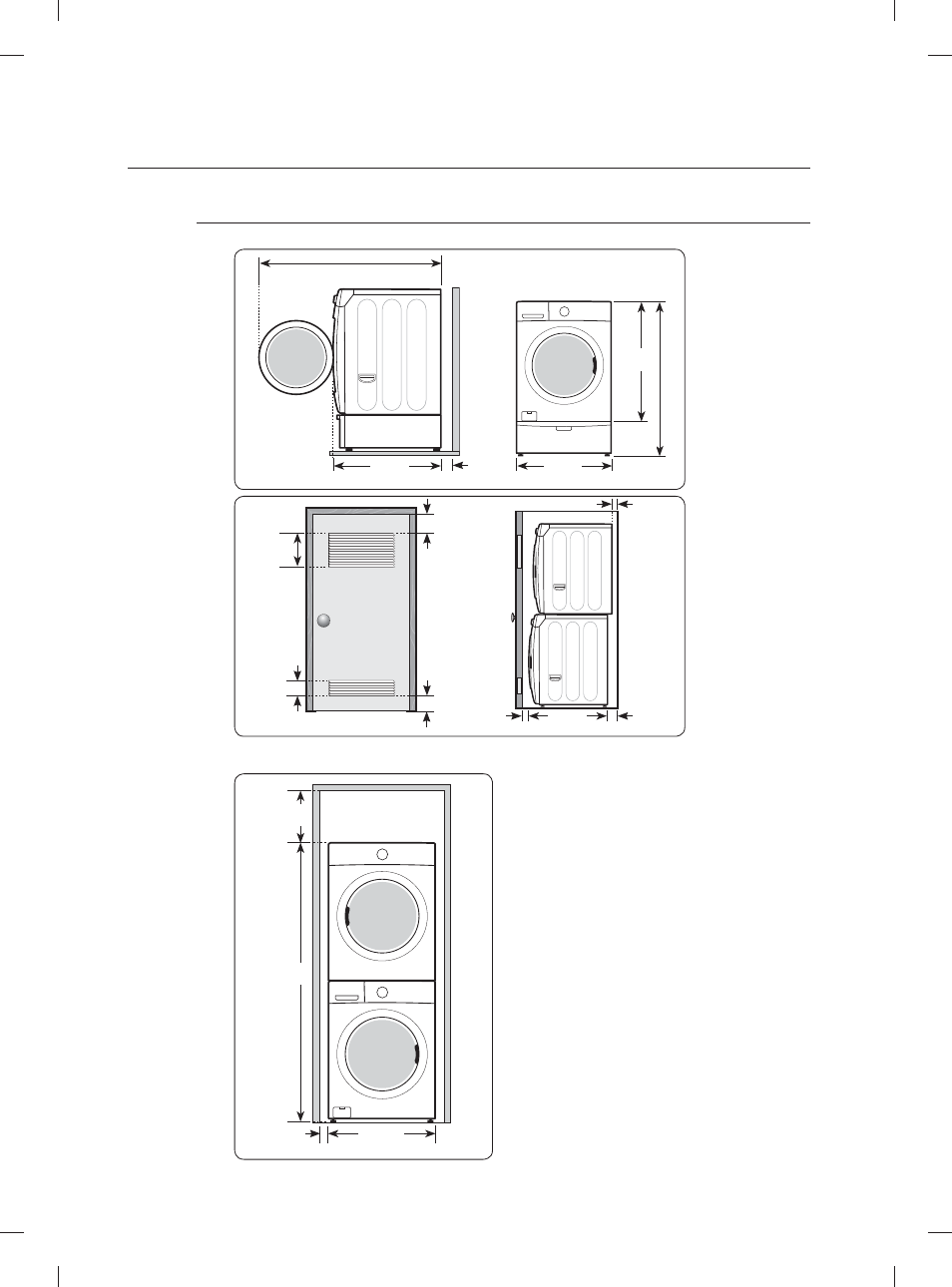

Required Dimensions for Installation With Pedestal
Required Dimensions for Installation With Stacking Kit
installing your washer
341.1 in.
(86.5 cm)
5.9 in.
(15 cm)
51.7 in. (131.4 cm) to clear open door
27 in.
(68.6 cm)
39 in.
(99.1 cm)
53.6 in.
(136.2 cm)
31.9 in.
(81.1 cm)
3 in.
(7.6 cm)
Closet or Door
48 in.² *
(310 cm²)
3 in.
(7.6 cm)
24 in.² *
(155 cm²)
1 in.
(2.5 cm)
5.9 in.**
(15 cm)
5 in.
(12.7 cm)
6 in. *
(15.2 cm)
1 in.
(2.5 cm)
78 in.
(198.1 cm)
27 in.
(68.6 cm)
* Required spacing
** External exhaust elbow requires
additional space.
