description

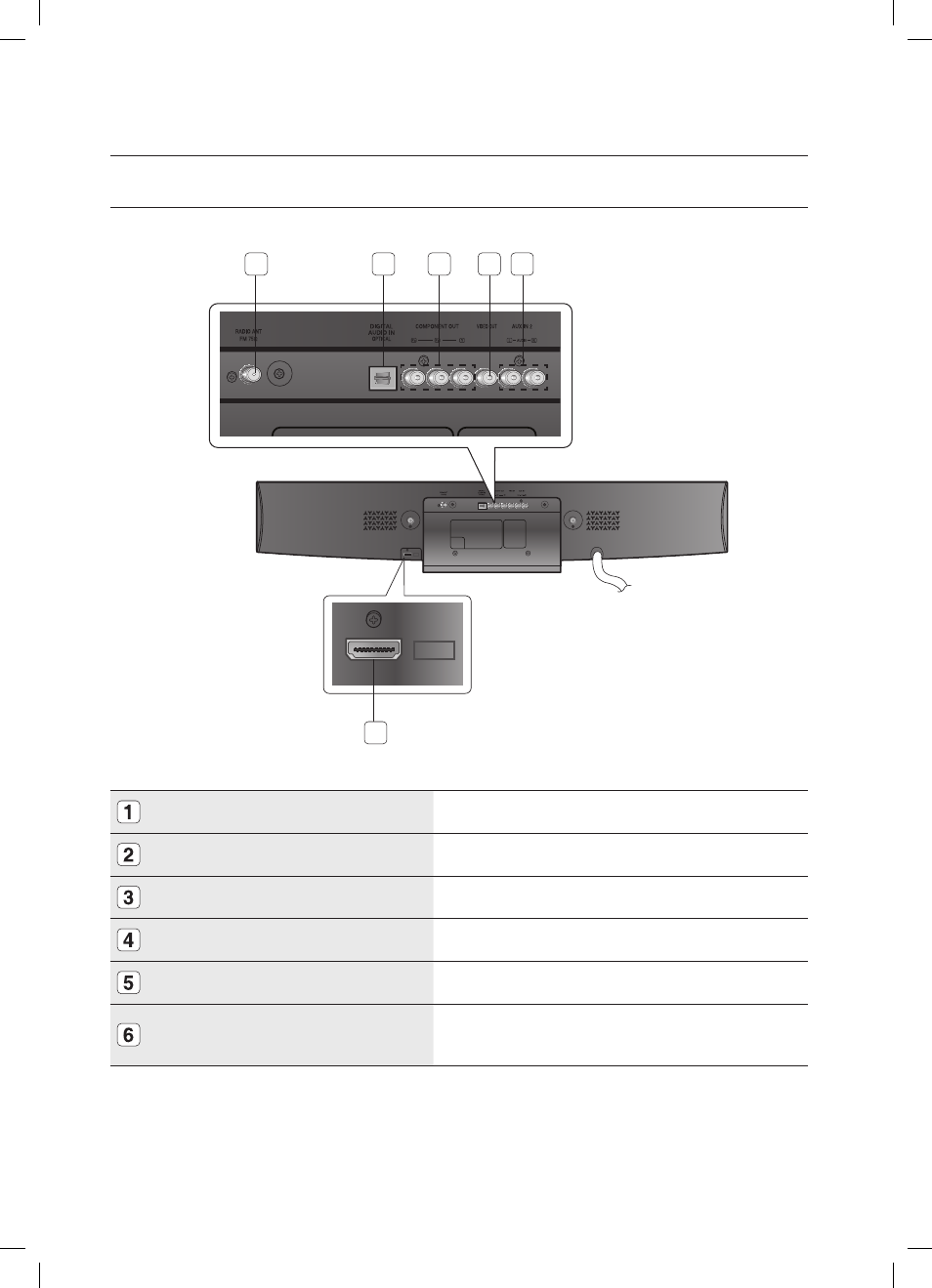

rEAr PANEl
FM 75Ω COAXIAL JACK Connect the FM antenna.
EXTERNAL DIGITAL OPTICAL INPUT JACK Use this to connect external equipment capable of digital output.
COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.
VIDEO OUTPUT JACK Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
AUX IN 2 JACKS Connect to the 2CH analog output of an external device (such as a VCR)
HDMI OUT JACK
Using an HDMI cable, connect this HDMI output terminal to the HDMI
input terminal on your TV for the best quality picture.
HDMI OUT
HDMI OUT
