Connections

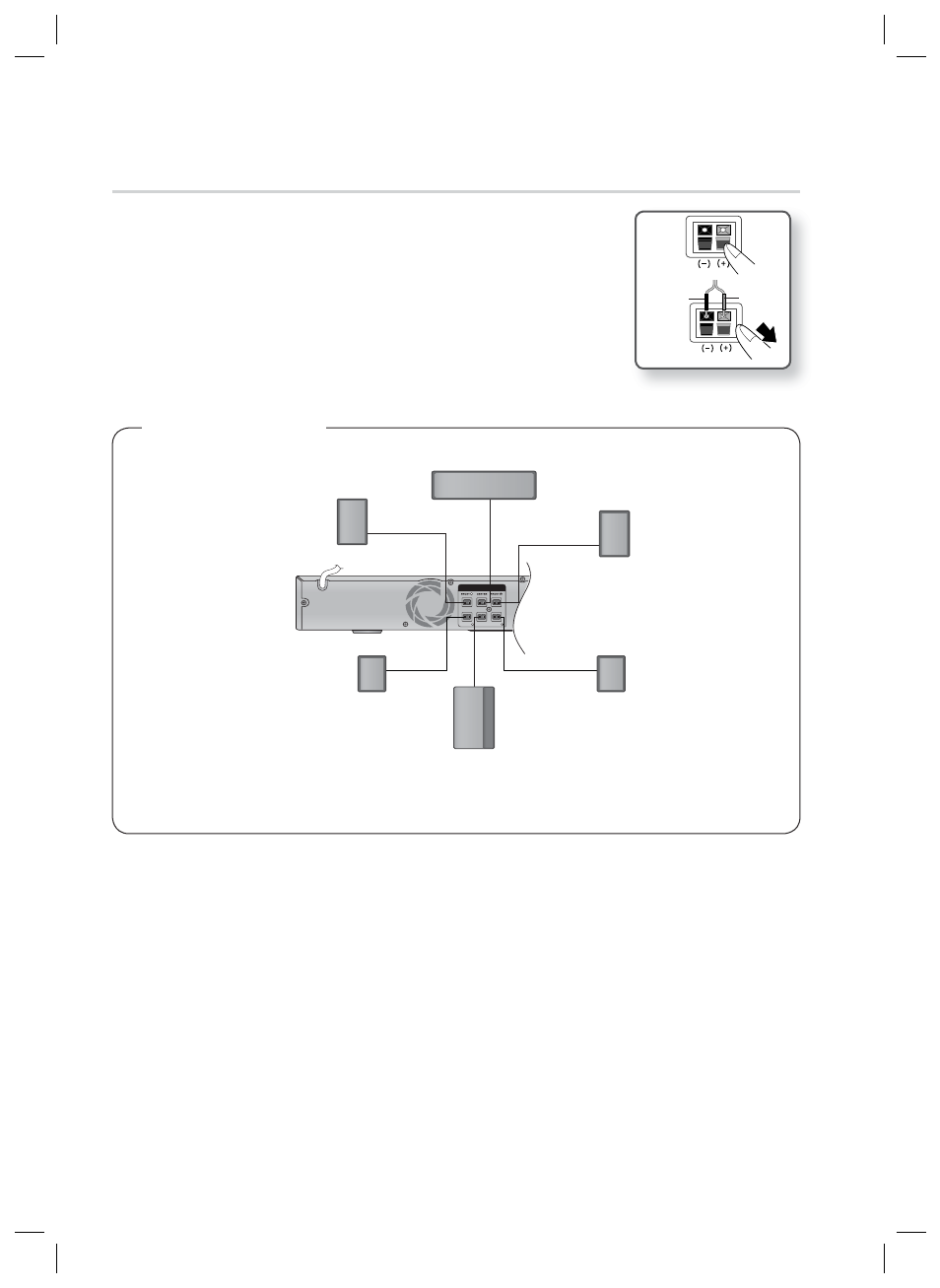

Connecting The Speakers
Press down the terminal tab on the back of the speaker.
(HT-D553/HT-D555 only)
Insert the black wire into the black terminal (–) and the red wire into the red
terminal (+), and then release the tab. (HT-D553/HT-D555 only)
Connect the connecting plugs to the back of the product by matching the
colors of the speaker plugs to the speaker jacks.
1.
2.
3.
Black Red
In case of HT-D550
SURROUND SUBWOOFER SURROUND
SPEAKERS OUT
Front Speaker (R)
Subwoofer
Surround Speaker (R) Surround Speaker (L)
Front Speaker (L)
Center Speaker
* Refer to page 16 for the HT-D553/D555 speakers.
